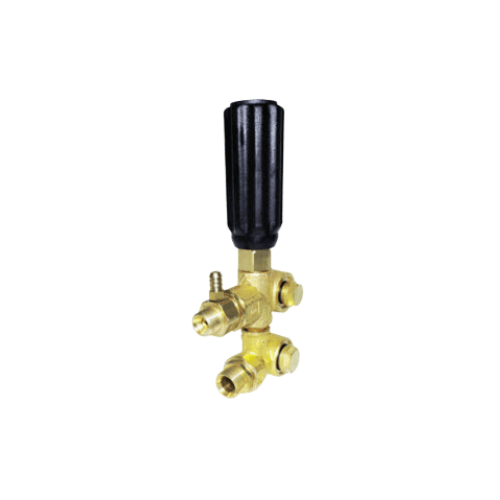

AR22206 | VR35 ID Unloader Valve, 4000 PSI

AR22206 VR35 ID Unloader Valve | 4000 PSI Pressure Washer Bypass Valve

The AR22206 is a heavy-duty automatic bypass unloader valve from
Annovi Reverberi’s VR35 ID (Improved Design) series, rated for
pressures up to 4,000 PSI and engineered for professional pressure
washer systems operating in demanding commercial and industrial environments. The
AR22206 VR35 ID unloader valve functions as both the primary
pressure regulator and the system safety device — maintaining set working pressure
during active spraying and instantly redirecting flow into bypass when the trigger
gun is released, preventing dangerous pressure buildup in the pump, hose, and
downstream components.

The VR35 ID Improved Design bypass architecture is the defining advantage of this
valve — smoother pressure transitions during rapid on/off trigger cycling reduce
the pressure surging, hose whip, and system shock that standard unloader valves
produce in high-frequency professional cleaning applications. For contractors,
industrial operators, and OEM skid builders who run systems at 4,000 PSI through
long daily shifts with frequent trigger cycling, the AR22206
delivers the consistent pressure control, pump protection, and service longevity
that professional systems require.

AR22206 VR35 ID Key Specifications

Valve Configuration and Performance Ratings

• Model: AR22206
• Series: VR35 ID (Improved Design)
• Maximum Pressure: 4,000 PSI — rated for professional
  contractor and industrial pressure washer systems at full
  working pressure
• Valve Type: Automatic bypass unloader — shifts
  instantly to bypass when trigger gun is released, eliminating
  dangerous pressure buildup
• Primary Function: Pressure regulation during active
  spraying combined with smooth bypass transition on
  trigger release
• Bypass Architecture: VR35 ID Improved Design —
  reduces pressure surging and system shock during
  rapid trigger cycling
• Body Construction: Reinforced valve body for
  continuous-duty operation at 4,000 PSI
• Internal Components: Precision-machined with
  industrial-grade seals for consistent performance and
  extended service intervals
• Threading: Standard industry threading for
  straightforward integration into existing pressure
  washer plumbing
• Pressure Adjustment: Adjustable control mechanism
  for fine-tuning to match pump output and
  application requirements
• Use Cases: Contractor rigs, industrial wash systems,
  OEM skid builds, and facility maintenance operations

How the AR22206 VR35 ID Unloader Valve Works

Pressure Regulation and Bypass Protection in One Component

The AR22206 VR35 ID unloader valve performs two critical functions
simultaneously in every professional pressure washer system. During active spraying,
the valve maintains the set working pressure by continuously balancing system flow
and resistance — delivering consistent, accurate pressure regulation across a wide
range of flow rates and nozzle configurations up to the rated 4,000 PSI ceiling.

When the operator releases the trigger gun, water flow is instantly redirected into
bypass mode — protecting the pump, hose, seals, and fittings from the dangerous
pressure spikes that would otherwise build rapidly in a closed system. Without a
properly functioning unloader valve, trigger release events create hydraulic shock
that damages pump packings, fatigues hose fittings, and accelerates valve seat wear
across every start/stop cycle in the operating shift.

The VR35 ID Improved Design architecture specifically addresses
the pressure surging that standard bypass unloaders produce during rapid on/off
cycling — a critical issue in high-frequency professional cleaning applications
where operators trigger constantly across a shift. Smoother pressure transitions
mean less hose whip at the lance, less vibration transmitted to fittings and
couplings, and reduced hydraulic fatigue on every component downstream of the
pump. Over a full operating season, the AR22206’s improved bypass behavior
translates directly into longer seal life, fewer fitting failures, and more
predictable system performance.

AR22206 Construction and Durability

VR35 ID Build Quality for 4,000 PSI Professional Service

• Reinforced valve body: designed and tested for
  continuous operation at the full 4,000 PSI pressure rating — not
  a consumer-grade component uprated to professional pressure, but
  an industrial valve built for professional
  duty from the ground up
• Precision-machined internal components: ensure
  smooth piston movement, consistent bypass actuation, and reliable
  pressure regulation across the operating pressure range without
  hunting or oscillation
• Industrial-grade seals: minimize internal leakage
  and extend service intervals in systems with long daily runtimes
  and frequent trigger cycling at 4,000 PSI
• Corrosion-resistant materials: provide durability
  in outdoor contractor environments and chemical wash applications
  where moisture, detergents, and environmental exposure are
  constant factors
• Serviceable design: internal components are
  accessible for routine maintenance, seal replacement, and
  inspection — minimizing downtime for contractors and facilities
  that depend on continuous system availability at
  4,000 PSI

AR22206 VR35 ID Installation and Adjustment

Integrating the AR22206 into Professional Pressure Washer Systems

• Standard industry threading: the AR22206 integrates
  directly into existing pressure washer plumbing without specialty
  fittings or custom adapters — straightforward installation for
  OEM builders and field service technicians
• Adjustable pressure control: the external adjustment
  mechanism allows fine-tuning of set pressure to match pump output,
  nozzle selection, and application requirements — set correctly for
  the system before putting into service
• Set pressure at rated system flow: always adjust the
  AR22206 with the correct nozzle installed and the trigger gun open
  at operating flow — setting pressure with the gun closed or a
  mismatched nozzle produces inaccurate regulation
• Verify bypass temperature: in extended bypass
  operation, water recirculating through the unloader heats up —
  ensure bypass flow is routed to tank or dissipated appropriately
  to protect pump inlet temperature and seal integrity
• Check for hunting after installation: slight
  pressure oscillation during active spraying indicates the adjustment
  spring tension needs fine-tuning — adjust in small increments
  until pressure stabilizes at the set point
• Inspect seals at first sign of external leakage:
  the AR22206’s serviceable design allows seal replacement without
  full valve replacement — address weeping early to prevent
  pressure loss and downstream system inconsistency

AR22206 Priority Applications

Where the VR35 ID Improved Design Delivers the Most Value

• Contractor pressure washer rigs: trailer and
  skid-mounted contractor systems running 4,000 PSI across long
  daily shifts where frequent trigger cycling makes smooth bypass
  transitions critical for hose, fitting, and pump longevity
• Industrial cleaning systems: manufacturing plants,
  processing facilities, and heavy-use environments where the AR22206
  provides reliable pressure regulation and pump protection across
  demanding continuous-duty operating schedules
• High-pressure wash bays: fixed installations with
  long daily runtimes and high trigger cycling frequency where
  standard unloader valves produce excessive surging and
  premature system wear
• OEM skid unit builds: system builders requiring a
  proven, consistent 4,000 PSI unloader valve with standard threading
  and adjustable set pressure for repeatable integration across
  production pressure washer builds
• Municipal and facility maintenance: warehouse,
  campus, and public infrastructure cleaning operations where
  system reliability, reduced maintenance calls, and consistent
  pressure control across operator shifts matter
• Fleet washing operations: high-cycle wash bays
  cleaning vehicles daily where the VR35 ID bypass smoothness
  reduces hose whip and fitting fatigue across hundreds of
  trigger events per shift

AR22206 VR35 ID Key Benefits

Why Professional Operators Choose the AR22206 Over Standard Unloader Valves

• Pump protection at every trigger release: the AR22206
  instantly redirects flow to bypass on gun closure, eliminating the
  pressure spikes that damage pump packings, fatigue valve seats, and
  accelerate seal wear across thousands of daily
  trigger cycling events
• VR35 ID Improved Design reduces surging: smoother
  bypass transitions directly reduce hose whip, vibration, and
  fitting fatigue versus standard unloader valve designs — the
  difference is noticeable in high-frequency trigger cycling
  professional applications
• Consistent pressure regulation across flow conditions:
  accurate, repeatable pressure control across a wide range of flow
  rates and nozzle configurations — operators get the same working
  pressure whether running a single wide-angle tip or a
  narrow-jet surface cleaner
• Extended system component life: smoother bypass
  behavior protects not just the pump but every component downstream —
  hose assemblies, swivel couplings, lance fittings, and spray guns
  all benefit from reduced hydraulic shock at
  every trigger event
• Serviceable for long-term field use: precision
  internal components and industrial-grade seals can be replaced in
  the field without full valve replacement — lower long-term
  maintenance cost for contractors and facilities
  running multiple systems
• Proven Annovi Reverberi engineering: the VR35 ID
  series reflects over 60 years of AR pump and valve engineering —
  factory-tested and trusted by OEMs and contractors worldwide in
  professional pressure washer systems
• Backed by WSHPWR: application support, system
  compatibility guidance, and parts availability for the AR22206
  and the complete Annovi Reverberi VR valve family

The AR22206 VR35 ID unloader valve delivers reliable
4,000 PSI pressure regulation and smooth automatic bypass
protection for professional contractor rigs, industrial wash systems, and
OEM pressure washer builds — Annovi Reverberi’s Improved Design architecture
where smooth bypass transitions, consistent pressure control, and pump protection
across high-frequency trigger cycling are required. Contact WSHPWR for current
pricing, availability, and system compatibility guidance.
