SRMW24G28-EZ-SX LH Vertical EZ Pump | 2.4 GPM 2800 PSI

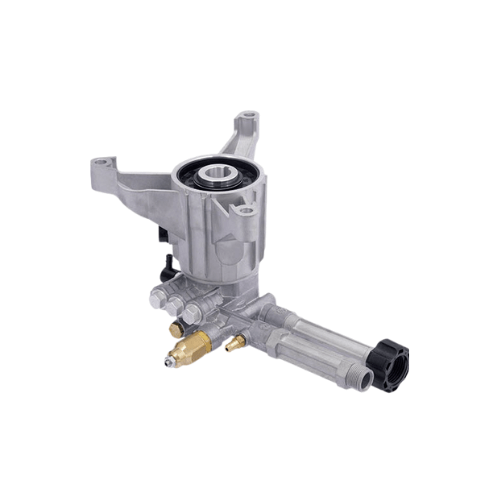

SRMW24G28-EZ-SX Annovi Reverberi Vertical Pressure Washer Pump – 2.4 GPM, 2800 PSI

• The SRMW24G28-EZ-SX is a reinforced axial cam vertical-drive pressure washer pump
  engineered for reliable power and long-term durability.
• Delivers 2.4 GPM at 2,800 PSI at 3,400 RPM, providing an ideal balance of flow
  and pressure for residential, commercial, and light industrial cleaning.
• Designed for gas-powered pressure washers using a 7/8″ left-hand vertical shaft, making it a
  direct upgrade or replacement for compatible OEM units.
• Equipped with EZ Start assist, a factory-installed thermal relief valve,
  integrated unloader, and a built-in detergent injector for user-friendly, safe
  operation.
• Features a maintenance-free synthetic oil crankcase for low-upkeep, high-value performance.

Key Specifications

• Model: SRMW24G28-EZ-SX
• Flow Rate: 2.4 GPM (gallons per minute)
• Maximum Pressure: 2,800 PSI
• Operating Speed: 3,400 RPM
• Pump Type: Axial cam, direct-drive, reinforced SRMW heavy-duty design
• Drive Orientation: Vertical-drive configuration
• Shaft Size: 7/8″ left-hand vertical shaft for gas engines
• EZ Start Assist: Reduces static back pressure for smooth, easy startups
• Thermal Relief Valve: Factory-installed for overheating protection (approx. $30 value)
• Unloader Valve: Integrated with manual pressure adjustment
• Soap Injector: Built-in chemical detergent injection system
• Crankcase: Maintenance-free, pre-filled with premium synthetic oil

What’s Included with the Pump

• Pre-filled crankcase with premium synthetic oil for maintenance-free lubrication and immediate use
  out of the box.
• Factory-installed thermal relief valve (TRV) to protect against overheating during bypass operation.
• Integrated unloader valve with manual pressure control for easy adjustment of cleaning power.
• Built-in chemical soap injector for detergent-assisted cleaning of grease, oil, mold, and mildew.
• Instruction manual and schematic with detailed parts diagram for installation and service reference.
• Note: Mounting bolts are not included and should be sourced separately to match the engine and frame.

How the SRMW24G28-EZ-SX Works

• Uses a direct-drive axial cam system to convert engine power into high-pressure water flow with
  minimal energy loss.
• Hardened pistons and stainless-steel valves maintain consistent pressure and resist wear in regular
  use.
• EZ Start assist reduces static back pressure at startup, lowering pull resistance and engine strain.
• The integrated unloader controls working pressure and diverts water to bypass when the trigger is
  released, protecting the pump and system components.
• The thermal relief valve automatically purges overheated water during extended bypass, helping
  prevent seal and valve damage.
• The built-in detergent injector allows soaps and chemicals to be drawn into the water stream for
  enhanced cleaning performance.

Benefits of the SRMW24G28-EZ-SX

• Enhanced cleaning power: 2.4 GPM at 2,800 PSI provides strong output for demanding jobs while
  remaining manageable on common surfaces.
• Heavy-duty construction: Reinforced SRMW internals and housing deliver long service life under
  frequent use.
• Easy startups: EZ Start technology reduces engine load and operator effort during pull-start.
• Built-in protection: Thermal relief valve and unloader system help prevent overheating and
  over-pressurization.
• Low maintenance: Pre-filled synthetic oil crankcase eliminates routine oil changes and simplifies
  ownership.
• Detergent-ready cleaning: Integrated soap injector supports deep-cleaning tasks involving grease,
  oil, mold, and mildew.
• Left-hand vertical shaft design: Direct-fit replacement for compatible OEM vertical pumps requiring
  a 7/8″ left-hand drive.

Typical Applications

• Residential cleaning: Driveways, decks, patios, fences, siding, brick, and outdoor furniture.
• Vehicle washing: Cars, trucks, motorcycles, ATVs, boats, and small fleet vehicles.
• Light commercial jobs: Storefronts, sidewalks, signage, and business exteriors.
• Agricultural maintenance: Farm machinery, implements, and tools.
• Property upkeep: Small contractors, landscapers, and maintenance crews needing dependable cleaning
  power.

Why Choose the SRMW24G28-EZ-SX?

• Balanced performance: Higher 2.4 GPM flow and 2,800 PSI pressure deliver faster, more efficient
  cleaning than lighter-duty vertical pumps.
• Engineered durability: Reinforced SRMW vertical-drive design is built for long-term reliability in
  demanding real-world use.
• Quick installation: Designed as a direct upgrade or OEM replacement for 7/8″ left-hand
  vertical-shaft gas engines.
• Operator-friendly features: EZ Start, integrated unloader, TRV, and soap injector simplify daily
  operation and improve safety.
• Low total cost of ownership: Maintenance-free lubrication, durable components, and built-in
  safeguards help extend service life and reduce downtime.

SEO-Optimized Summary

• The Annovi Reverberi SRMW24G28-EZ-SX Vertical Pressure Washer Pump delivers
  2.4 GPM at 2,800 PSI at 3,400 RPM with a 7/8″ left-hand vertical
  shaft, EZ Start system, factory-installed thermal relief valve,
  integrated unloader, and a built-in soap injector.
• Ideal for residential, commercial, and agricultural applications, this reinforced SRMW vertical
  pump offers high cleaning power, low maintenance, and
  long-lasting durability.
• Upgrade your pressure washer with the SRMW24G28-EZ-SX for a pump that is
  engineered to perform, built to last, and designed to make every cleaning
  job easier and more effective.
