RTX85 | 22.5 GPM 3000 PSI Pump 1450 RPM 30mm Industrial

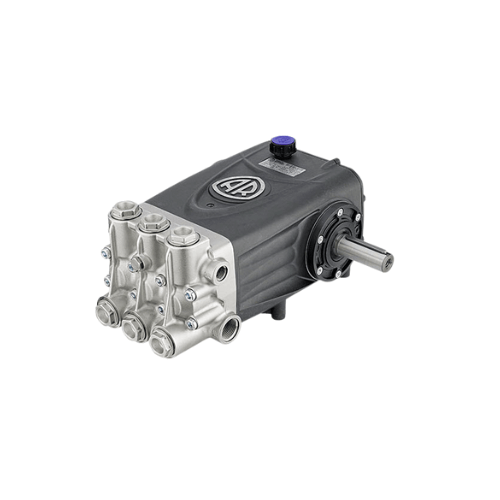

AR RTX85 Industrial Pump Overview

The AR RTX85 industrial pump by Annovi Reverberi is engineered for professional wash systems that demand
high water volume, dependable mid-range pressure, and true continuous-duty reliability. Producing
22.5 GPM at 3,000 PSI while operating at a slow and efficient 1,450 RPM, the RTX85 is designed
to deliver consistent cleaning performance across long operating cycles without excessive heat buildup or mechanical stress.

This pump is part of the proven RTX Series, a platform trusted globally in industrial and commercial environments where uptime
is critical. The combination of high flow and controlled pressure makes the RTX85 especially well suited for applications
such as food processing washdowns, sanitation bays, truck and fleet wash stations, agricultural facilities, and trailer-mounted
or skid-based wash systems. Its robust 30mm solid keyed shaft provides excellent torque handling and compatibility
with commercial belt-drive and coupling-drive systems.

Manufactured in Italy to Annovi Reverberi’s industrial standards, the RTX85 reflects decades of pump engineering focused on
longevity, serviceability, and predictable performance. Every design choice—from slow-speed operation to material selection—
is intended to reduce downtime and extend service life in demanding environments.

Key Specifications

• Flow Rate: 22.5 GPM for high-volume wash and rinse cycles
• Pressure: 3,000 PSI providing strong yet controlled cleaning power
• Operating Speed: 1,450 RPM slow-speed industrial duty
• Shaft Size: 30mm solid keyed shaft for heavy-duty drive integration
• Pump Type: Industrial-duty triplex plunger pump
• Construction: Forged brass manifold, bronze connecting rods, ceramic plungers, stainless-steel valves
• Lubrication: Oil-bath crankcase with sight glass and vented dipstick
• Warranty: 5-year commercial-use warranty with U.S.-based support

What’s Included with the RTX85 Pump

• Factory pre-filled break-in oil for immediate installation
• Oil sight glass for fast visual oil-level monitoring
• Vented dipstick for proper crankcase ventilation and simplified oil service
• Owner’s manual with operating guidelines and maintenance procedures
• Detailed service schematic for parts identification and rebuilds
• Factory performance test documentation verifying flow and pressure output
• 5-year commercial warranty supported by U.S.-based service centers

How the RTX85 Works

• Triplex plunger design uses three ceramic plungers phased to reduce pulsation.
• High-volume output of 22.5 GPM supports rapid coverage of large surfaces.
• 3,000 PSI pressure level delivers effective cleaning without excessive surface damage.
• 30mm solid keyed shaft transfers torque reliably from belt or coupling drive systems.
• Ceramic plungers resist heat, abrasion, and chemical exposure.
• Stainless-steel valves maintain consistent sealing under continuous-duty cycling.
• Oversized bearings reduce friction and stabilize shaft alignment under load.
• Slow-speed 1,450 RPM operation minimizes vibration, noise, and internal wear.

Benefits of the RTX85

• High Capacity Flow: 22.5 GPM supports large wash bays, tank cleaning, and fleet operations.
• Controlled Pressure: 3,000 PSI balances cleaning strength with surface protection.
• Industrial Durability: Forged brass head, bronze rods, and stainless valves extend service life.
• Stable Drive Platform: 30mm keyed shaft handles high torque without slippage.
• Low-Speed Efficiency: Reduced heat and vibration improve long-term reliability.
• Simplified Maintenance: Sight glass and vented dipstick allow quick inspections.
• Component Protection: Pulse-reduced output helps protect hoses, unloaders, and valves.
• Warranty Coverage: 5-year commercial warranty supports long-term ownership planning.

Applications

• Food Processing Plants: Handles frequent caustic washdown cycles.
• Truck & Fleet Wash Stations: High flow ideal for buses, trailers, and heavy vehicles.
• Sanitation Bays: Suitable for indoor and outdoor industrial sanitation systems.
• Trailer-Mounted Rigs: Proven performance in mobile wash applications.
• Municipal Facilities: Supports wastewater treatment and public works cleaning.
• Agriculture & Livestock: Reliable for barns, equipment, and processing areas.

Why Choose the RTX85

• Combines high-volume output with controlled industrial pressure.
• Designed specifically for continuous-duty operation.
• Built with premium industrial materials for long service life.
• Compatible with commercial 30mm keyed shaft drive systems.
• Runs cooler and quieter due to slow-speed operation.
• Backed by a comprehensive 5-year commercial warranty.

Conclusion

The AR RTX85 industrial pump delivers a dependable combination of 22.5 GPM at 3,000 PSI with the
durability of a 30mm solid keyed shaft and slow-speed 1,450 RPM operation. Built with forged brass,
ceramic plungers, stainless valves, and oversized bearings, it is engineered for demanding industrial environments
where uptime and performance matter most. Factory-tested, shipped ready to install, and backed by a 5-year commercial
warranty, the RTX85 is a proven solution for professionals who require reliable, high-volume cleaning power day after day.
