RTX50 | 13 GPM 4350 PSI Pump 1450 RPM 30mm Solid Shaft

RTX50 | 13 GPM 4350 PSI Pump 1450 RPM 30mm Solid Shaft

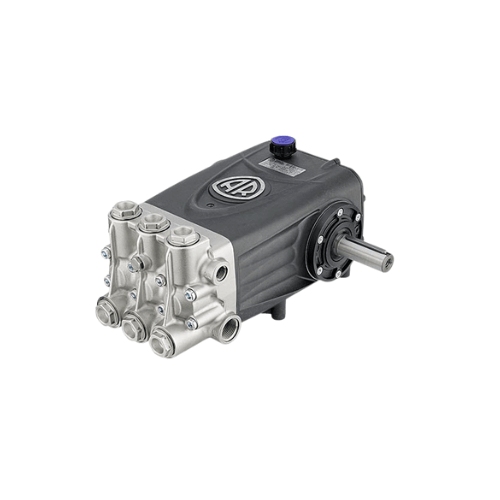

The Annovi Reverberi RTX50 is a high-performance industrial triplex plunger pump engineered
for operators who require extreme pressure, substantial water volume, and dependable continuous-duty operation.
Delivering 13 GPM at 4,350 PSI while running at a slow and efficient 1,450 RPM, the RTX50
is designed to handle the most demanding cleaning and surface-preparation tasks without sacrificing reliability
or service life.

Positioned within Annovi Reverberi’s heavy-duty RTX Series, the RTX50 fills a critical role for applications that
require higher pressure than traditional wash pumps while still maintaining meaningful flow for productivity.
Its 30mm solid keyed shaft provides exceptional torque stability and compatibility with commercial
belt-drive systems, gear reducers, and electric motor couplings. This makes the RTX50 an ideal choice for
truck-mounted rigs, skid systems, fixed wash bays, and specialty industrial installations.

Manufactured in Italy to strict industrial standards, the RTX50 reflects Annovi Reverberi’s long-standing focus
on durability, thermal control, and serviceability. Every component—from the forged brass manifold to the
ceramic plungers and oversized bearings—is selected to withstand high stress, extended run times, and harsh
operating environments.

Key Specifications

• Flow Rate: 13 GPM supporting high-impact cleaning and blasting applications
• Maximum Pressure: 4,350 PSI for aggressive surface removal and industrial cleaning
• Operating Speed: 1,450 RPM slow-speed industrial duty cycle
• Shaft: 30mm solid keyed shaft for high-torque drive systems
• Pump Type: Industrial-duty triplex plunger pump
• Construction: Forged brass manifold, bronze connecting rods, stainless steel valves, ceramic plungers
• Lubrication: Oil-bath crankcase with sight glass and vented dipstick
• Warranty: 5-year commercial-use warranty with U.S.-based support

What’s Included with the RTX50 Pump

• Factory pre-filled break-in oil for immediate installation
• Oil sight glass for fast visual oil-level inspection
• Vented dipstick for proper crankcase ventilation and easy oil changes
• Owner’s manual with operating and maintenance guidelines
• Detailed parts and service schematic
• Factory performance test report verifying flow and pressure output
• 5-year commercial warranty supported by U.S. service centers

How the RTX50 Works

The RTX50 employs a precision triplex plunger system that uses three ceramic plungers phased
to minimize pulsation and deliver smooth, consistent pressure. This design protects downstream components
such as hoses, unloaders, and spray guns while improving operator control during high-pressure operation.

Producing 13 GPM at 4,350 PSI, the RTX50 strikes an effective balance between cutting power
and productivity. The ceramic plungers provide excellent resistance to heat and abrasion, while stainless
steel valves maintain reliable sealing under repeated high-pressure cycles. Oversized bearings support
shaft stability and reduce friction, allowing the pump to run cooler during long duty cycles.

The 30mm solid keyed shaft allows the RTX50 to integrate seamlessly with belt-drive systems,
electric motors, or gear reducers commonly used in industrial wash equipment. Operating at 1,450 RPM,
the pump experiences significantly less mechanical stress compared to high-speed designs, resulting in
longer service intervals and reduced overall maintenance costs.

Benefits of the RTX50

• Extreme Performance: 4,350 PSI delivers serious cutting power for blasting and surface prep.
• High-Flow Support: 13 GPM maintains productivity during demanding cleaning tasks.
• Heavy-Duty Shaft: 30mm keyed shaft handles high torque loads without slippage.
• Industrial Materials: Forged brass, bronze rods, ceramic plungers, and stainless valves ensure durability.
• Slow-Speed Reliability: 1,450 RPM operation reduces heat, vibration, and wear.
• Service-Friendly Design: Sight glass and vented dipstick simplify routine maintenance.
• Long-Term Ownership: Backed by a comprehensive 5-year commercial warranty.

Applications

• Concrete Blasting & Surface Removal: Effective for coating removal, graffiti, and heavy buildup.
• Fleet & Truck Washing: High pressure and flow for large vehicles and equipment.
• Shipyard & Marine Maintenance: Handles saltwater exposure and heavy degreasing.
• Industrial Surface Preparation: Prepares steel and concrete for coating or repair.
• Heavy-Duty Wash Bays: Ideal for municipal, commercial, and industrial wash stations.

Why Choose the RTX50

• Delivers one of the strongest PSI-to-GPM combinations in its class.
• Compact yet rugged enough for truck-mounted and fixed installations.
• Designed specifically for continuous-duty industrial environments.
• Factory-tested and shipped ready for installation.
• Includes maintenance features and documentation for long-term serviceability.
• Supported by Annovi Reverberi’s global reputation and a 5-year commercial warranty.

RTX50 | 13 GPM 4350 PSI Pump 1450 RPM 30mm Solid Shaft

The Annovi Reverberi RTX50 industrial pump delivers a powerful combination of
13 GPM at 4,350 PSI with the durability of a 30mm solid keyed shaft and
slow-speed 1,450 RPM operation. Built with ceramic plungers, stainless steel valves,
a forged brass manifold, and oversized bearings, it is engineered to thrive in the toughest
industrial environments.

Whether used for blasting, marine cleaning, fleet washing, or large-scale surface preparation,
the RTX50 provides dependable performance with minimal downtime. Factory-tested, pre-filled
with oil, and backed by a 5-year commercial warranty, it is a trusted solution for professionals
who demand uncompromising pressure, reliability, and long service life.
