RTX-SS30.500 | 7.9 GPM 7250 PSI Pump 1450 RPM AISI 420 SS Shaft

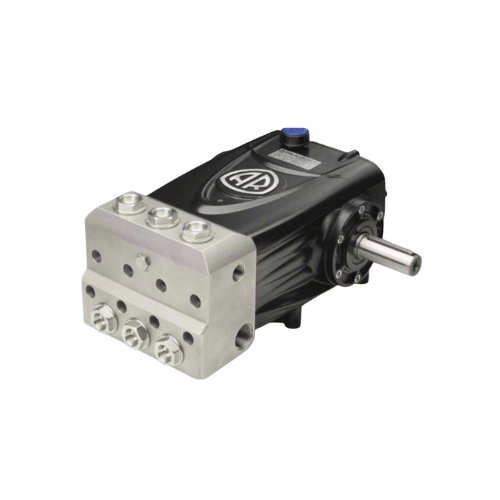

RTX-SS30.500 Industrial Stainless-Steel Triplex Plunger Pump

Performance & Duty Rating

• Extreme-duty industrial pump engineered for ultra-high-pressure cleaning in corrosive, continuous-use environments.
• Delivers 7.9 GPM at 7,250 PSI at a smooth 1,450 RPM for long service life and stable operation.
• Built around an AISI 420 stainless steel head for chemical exposure, saltwater environments, and harsh washdown conditions.
• 30mm solid keyed shaft supports high-torque drive packages and heavy-duty power transfer.

Key Specifications RTX-SS30.500

• Model: RTX-SS30.500
• Flow Rate: 7.9 GPM
• Pressure Rating: 7,250 PSI
• Operating Speed: 1,450 RPM
• Head Material: AISI 420 stainless steel
• Shaft Type: 30mm solid keyed shaft
• Pump Type: Triplex plunger (low-pulsation output)
• Plungers: Solid ceramic
• Valves: Stainless steel
• Bearings: Oversized heavy-duty bearings
• Warranty: 5-year commercial warranty

Included with the Pump

• Factory-installed break-in oil
• Oil sight glass for quick lubrication checks
• Vented dipstick for crankcase pressure regulation
• Factory performance test report (flow & PSI verified)
• 5-year manufacturer’s warranty

How the RTX-SS30.500 Delivers Ultra-High Pressure

The RTX-SS30.500 uses a triplex plunger system to synchronize three ceramic plungers for smooth,
uninterrupted flow at extreme pressure. Ceramic plungers resist abrasion and heat, while stainless steel valves
manage precise intake and discharge cycles to maintain stable output under heavy load.

Its AISI 420 stainless steel head is purpose-built for corrosive environments, including saltwater
exposure and chemical washdowns. The 30mm keyed shaft ensures secure torque transfer for demanding
drive systems, and heavy-duty bearings help minimize vibration and heat buildup during long operating intervals.

Benefits of RTX-SS30.500

• Ultra-high pressure capability: 7,250 PSI for extreme-duty industrial cleaning and surface prep
• Corrosion resistance: Stainless head withstands saltwater, chemicals, and harsh washdown routines
• Long-life wet end: Ceramic plungers and stainless valves support demanding duty cycles
• Continuous-duty ready: Low-speed 1,450 RPM operation reduces heat and wear
• High-torque power transfer: 30mm keyed shaft for load-intensive applications
• Maintenance-friendly: Sight glass and vented dipstick simplify routine checks
• Warranty coverage: 5-year commercial protection

Typical Applications

• Shipyards & marine service: Hull cleaning, corrosion control, saltwater exposure zones
• Refineries & petrochemical: Heavy washdown, sanitation, and maintenance cleaning
• Chemical plants: Aggressive environments requiring corrosion-resistant components
• Hydro-blasting & surface prep: Rust removal, paint stripping, and coating preparation
• Industrial wash bays: Heavy equipment cleaning and continuous operation
• Tank & pipe cleaning: Descaling, flushing, and pipeline maintenance

Why Choose the RTX-SS30.500?

If your operation demands ultra-high pressure with corrosion resistance and
continuous-duty reliability, the RTX-SS30.500 delivers a hardened stainless head, ceramic plungers,
stainless valves, and heavy-duty bearings designed for the harshest industrial conditions. Factory tested and shipped
oil-filled, it’s built for uptime in marine, chemical, refinery, and hydro-blasting work.
