RRV4G40HDF24-PKG | 4.0 GPM 4000 PSI Triplex Pump Package

RRV4G40HDF24-PKG by Annovi Reverberi — Complete RRV Series Triplex Pump Package with Nickel Plated Brass Head | 4.0 GPM | 4,000 PSI | Bronze Connecting Rods | Gymatic C2 Unloader | F24 SAE J609a 1″ Shaft | Direct Drive Gas Engine | 16,000 Cleaning Units

The RRV4G40HDF24-PKG by Annovi Reverberi is a complete, installation-ready RRV Series triplex ceramic plunger pump package engineered for direct drive gas engine-powered pressure washing systems requiring 4.0 GPM at 4,000 PSI with a Nickel Plated Brass Head for maximum corrosion resistance in demanding chemical environments. Rated at 4.0 GPM and 4,000 PSI, the RRV4G40HDF24-PKG delivers 16,000 cleaning units — the output of a heavy-duty professional cleaning platform built for contractors, fleet wash bays, industrial degreasing stations, agricultural sanitation operations, food and beverage processing facilities, and OEM system builders who need 4,000 PSI with the enhanced chemical resistance only a nickel plated manifold delivers — through bronze connecting rods, solid ceramic plungers, a Nickel Plated Brass Head manifold, stainless steel valves, dual redundant packing, and an F24 SAE J609a direct-drive flange with 1″ shaft. Every fitting, every bolt, the unloader, and the manual ship in one organized box. Mount it. Connect it. Wash. As part of Annovi Reverberi’s pump and unloader assemblies stocked and supported by WSHPWR, the RRV4G40HDF24-PKG is the complete answer for operators who need 4,000 PSI and the chemical durability to back it up.

The RRV4G40HDF24-PKG is a factory-engineered, factory-assembled, factory-tested complete system — designed by Annovi Reverberi in Modena, Italy and distributed across North America by AR North America. The H designation confirms the Nickel Plated Brass Head — the single specification that separates this package from the standard RRV4G40-PKG for operators who run aggressive detergents, sanitizers, degreasers, or process chemicals through their pressure washing systems daily. Protected by a 5-year US limited warranty and built to be fully rebuilt rather than replaced, this is a decade-of-service investment.

Everything in One Box — The RRV4G40HDF24-PKG Complete Package Contents

No Return Trips. No Guesswork. No Compatibility Risk. Same-Day Install.

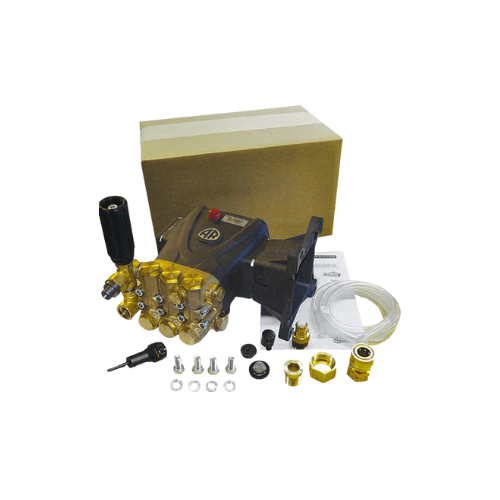

Open the RRV4G40HDF24-PKG box and find everything required for a complete engine-to-pump installation:

• RRV4G40H triplex ceramic plunger pump with Nickel Plated Brass Head — factory-tested and pre-lubricated with break-in oil. Nickel plated manifold, bronze connecting rods, solid ceramic plungers, stainless steel valves, dual redundant packing, oversized crankshaft bearings — factory-installed and factory-verified. Ready to mount.
• Gymatic C2 adjustable unloader with banjo bolts and sealing O-rings — factory-matched and factory-installed for the 4.0 GPM / 4,000 PSI duty point. Smooth pressure regulation and safe bypass from first startup. The right unloader for this pump. Already on it.
• Fittings and mounting hardware — every fitting and fastener required for integration onto contractor skids, fleet wash frames, flatbed rigs, and OEM installations. Organized in the box. Nothing to source separately.
• Chemical injector and suction hose — not included — the RRV4G40HDF24-PKG delivers straight 4,000 PSI high-pressure water output. When detergent capability is required, a downstream chemical injector and suction assembly are sourced separately and connected to the system outlet. Choose the draw rate and connection style that matches your cleaning program.
• Factory break-in oil — crankcase pre-filled. First-startup protection already handled.
• Oil sight glass and vented dipstick — at-a-glance oil monitoring from day one.
• Thermal relief valve — factory-installed protection against pump head overheating during extended bypass periods.
• Installation and service manual — complete setup, operating, service, and rebuild procedures with Annovi Reverberi part numbers for every component. AR North America parts availability confirmed across North America.

Decoding the RRV4G40HDF24-PKG

What Every Segment of This Annovi Reverberi Package Designation Tells You

• RRV — Pump series: RRV Series commercial triplex plunger pump — Annovi Reverberi’s heavy-duty gas engine commercial platform
• 4G — Pump series identifier for this RRV configuration
• 40 — Maximum pressure: 4,000 PSI — 4.0 × 4,000 = 16,000 cleaning units
• H — Head construction: Nickel Plated Brass Head — nickel plating applied over the brass manifold for enhanced corrosion resistance in high-chemical and high-demand cleaning environments
• D — Shaft version: Direct Drive — 3,400 RPM for direct gas engine coupling per Annovi Reverberi model designation convention
• F24 — Flange type: SAE J609a — 1″ hollow keyway shaft for direct coupling to compatible gas and diesel engines (Annovi Reverberi part AR41866)
• PKG — Complete package: pump, Gymatic C2 unloader with banjo bolts, fittings, mounting hardware, thermal relief valve, manual, and factory break-in oil — everything required for a complete engine-to-pump installation in one organized box

The H Designation — Nickel Plated Brass Head at 4,000 PSI

Enhanced Corrosion Resistance. Chemical-Duty Ready. The Upgrade That Matters.

The H designation on the RRV4G40HDF24-PKG identifies the single most significant specification upgrade from the standard RRV4G40-PKG — and for operators who run aggressive chemicals through their pressure washing systems, it is the specification that protects the investment:

• Nickel plating over forged brass — the RRV4G40HDF24-PKG’s manifold head combines the structural strength and pressure fatigue resistance of forged brass with a nickel plating layer that creates a harder, more chemically inert surface. Nickel resists attack from acids, alkalines, degreasers, sanitizers, and process chemicals that can pit and corrode unprotected brass manifolds over time in high-frequency chemical washing applications.
• Critical for chemical-intensive environments — food and beverage facilities running caustic sanitation chemistry, agricultural operations using fertilizer residue washdown, industrial plants running aggressive degreasers, and contractors applying pre-treatment chemicals regularly all benefit from the RRV4G40HDF24-PKG’s nickel plated surface where unprotected brass manifolds experience accelerated corrosion under the same conditions.
• Same 4,000 PSI rated output — elevated chemical durability — the RRV4G40HDF24-PKG delivers identical 4.0 GPM / 4,000 PSI / 16,000 cleaning unit performance as the standard RRV4G40-PKG. The nickel plated head adds chemical corrosion resistance without changing the pressure rating, flow characteristics, or operating speed of the package.
• The right specification for high-chemical duty — if your cleaning program involves daily detergent application, agricultural chemical residue contact, food-grade sanitizers, or industrial degreasers, the RRV4G40HDF24-PKG’s Nickel Plated Brass Head is the correct long-term specification. Standard brass is adequate for clean water and light detergent use. Nickel plated brass is built for chemical duty.

Key Specifications

RRV4G40HDF24-PKG Technical Details at a Glance

• Flow Rate: 4.0 GPM (gallons per minute)
• Maximum Pressure: 4,000 PSI
• Cleaning Units: 16,000 (GPM × PSI)
• Operating Speed: 3,400 RPM — direct drive gas engine
• Pump Type: RRV Series triplex ceramic plunger pump — smooth, low-pulsation output
• Head Construction: Nickel Plated Brass Head (H designation) — enhanced corrosion resistance for chemical-intensive cleaning applications
• Flange: F24 — SAE J609a, 1″ hollow keyway shaft, direct drive gas and diesel engine compatible (Annovi Reverberi part AR41866)
• Connecting Rods: Bronze — required specification for sustained 4,000 PSI continuous-duty operation
• Plungers: Solid ceramic — thermal resistance and durability
• Valves: Stainless steel inlet and discharge — crisp seating and rapid recovery for efficient, consistent flow
• Packing: Dual redundant — extended seal life and minimized leakage under demanding duty cycles
• Volumetric Efficiency: Approximately 93% — cooler running, reduced energy loss, lower total cost of ownership
• Bearings: Oversized crankshaft — drivetrain stability and reduced wear at operating speed
• Lubrication: Vented oil-bath crankcase — continuous lubrication and thermal management during extended operation
• Thermal Relief: Included — protects pump head from heat-related damage during extended bypass
• Unloader: Gymatic C2 — factory-matched, factory-installed, banjo bolts and O-rings included
• Chemical Injector: Not included — straight 4,000 PSI water output; downstream injector sourced separately
• Warranty: 5-year limited warranty — US-based coverage through Annovi Reverberi North America

Engine Compatibility — What Drives the RRV4G40HDF24-PKG

F24 SAE J609a. 1″ Hollow Keyway Shaft. Predator-Compatible. Broad Engine Range.

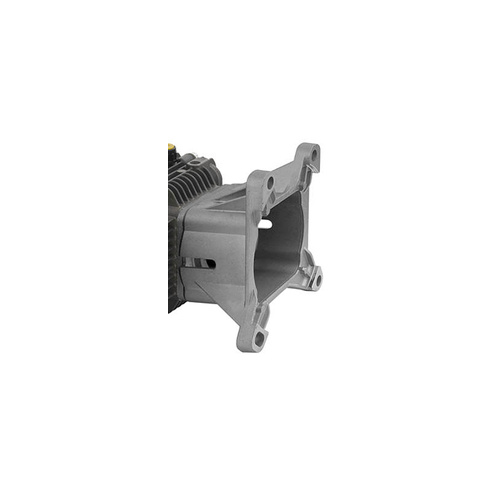

The RRV4G40HDF24-PKG‘s F24 SAE J609a direct-drive flange accepts a 1″ hollow keyway shaft. At 4,000 PSI and 4.0 GPM, engine horsepower is critical. Confirmed compatible platforms include:

• Harbor Freight Predator 420cc / 13 HP — compatible with the RRV4G40HDF24-PKG F24 1″ keyway shaft. Confirm engine HP is appropriate for sustained 4,000 PSI duty cycles. Direct value-priced replacement for Honda GX390, Briggs & Stratton XR2100, and Kohler CH440 — the primary contractor choice for Predator-powered chemical-duty rigs built around the RRV4G40HDF24-PKG.
• Harbor Freight Predator 459cc / 15.8 HP Max Performance — up to 10% more torque than the standard 420cc. Direct replacement for Honda GX390, Briggs & Stratton XR2100, and Kohler CH440. Compatible with the RRV4G40HDF24-PKG F24 1″ keyway shaft — the preferred single-cylinder Predator pairing for sustained high-pressure continuous-duty operation.
• Harbor Freight Predator 670cc / 22 HP V-Twin — the preferred pairing for sustained 4,000 PSI continuous-duty chemical cleaning operations. Delivers the engine overhead needed to keep the RRV4G40HDF24-PKG running at rated pressure across full-day programs involving repeated chemical application cycles. Replaces Honda GX630/660/690 and Briggs & Stratton Vanguard at significant cost savings.
• Honda GX390 — 389cc, 1″ SAE J609a keyway shaft. Direct-mount compatible with the RRV4G40HDF24-PKG F24 flange.
• Briggs & Stratton XR2100 / Vanguard series — 420cc and above, 1″ SAE keyway. Direct-mount compatible.
• Kohler CH440 / Command series — 429cc, 1″ SAE keyway. Direct-mount compatible.

Typical Applications

Where the RRV4G40HDF24-PKG Delivers Best Results

• Food and beverage processing facilities — conveyor and floor sanitation using approved caustic and acid-based sanitation chemistry where the RRV4G40HDF24-PKG’s Nickel Plated Brass Head resists chemical attack that unprotected brass manifolds cannot match in daily chemical wash cycles
• Agricultural sanitation operations — barn sanitation, livestock facility washdown, and equipment cleaning involving agricultural chemical residues where chemical contact with the pump manifold is unavoidable and nickel plating provides the durability margin that protects the investment
• Industrial degreasing and plant sanitation — machinery wash stations, process-area cleaning, and maintenance bays running aggressive solvent-based or alkaline degreasers where the RRV4G40HDF24-PKG’s chemical-resistant head construction extends service life under demanding industrial chemical contact
• Contractor mobile rigs — surface prep and chemical pre-treatment programs — contractors running pre-treatment chemistry, graffiti removal chemicals, or specialized cleaning agents regularly benefit from the RRV4G40HDF24-PKG’s nickel plated protection over the long service life of a 4,000 PSI commercial pump
• Fleet wash operations — trucks, buses, and heavy trailers where fleet wash chemistry and detergent programs involve regular chemical contact with the pump system
• Municipal services — sidewalks, transit vehicles, and public works facilities where sanitation chemistry or cleaning agents are part of the standard cleaning program

5-Year US Warranty, National Parts Availability, and Wholesale Pricing

Built in Italy. Nickel Plated Head. Distributed Across North America. Backed for Five Years.

The RRV4G40HDF24-PKG is protected by Annovi Reverberi’s 5-year limited warranty through the US-based warranty and service network administered by AR North America. Every internal wear component — ceramic plungers, bronze connecting rods, Nickel Plated Brass Head seals and o-rings, stainless valve seats, Gymatic C2 unloader service parts, dual redundant packing kits, and oversized crankcase bearings — is stocked nationally through authorized AR North America distribution channels. Contractors, fleet operators, food and beverage facilities, agricultural operations, industrial facility managers, OEM equipment builders, resellers, and volume buyers are invited to contact the WSHPWR wholesale team for pricing on the RRV4G40HDF24-PKG and the complete WSHPWR pump package lineup. WSHPWR maintains one of the most complete Annovi Reverberi inventories available through any US web store — with thousands of products in stock and a continually expanding catalog.

16,000 Cleaning Units. 4,000 PSI. 4.0 GPM. Nickel Plated Brass Head. Bronze Rods. F24 SAE J609a. Gymatic C2. Everything in One Box.

Italian Engineering. Chemical-Duty Ready. Predator-Compatible. Complete Factory Package. 5-Year US Warranty.

Stop sourcing components one at a time. Stop running standard brass in chemical-intensive environments. The RRV4G40HDF24-PKG is the complete Annovi Reverberi chemical-duty pump package for contractors, fleet operators, food and beverage facilities, agricultural teams, industrial facilities, and OEM builders who need 4.0 GPM at 4,000 PSI with the corrosion protection that daily chemical contact demands. Nickel Plated Brass Head. Bronze connecting rods. Dual redundant packing. 93% volumetric efficiency. Gymatic C2 unloader. Thermal relief valve. Every fitting and every bolt. Factory-tested. Pre-lubricated. Five-year US warranty. One box. Same-day install.

Volume buyers and contractors building chemical-duty systems can reach the WSHPWR wholesale team directly at wholesale@wshpwr.com to discuss pricing across the complete Annovi Reverberi pump package lineup.
