RRV4G40-VRT-PKG-A | 4.0 GPM 4000 PSI Triplex Pump Package

RRV4G40-VRT-PKG-A by Annovi Reverberi — Complete VRT Plumbed RRV Series Triplex Pump Package with Anodized Crankcase | 4.0 GPM | 4,000 PSI | Bronze Connecting Rods | Forged Brass Manifold | F24 SAE J609a 1″ Shaft | VRT Unloader with Easy Start | Auto-Reset Thermal Relief | 16,000 Cleaning Units

The RRV4G40-VRT-PKG-A by Annovi Reverberi is a complete, factory-assembled VRT plumbed RRV Series triplex ceramic plunger pump package engineered for direct drive gas engine-powered pressure washing systems requiring 4.0 GPM at 4,000 PSI with an anodized crankcase for enhanced surface hardness and corrosion resistance in chemically aggressive, high-humidity, and demanding industrial environments. Rated at 4.0 GPM and 4,000 PSI, the RRV4G40-VRT-PKG-A delivers 16,000 cleaning units — the output of a heavy-duty professional cleaning platform built for contractors, fleet operators, OEM builders, agricultural operations, and industrial facilities — through bronze connecting rods, solid ceramic plungers, a forged brass manifold, stainless steel valves, dual redundant packing, an anodized aluminum crankcase, and an F24 SAE J609a 1″ hollow shaft for direct coupling to compatible gasoline engines. As part of Annovi Reverberi’s pump and unloader assemblies stocked and supported by WSHPWR, the RRV4G40-VRT-PKG-A is the correct specification when 4,000 PSI performance needs to be paired with the elevated crankcase protection that standard aluminum cannot deliver.

The RRV4G40-VRT-PKG-A is a factory-engineered, factory-assembled, factory-tested complete system — designed by Annovi Reverberi in Modena, Italy and distributed across North America by AR North America. The VRT plumbed package format means the unloader is factory-plumbed with the bypass recirculation loop, automatic thermal relief valve, Easy Start bypass circuit, and all hardware connected and verified before shipment. Protected by a 5-year US limited warranty and built to be fully rebuilt rather than replaced, the RRV4G40-VRT-PKG-A is a decade-of-service investment in the most durable crankcase specification in the RRV 4,000 PSI lineup.

Everything in One Box — The RRV4G40-VRT-PKG-A Complete VRT Plumbed Package

Factory-Plumbed. Factory-Tested. Anodized Crankcase. Nothing Left to Source.

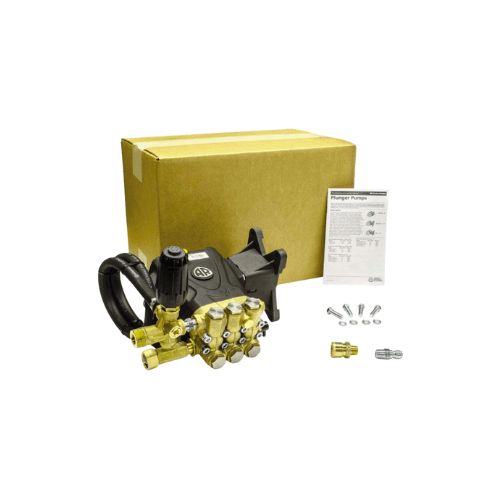

Open the RRV4G40-VRT-PKG-A box and find a complete, factory-plumbed, gas engine-ready installation with anodized crankcase protection:

• RRV4G40 triplex ceramic plunger pump with anodized crankcase — factory-tested and pre-lubricated with break-in oil. Anodized aluminum crankcase, bronze connecting rods, solid ceramic plungers, forged brass manifold, stainless steel valves, dual redundant packing, oversized crankshaft bearings — factory-installed and factory-verified. F24 SAE J609a 1″ hollow shaft for direct gas engine coupling. Ready to mount.
• VRT external bypass unloader — factory-plumbed and pressure-set — the VRT unloader is factory-calibrated for the 4.0 GPM / 4,000 PSI duty point and plumbed into the complete bypass circuit before shipment. Smooth pressure regulation, stable bypass behavior, and controlled output from the first startup.
• Easy Start feature — at engine startup, the VRT bypass circuit opens and the pump starts against zero back pressure. The gasoline engine engages freely under no hydraulic load. Once the engine reaches operating speed, the bypass closes and the system builds to 4,000 PSI. Easier starts on every pull. Less starter wear. Longer engine life.
• Exterior bypass recirculation loop — factory-plumbed — the bypass recirculation circuit is factory-assembled and connected, providing controlled water flow during trigger-off intervals and protecting the pump from pressure spikes throughout the cleaning cycle.
• Automatic Thermal Relief Valve (TRV) — factory-installed in bypass circuit — the thermal sensing pill continuously monitors bypass water temperature. When bypass water reaches 124–145°F, the TRV opens automatically — hot water exits through the relief port, and ambient-temperature supply water flows in to replace it. When temperature returns to the safe operating range, the TRV closes automatically. No manual reset. No intervention. Full thermal protection at all times.
• Fittings and mounting hardware — every fitting and fastener required for installation onto contractor skids, trailer frames, fleet wash bays, and OEM gas engine systems. Organized in the box.
• Chemical injector and suction hose — not included — the RRV4G40-VRT-PKG-A delivers straight 4,000 PSI high-pressure water output. When detergent capability is required, a downstream chemical injector and suction assembly are sourced separately.
• Factory break-in oil — crankcase pre-filled. Oil sight glass and vented dipstick for ongoing monitoring.
• Operator’s manual and service schematics — complete installation, startup, operating, and maintenance procedures with Annovi Reverberi part numbers for every serviceable component.

Decoding the RRV4G40-VRT-PKG-A

What Every Segment of This Annovi Reverberi Package Designation Tells You

• RRV — Pump series: RRV Series commercial triplex plunger pump — Annovi Reverberi’s heavy-duty gas engine commercial platform
• 4G — Pump series identifier for this RRV configuration
• 40 — Maximum pressure: 4,000 PSI — 4.0 × 4,000 = 16,000 cleaning units
• VRT — Unloader family: VRT Series external bypass unloader — factory-plumbed with Easy Start, bypass recirculation loop, and auto-reset TRV thermal protection
• PKG — Complete VRT plumbed package: pump plus fully integrated VRT plumbing assembly
• A — Crankcase specification: Anodized crankcase — electrochemically hardened aluminum crankcase surface for enhanced corrosion resistance and surface durability in aggressive operating environments

A — The Anodized Crankcase Upgrade

Electrochemical Surface Hardening. Harder. More Corrosion Resistant. Built for Aggressive Environments.

The A designation on the RRV4G40-VRT-PKG-A identifies a crankcase specification that adds meaningful protection in environments where standard aluminum crankcases experience accelerated surface wear or corrosion — and understanding what anodizing actually does is the key to knowing whether this is the correct specification for your application:

• What anodizing is — anodizing is an electrochemical process that converts the surface layer of aluminum into aluminum oxide — a ceramic-like compound that is significantly harder than the base aluminum beneath it. The anodized layer is not a coating applied on top of the surface; it is a transformation of the surface itself. It cannot peel, flake, or chip under normal operating conditions. On the RRV4G40-VRT-PKG-A, the anodized crankcase housing carries this hardened surface treatment across all exposed aluminum crankcase surfaces.
• Enhanced corrosion resistance — aluminum oxide is substantially more resistant to chemical attack than bare aluminum. In environments where the crankcase exterior is exposed to cleaning chemistry overspray, fertilizer residue, salt air, industrial vapors, or aggressive sanitation agents, the anodized surface of the RRV4G40-VRT-PKG-A resists the pitting and surface degradation that affects standard aluminum crankcases over extended service in the same conditions.
• Increased surface hardness — the aluminum oxide layer created by anodizing is significantly harder than the base aluminum. In belt drive and direct drive installations where abrasive debris, grit, or particulate contamination contacts crankcase surfaces during operation, the anodized surface resists surface wear that would scratch or abrade standard aluminum over time.
• When to specify the A anodized crankcase over the standard RRV4G40-VRT-PKG — agricultural environments with fertilizer and chemical residue overspray; coastal and marine-adjacent installations with salt air exposure; food processing facilities with caustic sanitation chemistry in the operating environment; industrial environments with airborne chemical or abrasive particulate; and any installation where the crankcase exterior will experience sustained exposure to corrosive agents in the surrounding environment. If the operating environment is clean water and standard wash-down conditions, the standard RRV4G40-VRT-PKG is the correct specification. If the environment involves the conditions above — the A anodized crankcase is the investment that protects the housing across a decade of service.

Key Specifications

RRV4G40-VRT-PKG-A Technical Details at a Glance

• Flow Rate: 4.0 GPM (gallons per minute)
• Maximum Pressure: 4,000 PSI
• Cleaning Units: 16,000 (GPM × PSI)
• Operating Speed: 3,400 RPM — direct drive gas engine
• Pump Type: RRV Series triplex ceramic plunger pump — smooth, low-pulsation output
• Flange: F24 — SAE J609a, 1″ hollow keyway shaft, direct drive gas engine compatible
• Crankcase: Anodized aluminum — electrochemically hardened surface for enhanced corrosion resistance and surface durability
• Connecting Rods: Bronze — required specification for sustained 4,000 PSI continuous-duty operation
• Manifold: Forged brass — maximum corrosion and pressure resistance
• Plungers: Solid ceramic — thermal and mechanical stress resistance
• Valves: Stainless steel — dependable sealing and long service life
• Bearings: Oversized crankshaft — stability during high-load operation
• Packing: Dual redundant — twice the seal life, reduced leakage, extended operating life
• Volumetric Efficiency: Approximately 93% — more input power converted to usable flow, lower heat buildup
• Lubrication: Vented oil-bath crankcase — continuous lubrication and cooling
• Unloader System: VRT external bypass — factory-plumbed, pressure-set, and verified
• Easy Start: Bypass-circuit zero-back-pressure startup — engine starts freely; system builds to pressure at operating speed
• Thermal Relief Valve: Auto-open/auto-reset at 124–145°F — thermal sensing pill; hot water exits, ambient supply water replaces; no manual reset
• Serviceability: Oil sight glass and vented dipstick; easy-access valve stacks, seals, and plungers
• Chemical Injector: Not included — straight 4,000 PSI water output
• Warranty: 5-year limited warranty — US-based coverage through Annovi Reverberi North America

Engine Compatibility — What Drives the RRV4G40-VRT-PKG-A

F24 SAE J609a. 1″ Hollow Keyway Shaft. Predator-Compatible. Broad Engine Range.

• Harbor Freight Predator 420cc / 13 HP — compatible with the RRV4G40-VRT-PKG-A F24 1″ keyway shaft. Confirm HP is appropriate for sustained 4,000 PSI duty. Direct value-priced replacement for Honda GX390, Briggs & Stratton XR2100, and Kohler CH440.
• Harbor Freight Predator 459cc / 15.8 HP Max Performance — up to 10% more torque than the standard 420cc. Direct replacement for Honda GX390, Briggs & Stratton XR2100, and Kohler CH440. Compatible with the RRV4G40-VRT-PKG-A F24 1″ keyway shaft — the preferred single-cylinder Predator pairing for sustained high-pressure continuous-duty operation.
• Harbor Freight Predator 670cc / 22 HP V-Twin — preferred for sustained 4,000 PSI continuous-duty applications. Replaces Honda GX630/660/690 and Briggs & Stratton Vanguard at significant savings.
• Honda GX390 — 1″ SAE J609a keyway shaft. Direct-mount compatible with the RRV4G40-VRT-PKG-A F24 flange.
• Briggs & Stratton XR2100 / Vanguard series — 1″ SAE keyway. Direct-mount compatible.
• Kohler CH440 / Command series — 1″ SAE keyway. Direct-mount compatible.

Typical Applications

Where the RRV4G40-VRT-PKG-A Is the Correct Specification

• Agricultural environments with fertilizer residue, pesticide overspray, and chemical exposure — the RRV4G40-VRT-PKG-A’s anodized crankcase resists the corrosive surface attack that agricultural chemical environments accelerate on standard aluminum crankcases across seasonal service cycles
• Coastal and marine-adjacent installations with salt air exposure — salt air accelerates aluminum surface corrosion on standard crankcases. The anodized surface of the RRV4G40-VRT-PKG-A maintains crankcase integrity in coastal contractor rigs, marine facility wash systems, and elevated-humidity coastal environments
• Food and beverage processing facilities — USDA-compliant washdown programs where caustic sanitation chemistry and high-humidity environments create conditions that benefit from anodized crankcase protection at 4,000 PSI operating pressure
• Industrial plants with airborne chemical or abrasive particulate — manufacturing environments where airborne contamination contacts the pump crankcase during operation; the anodized surface resists both chemical attack and abrasive wear from particulate in the operating environment
• Contractor mobile rigs, fleet washing, and municipal operations — gas engine-driven professional cleaning systems where the anodized crankcase provides the additional protection margin that justifies the specification upgrade over the standard RRV4G40-VRT-PKG in demanding operating environments

5-Year US Warranty, National Parts Availability, and Wholesale Pricing

Built in Italy. Anodized Crankcase. Backed for Five Years.

The RRV4G40-VRT-PKG-A is protected by Annovi Reverberi’s 5-year limited warranty through the US-based warranty and service network administered by AR North America. Every internal wear component — ceramic plungers, bronze connecting rods, forged brass manifold seals and o-rings, stainless valve assemblies, VRT unloader service parts, dual redundant packing kits, and oversized crankcase bearings — is stocked nationally through authorized AR North America distribution channels. Contractors, fleet operators, agricultural operations, food processing facilities, industrial facility managers, OEM equipment builders, resellers, and volume buyers are invited to contact the WSHPWR wholesale team for pricing on the RRV4G40-VRT-PKG-A and the complete WSHPWR pump package lineup. WSHPWR maintains one of the most complete Annovi Reverberi inventories available through any US web store — with thousands of products in stock and a continually expanding catalog.

16,000 Cleaning Units. 4,000 PSI. 4.0 GPM. Anodized Crankcase. VRT Plumbed. Easy Start. Auto-Reset TRV. Bronze Rods. F24 SAE J609a. Everything in One Box.

Italian Engineering. Anodized Crankcase Protection. Complete VRT Plumbed Package. 5-Year US Warranty.

When the operating environment demands more than standard aluminum — the RRV4G40-VRT-PKG-A is the specification. Anodized crankcase. Bronze connecting rods. Forged brass manifold. Dual redundant packing. 93% volumetric efficiency. VRT unloader factory-plumbed. Easy Start zero-back-pressure startup. Automatic thermal relief at 124–145°F. Every fitting and every bolt. Factory-tested. Pre-lubricated. Five-year US warranty. One box. Same-day install.

Volume buyers and contractors specifying the RRV4G40-VRT-PKG-A across fleet or OEM production builds can reach the WSHPWR wholesale team directly at wholesale@wshpwr.com to discuss pricing across the complete Annovi Reverberi pump package lineup.
