RW15HT | 4 GPM 4000 PSI Hot Water Pump 185°F High Temp Use

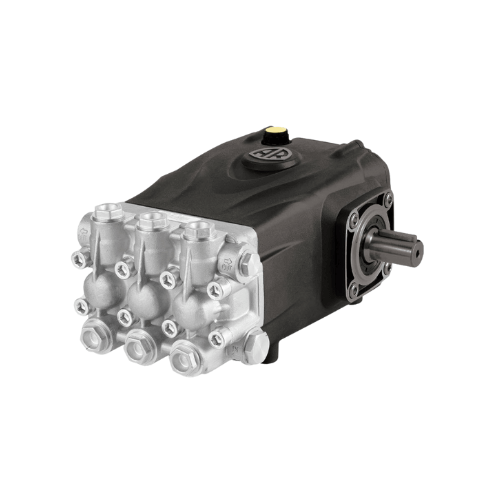

Annovi Reverberi RW15HT High-Temperature Triplex Plunger Pump

The Annovi Reverberi RW15HT is a high-temperature, commercial-grade triplex plunger pump built for
demanding cleaning applications that require dependable performance with hot water. Rated at 4.0 GPM
and 4,000 PSI, it operates at 1,450 RPM and uses a 24mm solid shaft
for straightforward integration into belt-drive or direct-drive systems.

Designed as a direct replacement for the General Pump TSS1511, the RW15HT matches the same mounting
footprint and shaft configuration for a true drop-in swap on rebuilds, upgrades, and OEM builds. Unlike standard
cold-water pumps, the RW15HT supports inlet temperatures up to 185°F, helping hot-water systems
break down grease, oil, and heavy residues faster with less chemical dependence.

Key Specifications of RW15HT

• Flow Rate: 4.0 GPM
• Pressure: 4,000 PSI
• Speed: 1,450 RPM
• Shaft Size: 24mm solid shaft
• Max Inlet Temperature: 185°F
• Replacement Fit: Compatible footprint/shaft alignment for General Pump TSS1511
• Plungers: Ceramic
• Valves: Stainless steel
• Seals: Heat-resistant sealing system for hot-water duty
• Maintenance Features: Oil sight glass & vented dipstick
• Support: U.S. parts & service network

What’s Included with RW15HT

• Factory pre-filled break-in oil for immediate use
• Vented dipstick for crankcase pressure regulation
• Oil sight glass for quick maintenance checks
• Factory performance test report verifying flow & pressure
• Owner’s manual and schematic for installation guidance
• Warranty support through U.S. service centers

High-Temperature Cleaning Advantage

The RW15HT is engineered for hot-water operation up to 185°F, which improves cleaning efficiency
by loosening oils and grease more quickly and helping detergents work more effectively. Its ceramic plungers,
stainless-steel valves, and heat-rated seals are designed to handle thermal stress during continuous hot-water cycles
while maintaining stable flow and long service life.

Benefits

• Drop-In Replacement: Designed to match the TSS1511 footprint and shaft alignment.
• Hot-Water Ready: Rated for 185°F inlet temperature for faster degreasing and washdown.
• Commercial Durability: Ceramic plungers and stainless valves resist wear and corrosion.
• Compact & Versatile: Fits mobile trailers, service rigs, and stationary equipment.
• Service-Friendly: Sight glass and vented dipstick simplify routine checks.
• Factory Verified: Performance-tested prior to shipment.

Common Applications

• Mobile detailing & trailer systems: Hot water boosts removal of road film and oils.
• Food service & commercial kitchens: Thermal cleaning for grease-heavy environments.
• USDA and sanitation washdown: Food processing, dairy, and facility hygiene.
• Industrial parts washing: Hot-water circulation and degreasing systems.
• Fleet & equipment maintenance: Cuts through oil, hydraulic residue, and heavy deposits.

Why Choose the RW15HT?

If you need a proven hot-water pump that installs easily in place of a TSS1511, the RW15HT delivers a strong blend of
compatibility, thermal capability, and commercial-grade durability. With heat-rated seals, stainless valves, ceramic
plungers, and maintenance-friendly service points, it’s built for high-uptime operation in real-world hot-water
cleaning systems.

Summary

The AR RW15HT is a 4.0 GPM, 4,000PSI
triplex plunger pump with a 24mm solid shaft and 185°F hot-water capability.
Designed as a direct-fit replacement for the General Pump TSS1511, it provides drop-in installation
with added hot-water durability for faster, more effective degreasing and washdown.
