RRA3G30E-F17SX LH Triplex Pump | 3.0 GPM 3000 PSI

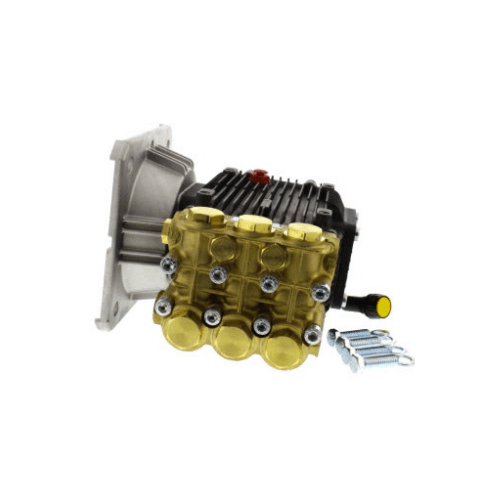

Annovi Reverberi RRA3G30E-F17SX Triplex Plunger Pump

Product Configuration

• RRA3G30E-F17SX is a triplex ceramic plunger pump engineered for residential and light commercial pressure washer systems requiring compact packaging and reliable output.
• Rated performance is 3.0 GPM at 3,000 PSI while operating at 1,750 RPM for steady pressure delivery and controlled duty.
• Left-hand SX configuration is specified for installations requiring mirror-image rotation and plumbing orientation compatibility.

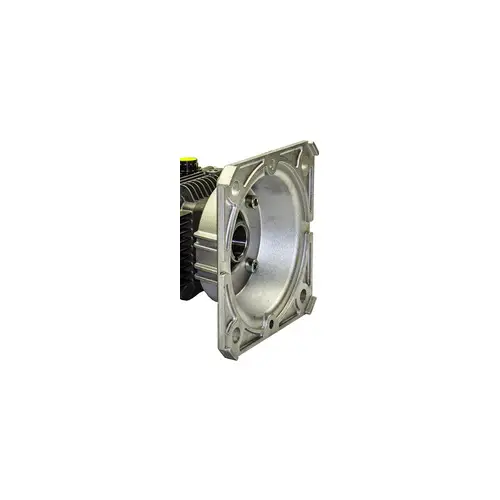

• F17 flange configuration is designed for direct mounting to NEMA 182–184 frame electric motors using a 1-1/8″ hollow keyway shaft interface.
• Service-focused design intent supports predictable maintenance routines and repeatable long-term performance.

Key Specifications

• Flow rate: 3.0 GPM.
• Maximum pressure: 3,000 PSI.
• Operating speed: 1,750 RPM.
• Configuration: left-hand (SX).
• Mounting: F17 flange for NEMA 182–184 frame electric motor mounting.
• Shaft interface: 1-1/8″ hollow keyway shaft.
• Pump type: triplex ceramic plunger pump.
• Warranty: 5-year manufacturer coverage.

Included Components

• Pre-filled crankcase with break-in oil for installation-ready startup.
• Vented dipstick for quick oil level verification and crankcase pressure balance.
• Oil sight glass for fast visual inspection during routine checks.
• F17 NEMA 182–184 mounting flange interface for direct coupling to compatible electric motors.
• Operator’s manual and full parts schematic for installation and service reference.
• 5-year manufacturer warranty documentation for long-term ownership support.

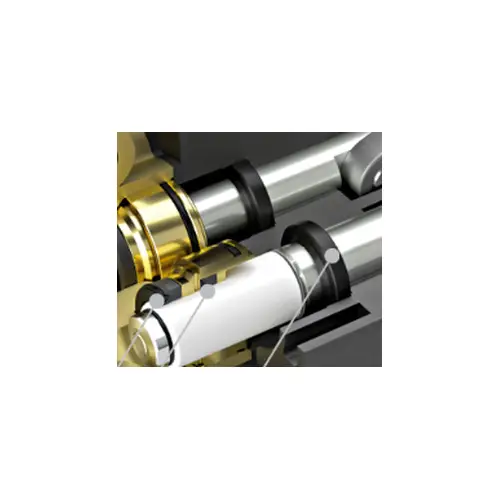

Triplex Plunger Operation

• Triplex ceramic plunger system is designed to deliver smooth, uninterrupted water flow with reduced pulsation.
• Reduced vibration supports stable pressure delivery and controlled spray performance during frequent trigger cycling.
• Operating at 1,750 RPM supports lower mechanical stress compared to high-speed pump platforms.
• Left-hand SX configuration supports compatibility with specific motor layouts and system orientations.
• Direct flange mounting supports stable alignment and repeatable coupling engagement for electric-driven systems.

Materials and Construction Standards

• Brass manifold is specified for durability and reliable service in common wash environments.
• Ceramic plungers support wear resistance and stable sealing under pressure.
• Stainless steel valves support repeatable sealing and consistent flow control.
• Seal system is designed to support reliable operation during routine residential and light commercial duty cycles.
• Construction intent supports predictable long-term performance with serviceable wear components.

Operational Benefits

• Compact footprint supports tight equipment layouts in residential and light commercial installations.
• 3.0 GPM at 3,000 PSI supports strong cleaning performance for surface maintenance and general washdown.
• Triplex design supports smooth operation and reduced pulsation for consistent results.
• Oil sight glass and vented dipstick support fast maintenance checks and service scheduling.
• F17 direct-mount interface supports simplified electric motor coupling without belt-drive components.
• Left-hand SX orientation supports installation flexibility where standard rotation is not compatible.
• 5-year manufacturer coverage supports professional ownership requirements and long-term value.

Typical Use Cases

• Vehicle washing for cars, trucks, motorcycles, and small fleets.
• Outdoor equipment cleaning for lawn equipment, power tools, and garden machinery.
• Surface cleaning for decks, patios, siding, fences, and driveways.
• Light contractor work requiring dependable output for routine cleaning tasks.
• Surface preparation for removal of dirt and buildup prior to sealing, painting, or refinishing.

Selection Rationale

• Delivers a balanced performance profile of 3.0 GPM at 3,000 PSI for demanding residential and light commercial cleaning.
• 1,750 RPM operation supports controlled duty with reduced wear and stable pressure delivery.
• F17 flange and 1-1/8″ hollow keyway shaft interface supports direct mounting to NEMA 182–184 electric motors.
• Left-hand SX configuration supports compatibility with mirror-image system layouts and specific equipment orientations.
• Triplex ceramic plunger architecture and 5-year coverage support dependable long-term operation and ownership value.
