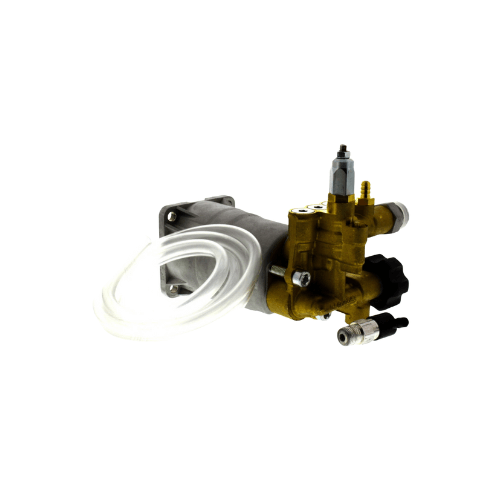

RQV25G30-PKG | 2.5 GPM 3000 PSI Universal Pressure Pump Package

RQV25G30-PKG by Annovi Reverberi — Complete RQV Series Axial Radial Pump Package | 2.5 GPM | 3,000 PSI | Brass Manifold | Forever Oil Synthetic Blend | F7 3/4″ Shaft | Easy Start | Fixed 12% Injector | Thermal Relief | 22mm Outlet | 7,500 Cleaning Units

The RQV25G30-PKG by Annovi Reverberi is a complete, installation-ready RQV Series axial radial pump package engineered for direct drive gas engine-powered pressure washing systems requiring 2.5 GPM at 3,000 PSI with a brass manifold, zero oil maintenance, and all the features of the standard RMV platform in an economical, high-quality replacement format. Rated at 2.5 GPM and 3,000 PSI, the RQV25G30-PKG delivers 7,500 cleaning units — through a brass manifold, ceramic pistons, a fixed 12% chemical injector, thermal relief protection, a 3/4″ hollow F7 shaft for direct coupling to compatible 5–7 HP gasoline engines, and a factory-filled Forever Oil synthetic blend that never requires maintenance or changing. All in one organized, factory-assembled box. As part of Annovi Reverberi’s pump package lineup stocked and supported by WSHPWR, the RQV25G30-PKG is the complete zero-oil-maintenance 3,000 PSI solution for residential users and contractors who want brass manifold performance at the economical RQV price point. Backed by AR North America’s nationwide service network. Protected by a 2-year US limited warranty. Fully rebuildable.

Everything in One Box — The RQV25G30-PKG Complete Package Contents

Forever Oil. Brass Manifold. 3,000 PSI. Factory-Assembled. Nothing Left to Source.

• RQV25G30 axial radial pump with brass manifold and Forever Oil — factory-assembled, factory-filled with Forever Oil synthetic blend, and ready to mount. Brass manifold engineered for 3,000 PSI performance, ceramic pistons, Easy Start bypass circuit for zero-back-pressure startup. The Forever Oil synthetic blend is a special formulation that does not degrade or require periodic replacement — engineered to last the life of the pump. No oil change schedule. No 50-hour break-in service. No maintenance interval to track. 3/4″ hollow F7 shaft for direct 5–7 HP gasoline engine coupling at 3,400 RPM. 4.25 lbs.
• Easy Start feature — bypass circuit opens at startup, pump starts against zero hydraulic back pressure. The 5–7 HP engine engages freely with no hydraulic resistance. Once operating speed is reached, the system builds to rated pressure. Every startup is as easy as the first — less pull-cord effort, less starter wear, longer engine life across seasons of daily use.
• Fixed 12% chemical injector — integrated into the RQV25G30-PKG pump assembly. Connect the chemical tube and filter — the system draws detergent automatically at the correct 12% draw rate. No separate injector required.
• Chemical tube and chemical filter — complete downstream detergent delivery assembly. Flush with clean water after every chemical use.
• Easy-grip swivel type garden hose adapter — swivel design for tool-free hookup to standard garden hose supply lines without twisting the inlet connection.
• Stainless steel filter screen — protects the brass manifold, ceramic pistons, and integrated injector from supply water sediment and particulate.
• Thermal relief protection valve — auto-activates during extended bypass, vents hot water, draws cooler supply water. Auto-resets when temperature normalizes.
• Hex Allen style low-profile fasteners with locking washers — vibration-resistant engine-to-pump mounting hardware.
• 22mm outlet threads — universal pressure washer hose connection. No adapters at the outlet.
• Operations manual with parts schematic — complete installation, operating, and rebuild procedures with every AR North America part number for every serviceable component in the RQV25G30-PKG.

Decoding the RQV25G30-PKG

What This Annovi Reverberi Designation Tells You

• RQV — Pump series: RQV Series axial radial pump — Annovi Reverberi’s economical high-quality replacement pump platform. All standard RMV features plus Forever Oil synthetic blend — factory-filled, never requires changing
• 25G — Pump series identifier: 2.5 GPM flow rate
• 30 — Maximum pressure: 3,000 PSI — 2.5 × 3,000 = 7,500 cleaning units
• PKG — Complete package: RQV pump with brass manifold, Forever Oil, and Easy Start, 12% injector, chemical tube and filter, swivel GHA, stainless filter screen, thermal relief valve, hex Allen locking fasteners, 22mm outlet, and operations manual with parts schematic

RQV PKG Family — Aluminum vs Brass Manifold

Both RQV PKG models share Forever Oil, fixed 12% injector, F7 3/4″ shaft, and the complete package. Manifold material and pressure rating drive the selection:

• RQV25G26-PKG — 2,600 PSI / 6,500 CU / aluminum manifold / Easy Start. The correct specification for machines rated at 2,600 PSI and below.
• RQV25G30-PKG (this model) — 3,000 PSI / 7,500 CU / brass manifold / Easy Start. At 3,000 PSI the brass manifold is the correct material specification — greater pressure cycling strength and thermal durability for the elevated output level. The correct replacement for machines originally rated at 3,000 PSI.

Key Specifications

RQV25G30-PKG Technical Details at a Glance

• Flow Rate: 2.5 GPM (9.5 L/min)
• Maximum Pressure: 3,000 PSI (206 bar)
• Cleaning Units: 7,500 (GPM × PSI)
• Operating Speed: 3,400 RPM — direct drive gas engine
• Power Required: 5.5 EBHP minimum
• Pump Type: RQV Series axial radial — economical high-quality replacement platform, wobble plate design, fully rebuildable
• Manifold/Head: Brass — correct specification at 3,000 PSI
• Pistons: Ceramic
• Bore Diameter: 12mm / Stroke: 9mm
• Oil System: Forever Oil — special synthetic blend, factory-filled, never requires changing or maintenance
• Shaft: D — 3/4″ hollow keyway, F7 SAE J609a flange, direct drive 5–7 HP gas engine
• Inlet: 3/4″ GHA
• Outlet: 22mm × 14mm (M) threads — universal pressure washer hose connection
• Max Temperature: 140°F
• Weight: 4.25 lbs
• Easy Start: EZ — zero back-pressure startup; engine starts freely, builds to rated pressure at operating speed
• Chemical Injector: Fixed 12% — integrated
• Thermal Relief: Included — auto-activates and auto-resets
• Inlet Adapter: Easy-grip swivel type garden hose adapter
• Filtration: Stainless steel filter screen
• Fasteners: Hex Allen low-profile with locking washers
• Serviceability: Fully rebuildable — all components nationally available through AR North America
• Warranty: 2-year limited warranty — US-based coverage through Annovi Reverberi North America

Forever Oil — The RQV Advantage at 3,000 PSI

Factory-Filled. Synthetic Blend. Never Needs Changing. Engineered for the Life of the Pump.

• What Forever Oil means at 3,000 PSI — at 3,000 PSI, the pump crankcase operates under more thermal load than at lower pressure ratings. Conventional petroleum oils degrade faster under higher sustained operating temperatures. Forever Oil’s synthetic formulation is engineered to maintain its lubrication properties regardless of operating conditions — making the zero-maintenance oil specification especially valuable at the higher-pressure end of the axial pump range.
• No oil service interval — ever — no 50-hour break-in change. No 500-hour scheduled drain. No annual oil service. The RQV25G30-PKG’s crankcase is sealed with Forever Oil at the factory and requires no further oil attention across the pump’s service life. Install it and run.
• Brass manifold at 3,000 PSI — Forever Oil handles the crankcase. The brass manifold handles the pressure side. At 3,000 PSI, Annovi Reverberi engineers the RQV25G30-PKG with a brass manifold because the pressure cycling loads require it — the same material decision made on the RMV25G30D platform at the same operating pressure.
• Everything else included — fixed 12% injector, swivel GHA, stainless filter screen, thermal relief, hex Allen locking fasteners, 22mm outlet, and operations manual with parts schematic. The complete RMV feature set plus Forever Oil.

Engine Compatibility — What Drives the RQV25G30-PKG

F7 SAE J609a. 3/4″ Hollow Shaft. 5.5 EBHP Minimum. Direct Bolt-On to Common Small-Frame Gas Engines.

• Harbor Freight Predator 224cc / 6.6 HP Max Performance — the preferred Predator pairing for the RQV25G30-PKG at 3,000 PSI. 6.6 HP — above the 5.5 EBHP minimum with power overhead for sustained residential and contractor duty cycles. 3/4″ keyway shaft.
• Harbor Freight Predator 212cc / 6.5 HP — 3/4″ keyway shaft. 6.5 HP — marginally above the 5.5 EBHP minimum. Suitable for residential duty cycles. The Predator 224cc is preferred for sustained operation at 3,000 PSI.
• Honda GX200 / 5.5 HP — 196cc, 3/4″ keyway shaft. 5.5 HP — at the 5.5 EBHP minimum threshold. Suitable for residential duty at rated output. The Predator 212cc or 224cc provides better overhead for sustained operation.
• Briggs & Stratton XR950 — 3/4″ keyway shaft. Compatible for residential builds within engine HP limits at 3,000 PSI.
• Kohler CH270 / Command series — 3/4″ keyway shaft. Compatible for applicable small-frame configurations.

Typical Applications

• Residential pump replacement at the 3,000 PSI specification — the RQV25G30-PKG restores full original output on residential machines rated at 3,000 PSI, with Forever Oil eliminating the oil maintenance interval permanently from that machine’s service schedule
• Residential exterior cleaning — driveways, siding, decks, patios, fences, and vehicles — brass manifold 3,000 PSI performance with integrated 12% chemical delivery and zero oil maintenance for residential users who want serious cleaning power without maintenance complexity
• Contractor mobile wash rigs — compact 4.25 lb weight, complete kit, integrated chemical delivery, brass manifold durability, and no-oil-change maintenance profile for contractors running 5–7 HP machine fleets
• Agricultural equipment rinse-down and barn cleanup — brass manifold durability, stainless filter, thermal relief, and Forever Oil for demanding seasonal agricultural cleaning programs
• Match the nozzle to 3,000 PSI — the correct nozzle maximizes cleaning effectiveness at every pressure level. Explore WSHPWR’s complete selection of spray nozzles and rotating heads to get the full performance from the RQV25G30-PKG on every surface.

2-Year US Warranty, Nationwide Service Centers, and Wholesale Pricing

Engineered for Professional Pressure Washing. Forever Oil. Brass Manifold. Backed Across North America. Rebuildable.

The RQV25G30-PKG is protected by Annovi Reverberi’s 2-year limited warranty through the US-based warranty and service network administered by AR North America. Every wear component — brass manifold seals, ceramic pistons, chemical injector, thermal relief valve, and filter screen — is stocked nationally through authorized AR North America service centers. Contractors, residential users, agricultural operations, OEM builders, resellers, and volume buyers are invited to contact the WSHPWR wholesale team for pricing on the RQV25G30-PKG and the complete WSHPWR pump package lineup.

7,500 Cleaning Units. 3,000 PSI. 2.5 GPM. Brass Manifold. Forever Oil — Never Changes. Fixed 12% Injector. F7 3/4″ Shaft. Everything in One Box.

Annovi Reverberi RQV Series. Brass Manifold. Forever Oil Synthetic Blend. Fully Rebuildable. Nationwide Service. 2-Year US Warranty.

The RQV25G30-PKG is the zero-oil-maintenance 3,000 PSI brass manifold replacement pump for residential users and contractors who want the performance of a brass-head axial pump without ever thinking about an oil change again. Brass manifold. Easy Start. Forever Oil — factory-filled, never needs changing. Fixed 12% integrated injector. Swivel garden hose adapter. Stainless filter screen. Thermal relief valve. Hex Allen locking fasteners. 22mm outlet. Operations manual with parts schematic. 4.25 lbs. Two-year US warranty. Nationwide service centers. Fully rebuildable.

Volume buyers and contractors can reach the WSHPWR wholesale team directly at wholesale@wshpwr.com to discuss pricing across the complete Annovi Reverberi pump package lineup.
