RCV2G25E-F8-SX LH Electric Pump | 2.5 GPM 2500 PSI

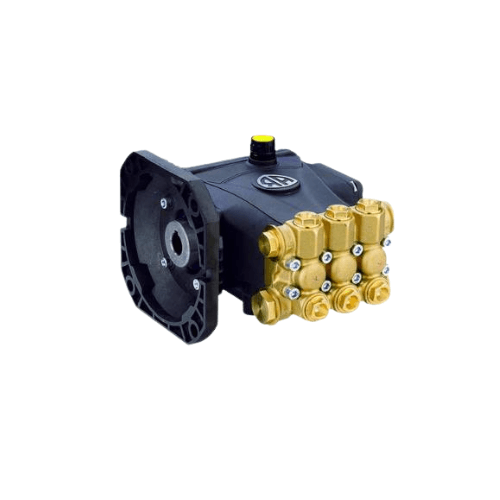

RCV2G25E-F8-SX — 2.5 GPM, 2500 PSI Left-Hand Electric Triplex Pump, F8SX Mount

• Left-hand shaft electric triplex pump engineered for specialized frame layouts and mirrored electric motor installations.
• Delivers 2.5 GPM at 2500 PSI at 3400 RPM for robust cleaning performance in compact electric systems.

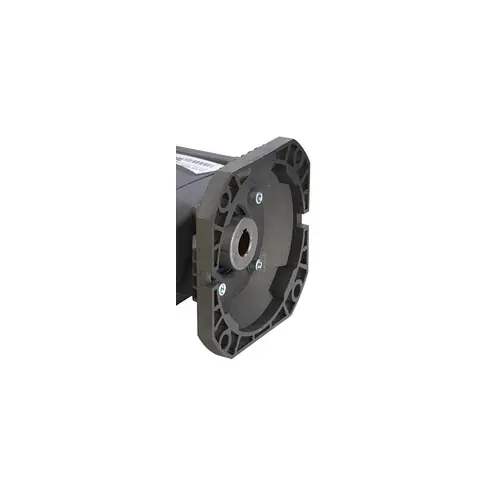

• F8SX left-hand flange supports direct coupling to compatible 56C electric motors where standard orientation will not fit.
• WSHPWR.com-ready solution for reliable operation in residential and light commercial applications that demand left-hand configuration.

Performance Specifications of RCV2G25E-F8-SX

• Flow Rate: 2.5 GPM.
• Maximum Pressure: 2500 PSI.
• Operating Speed: 3400 RPM.
• Configuration: Left-hand shaft, SX.
• Flange Type: F8SX electric mount.
• Pump Type: Triplex ceramic plunger pump.
• Warranty: 5-year manufacturer warranty.

Mounting & Integration

• Left-hand orientation supports equipment designs where standard 56C pump orientation will not match frame geometry or plumbing routing.
• Direct-drive mounting supports fast installation with repeatable alignment in high-speed electric builds.
• Compact footprint integrates into cabinet skids, service carts, and enclosed equipment-room layouts.
• Ideal for replacement installs that must preserve original left-hand layout and mounting geometry.

Included Components for RCV2G25E-F8-SX

• Factory-tested pump with break-in oil installed.
• Vented dipstick and oil sight glass.
• Operator’s manual and parts breakdown.
• 5-year warranty support with nationwide service access.

Materials & Construction

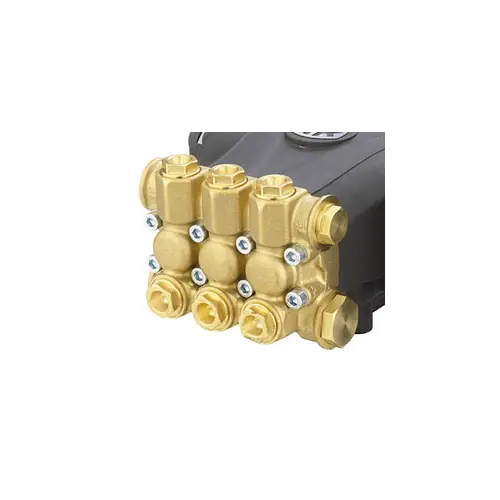

• Precision-machined brass manifold engineered for pressure stability and corrosion resistance.
• Ceramic plungers selected for wear resistance and consistent sealing performance.
• Stainless steel valves designed for durability under frequent pressure cycling.
• High-grade seals and internal components built to support extended service intervals.
• Industrial-grade bearings and hardened parts to maintain long-term tolerances.

Quality Control & Validation

• Factory pressure-tested prior to packaging.
• Sealing integrity and output verification performed during final inspection.
• Critical assembly checks completed to confirm consistent performance and reliability.
• Packaged to protect mounting surfaces and internal components during shipment.

Operating Guidance

• Use clean, filtered water supply within manufacturer requirements.
• Match electric motor horsepower and operating RPM to the intended pressure and flow.
• Confirm secure mounting, proper rotation, and electrical protection before initial start-up.
• Limit extended bypass operation per best practice to reduce heat buildup in the pump and plumbing.
• Monitor oil level and condition routinely, and follow scheduled maintenance intervals.

Key Features & Benefits of RCV2G25E-F8-SX

• Brass manifold, ceramic plungers, and stainless steel valves support long service life under repeated duty cycles.
• Triplex design reduces pulsation and vibration for smoother cleaning and improved control.
• Left-hand orientation solves tight packaging requirements and mirror-image installations.
• High-speed 3400 RPM operation supports higher productivity on larger cleaning jobs.
• Sight glass and dipstick simplify inspections and help minimize downtime.

Typical Applications

• Left-hand electric pressure washer builds and replacements.
• Residential and commercial vehicle and equipment washing.
• Shop and facility cleaning where layout requires SX configuration.
• Contractor rigs needing compact, left-hand electric pump solutions.
