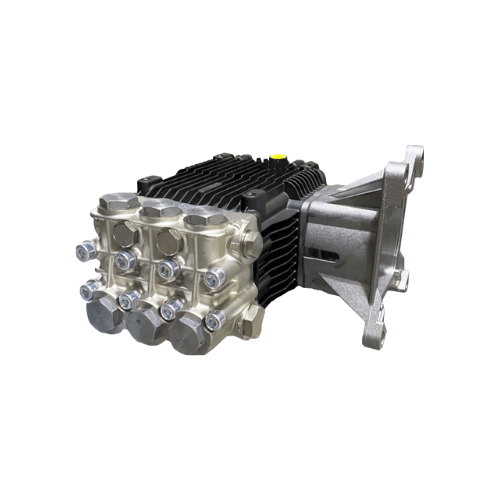

RKV4037-F24 3400 RPM Triplex Pump | F24 Mount

Overview

• The Annovi Reverberi RKV4037-F24 Triplex Pump is a high-performance pressure washer pump
  engineered for maximum durability, efficiency, and reliability in demanding commercial and industrial
  cleaning environments.
• Delivering 4.0 gallons per minute (GPM) at 3,700 PSI while running at
  3,400 RPM, it provides the strong, concentrated cleaning power needed for heavy-duty
  washing of equipment, vehicles, and large exterior surfaces.
• Its compact, direct-drive layout is optimized for skid mounts, trailer rigs, and OEM frames where space
  is limited but high output and long service life are essential.
• Built with a forged brass manifold, ceramic plungers, and stainless steel valves, the RKV4037-F24 is
  designed to stay in service under continuous high-pressure duty cycles with minimal downtime.

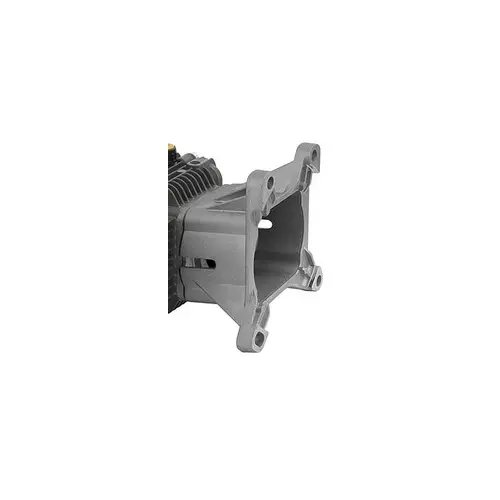

Direct-Drive F24 Flange Design

• The pump features an F24 flange and 1-inch hollow keyway shaft, allowing
  secure, direct coupling to compatible gasoline or diesel engines without the need for belts or pulleys.
• Direct drive reduces power loss through the drivetrain, delivering more usable water horsepower to the
  nozzle and improving overall cleaning efficiency.
• The 1-inch hollow shaft simplifies alignment and installation, helping OEMs and contractors complete new
  builds and pump replacements quickly and accurately.
• This configuration is ideal for mobile pressure washer skids, trailer-mounted systems, and engine-driven
  industrial wash units that run for long periods at high load.

Key Specifications

• Model: Annovi Reverberi RKV4037-F24 Triplex Pump.
• Flow Rate: 4.0 GPM for strong, productive cleaning coverage.
• Maximum Pressure: 3,700 PSI for cutting through heavy soil, oil, and grime.
• Operating Speed: 3,400 RPM high-speed design for compact, direct-drive systems.
• Pump Type: Triplex ceramic plunger pump for smooth, pulsing-free output.
• Flange Type: F24 engine flange for direct coupling to gas or diesel engines.
• Shaft Size: 1-inch hollow keyway shaft for standard engine connections.
• Manifold: Heavy-duty brass manifold for strength and corrosion resistance.
• Plungers: Precision ceramic plungers to protect seals and handle high temperatures.
• Valves: Stainless steel inlet and discharge valves for consistent performance.
• Warranty: 5-year limited warranty with nationwide service support.

Included with the Pump

• Each RKV4037-F24 pump is factory-tested under load and shipped ready to install so your
  system can be brought online quickly and confidently.
• Supplied with pre-filled break-in oil in the crankcase, eliminating the need to add oil
  before initial startup and helping ensure proper early lubrication.
• An integrated oil sight glass allows fast visual checks of oil level and condition,
  encouraging routine maintenance and extended component life.
• A vented dipstick provides crankcase relief and simple access for oil changes, making
  service straightforward for technicians in the field.
• Each pump also includes a detailed operator’s manual and schematic with parts
  diagram to support installation, troubleshooting, and future rebuilds.
• The unit ships in protective packaging to help ensure that the pump arrives damage-free and ready for
  installation. (Mounting bolts are typically sourced from the engine or frame manufacturer.)

How the Triplex Pump Works

• The RKV4037-F24 uses a triplex plunger system, where three ceramic plungers operate in
  sequence to draw water into the manifold and pressurize it through stainless steel valves.
• This configuration minimizes pulsation, delivering a smooth, consistent spray pattern that improves
  cleaning results and reduces stress on hoses, guns, and fittings.
• Operating at 3,400 RPM, the pump is tuned to provide a balance of flow and pressure that
  maximizes cleaning impact while maintaining efficiency in fuel and engine load.
• The brass manifold resists corrosion and erosion from high-velocity water and chemicals, while the
  ceramic plungers dissipate heat and protect seals for extended life.

Benefits & Performance Advantages

• Maximum cleaning power: 4.0 GPM at 3,700 PSI gives operators the muscle needed for heavy
  soil removal on machinery, vehicles, and concrete.
• Durable construction: Brass manifold, ceramic plungers, and stainless valves are selected
  for strength, corrosion resistance, and long service life in harsh environments.
• User-friendly maintenance: Pre-filled oil, sight glass, and vented dipstick make
  day-to-day service checks quick and easy, reducing downtime.
• High-speed efficiency: 3,400 RPM operation allows smaller packages with high output,
  ideal for compact engine-driven pressure washer frames and skids.
• Professional reliability: Engineered for continuous use, the RKV4037-F24 is well-suited
  for contractors and facilities that run pumps for extended shifts.
• Warranty coverage: A 5-year warranty and U.S. service network provide long-term support
  and confidence in your investment.

Typical Applications

• Heavy machinery cleaning: Ideal for construction, mining, forestry, and manufacturing
  equipment that must be washed between jobs or shifts.
• Fleet and vehicle washing: Provides the balanced flow and pressure needed for trucks,
  buses, service vehicles, and agricultural machinery.
• Concrete and surface cleaning: Effective on sidewalks, driveways, loading docks, shop
  floors, and industrial yards where deep cleaning is required.
• Commercial facilities: Suited for storefronts, warehouses, garages, and service bays that
  require regular high-pressure washdowns.
• Industrial maintenance: Works well in fixed wash-down stations and centralized cleaning
  systems inside plants and workshops.

Why Choose the RKV4037-F24?

• The RKV4037-F24 is a professional-grade pump specifically built to handle tough cleaning
  challenges where ordinary consumer pumps fall short.
• Direct engine mounting via the F24 flange eliminates alignment issues, simplifies
  installation, and reduces components that can loosen or wear over time.
• Its combination of high PSI, strong GPM, and durable materials helps crews complete jobs
  faster, improving productivity and reducing labor costs.
• When paired with proper filtration, unloader selection, and routine maintenance, this pump
  offers long-term reliability for contractors, rental fleets, and industrial users alike.
• For operations that demand powerful performance, easy installation, and long-lasting
  durability, the Annovi Reverberi RKV4037-F24 Triplex Pump is a clear, proven choice.
