RKV35G33DAFC2I | 3.0 GPM 3300 PSI Triplex Pump Unloader Installed

RKV35G33DAFC2I by Annovi Reverberi — RK Series Triplex Plunger Pump with AF C2I Unloader and Chemical Injector | 3.0 GPM | 3,300 PSI | Bronze Connecting Rods | Brass Manifold | 1″ Hollow Keyway Shaft | Direct Gas Drive

The RKV35G33DAFC2I by Annovi Reverberi is a professional-grade RK Series triplex ceramic plunger pump engineered for gas engine-driven commercial, contractor, and industrial pressure washing systems requiring 3.0 GPM at 3,300 PSI with integrated downstream chemical application capability. Rated at 3.0 GPM and 3,300 PSI at 3,400 RPM, the RKV35G33DAFC2I delivers 9,900 cleaning units — combining 3.0 GPM flow with 3,300 PSI cutting pressure for heavy grime, grease, and contaminants on fleet vehicles, construction equipment, agricultural machinery, and industrial surfaces — through an anodized aluminum crankcase with bronze connecting rods, solid ceramic plungers, precision-machined brass manifold, stainless steel valves, and a 1″ hollow keyway shaft for direct coupling to compatible gas engines.

The RKV35G33DAFC2I carries the AF C2I integrated unloader and chemical injection system — factory-installed as a complete assembly that combines adjustable bypass pressure regulation with on-demand downstream chemical injection, simplifying system plumbing, reducing external components, and delivering the two-mode wash platform from a single factory-configured unit. Built by Annovi Reverberi in Modena, Italy — with US-based operations, a domestic parts distribution network, and dedicated AR North America technical support — this pump arrives pre-filled with AR break-in oil, factory-tested, and ready for immediate installation. Protected by a 5-year US limited warranty through AR North America and built to be fully rebuilt rather than replaced, the RKV35G33DAFC2I is a long-term investment capable of a decade of productive service life.

Factory-Matched and Approved — The RKV35G33DAFC2I Complete Assembly Advantage

No Mismatches. No Guesswork. No Warranty Risk. Just Install and Run.

Every RKV35G33DAFC2I ships as a factory-matched, factory-approved, and factory-installed complete pump and unloader assembly:

• Factory-matched AF C2I for 3,300 PSI — the AF C2I integrated unloader and injector are factory-calibrated for this pump’s specific 3.0 GPM / 3,300 PSI duty point. Pressure regulation, bypass response, and chemical draw characteristics are factory-set as a complete system.
• Factory-approved configuration — the complete assembly is AR North America’s validated specification for this model. Operating with the factory-installed components maintains full 5-year warranty coverage.
• Factory-installed and tested — every RKV35G33DAFC2I exits the AR manufacturing facility with the AF C2I assembly mounted, calibrated, and tested for flow, pressure, and leak-free operation before shipment.
• Eliminates mismatch returns — the factory-matched assembly eliminates incorrect unloader or injector specification — the most common source of pump system returns — before the pump leaves the box.
• Stress-free installation — mount to the engine, connect system hoses, connect the detergent supply line to the injector port, add fuel, and start. Ready from day one.

Decoding the RKV35G33DAFC2I Model Number

What Every Segment of This AR Pump Designation Tells You

• RKV — Pump series: RK Series triplex plunger pump — AR’s commercial industrial pump platform with front-access piston packing and valve serviceability
• 35G — Pump series identifier for this RKV configuration
• 33 — Maximum pressure: 3,300 PSI — 3.0 × 3,300 = 9,900 cleaning units
• D — Shaft version: Direct Gas Drive — 1″ hollow keyway crankshaft bore for direct coupling to gas engine output shafts per AR North America model designation convention
• AF — Integrated unloader assembly configuration — factory-installed adjustable C2 bypass unloader with chemical injector as a combined unit
• C2I — Unloader and injector code: Gymatic C2 with integrated downstream chemical injector — AR’s factory-approved specification for this model

Key Specifications

RKV35G33DAFC2I Technical Details at a Glance

• Flow Rate: 3.0 GPM (gallons per minute)
• Maximum Pressure: 3,300 PSI
• Cleaning Units: 9,900 (GPM × PSI)
• Operating Speed: 3,400 RPM
• Pump Type: RK Series triplex ceramic plunger pump — three-piston crankshaft-driven design for smooth, low-pulsation output
• Crankshaft Bore: 1″ hollow keyway — direct engagement with gas engine 1″ output shaft
• Crankcase: Anodized aluminum with oil-bath lubrication — anodized surface provides enhanced hardness and corrosion resistance on the crankcase housing for continuous-duty operation
• Manifold Material: Precision-machined brass — corrosion resistance, pressure fatigue resistance, and thermal stability
• Plungers: Solid ceramic — precision-ground for consistent reciprocating motion, reduced seal wear, and extended service intervals
• Connecting Rods: Bronze — strength, durability, and smooth power transfer at 3,400 RPM
• Valves: Stainless steel — consistent intake and discharge flow control resistant to wear and chemical exposure
• Serviceability: Oil sight glass and vented dipstick for simplified routine maintenance
• Lubrication: Oil-bath crankcase with factory pre-filled break-in oil
• Unloader System: AF C2I — integrated adjustable C2 bypass unloader with downstream chemical injector; factory-matched and factory-installed as AR’s approved specification for this model
• Chemical Injector: Included — downstream venturi injector factory-integrated into AF C2I assembly
• Warranty: 5-year limited warranty — US-based coverage through AR North America

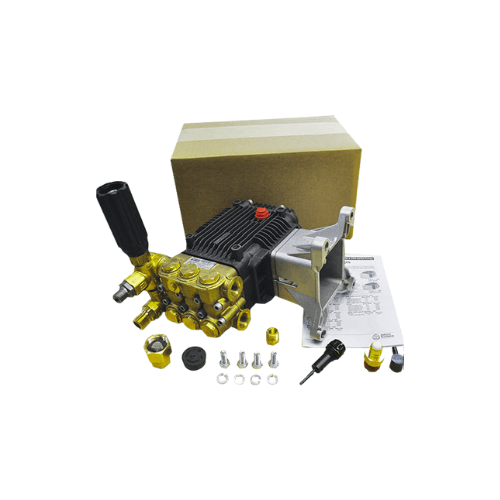

What’s Included in the Box

A Complete, Factory-Configured RKV35G33DAFC2I Assembly Ready for Installation

• Factory-installed AF C2I integrated unloader with active chemical injector — calibrated and installed for the 3.0 GPM / 3,300 PSI operating point; injector port ready for detergent supply line connection
• AR factory break-in oil — crankcase pre-filled to the correct operating level for first startup
• Oil sight glass and vented dipstick — at-a-glance oil level monitoring and simplified oil changes
• Mounting hardware — sized for direct-drive installation on compatible gas engines
• Operator’s manual — complete installation, startup, operating, and maintenance procedures including oil change intervals, chemical injector care, and winterization protocol
• Parts schematic — exploded-view diagram with AR part numbers for every serviceable component
• Factory performance test verification — every RKV35G33DAFC2I tested for pressure, flow, and leak-free operation before shipment

AF C2I Integrated Unloader — Two-Mode Platform at 3,300 PSI

Factory-Approved. Adjustable Bypass. Integrated Chemical Feed. Simplified Plumbing.

• Integrated bypass and injection in a single assembly — the AF C2I on the RKV35G33DAFC2I combines adjustable bypass pressure regulation and downstream chemical injection in one factory-installed unit, eliminating the need for separate external injectors and reducing total fitting count and potential leak points
• Adjustable C2 bypass unloader — regulates system pressure by diverting excess flow when the trigger gun is released, reducing shock loads and extending component life across continuous cleaning operations
• Downstream chemical injection — draws detergent or cleaning solution into the water stream when the operator switches to low-pressure application mode on the RKV35G33DAFC2I. Consistent chemical application without external injector hardware.
• Two-mode workflow at 3.0 GPM / 3,300 PSI — chemical pre-soak breaks down grease, road film, and contamination; full 3,300 PSI / 3.0 GPM rinse removes loosened material. Switch between modes without changing tools.
• Improved efficiency and reduced downtime — integrated design speeds setup, simplifies troubleshooting, and supports faster transitions between detergent and rinse modes in the field on the RKV35G33DAFC2I
• Injector maintenance — flush the injector circuit with clean water after every detergent session to preserve long-term venturi function

Construction — Bronze Rods, Ceramic Plungers, Brass Manifold, Anodized Aluminum Crankcase

Premium Materials for Continuous Commercial Duty at 3,300 PSI

• Bronze connecting rods on the RKV35G33DAFC2I driven by a balanced crankshaft supported by heavy-duty bearings ensure smooth power transfer and reduced vibration at 3,400 RPM across extended commercial duty cycles
• Solid ceramic plungers operate cooler than steel alternatives, reducing seal wear and extending maintenance intervals. Precision-ground for consistent reciprocating motion and long-term dimensional stability.
• Precision-machined brass manifold provides excellent corrosion resistance, pressure fatigue resistance, and thermal stability while maintaining precise sealing surfaces for long service life
• Stainless steel valves manage intake and discharge flow with accuracy and reliability, maintaining consistent 3,300 PSI pressure while resisting wear and chemical exposure
• Anodized aluminum crankcase with oil-bath lubrication provides a compact, lightweight housing that dissipates heat efficiently during continuous operation on the RKV35G33DAFC2I, protecting moving parts from friction and wear

Typical Applications

Where the RKV35G33DAFC2I Delivers Best Results

• Commercial pressure washing and contractor cleaning — the RKV35G33DAFC2I’s factory-integrated two-mode capability and compact direct-drive design support efficient daily field operations across building exteriors, concrete surfaces, and commercial cleaning accounts
• Fleet washing for trucks, buses, and heavy equipment — integrated chemical application and 3,300 PSI cleaning force handle road film and grease efficiently without separate injector hardware
• Agricultural equipment and barn washdown — tractors, implements, and farm facilities where on-demand detergent capability and 3,300 PSI impact handle agricultural contamination on gas engine-powered rigs
• Industrial facility maintenance and machinery cleaning — the RKV35G33DAFC2I’s two-mode output supports both chemical pre-soak and high-pressure rinsing from a single factory-matched assembly
• Property management and commercial building maintenance — balanced 3.0 GPM flow and 3,300 PSI impact deliver effective results across a wide range of commercial property cleaning tasks
• Mobile wash rigs and trailer-mounted systems — compact direct-drive design and factory-matched AF C2I assembly support efficient integration into professional mobile cleaning operations

For operators who prefer a fully configured direct-drive system rather than a bare pump assembly, WSHPWR also carries complete gas and diesel engine pump packages ready to mount on a frame or trailer.

5-Year US Warranty, Full Rebuildability, and Wholesale Pricing

RK Series Performance Backed by Domestic Support

The RKV35G33DAFC2I is protected by Annovi Reverberi’s 5-year limited warranty through AR North America’s US-based warranty and service network. Every internal wear component — solid ceramic plungers, bronze connecting rods, brass manifold seals and o-rings, stainless valve seats and springs, AF C2I unloader service parts, piston packing kits, and crankcase bearings — is stocked domestically through AR’s authorized distribution channels. Contractors, rental fleet operators, municipal purchasing departments, resellers, and volume buyers are invited to contact the WSHPWR wholesale team for pricing on the RKV35G33DAFC2I and the complete Annovi Reverberi pump and unloader assembly line. WSHPWR maintains one of the most complete AR North America inventories available through any US web store — with thousands of AR products in stock and a continually expanding catalog.

9,900 Cleaning Units. 3,300 PSI. 3.0 GPM. Factory-Matched AF C2I. Two-Mode Chemical Capability.

Italian Engineering. Factory-Approved Assembly. Bronze Rods. Integrated Chemical Feed. US Warranty Coverage.

For contractors, fleet operators, agricultural teams, industrial maintenance professionals, and mobile wash operators who need 3.0 GPM at 3,300 PSI in a factory-matched, factory-approved complete assembly with the AF C2I integrated bypass unloader and chemical injector for two-mode wash capability, bronze connecting rods and ceramic plungers for commercial-duty reliability, and stress-free installation from day one, the RKV35G33DAFC2I delivers a properly engineered, completely rebuildable solution from one of the global pressure pump industry’s most trusted manufacturers. Five years of US warranty. A decade of service life.

Volume buyers can reach the WSHPWR wholesale team directly at wholesale@wshpwr.com to discuss pricing for quantity purchases across the complete Annovi Reverberi lineup.
