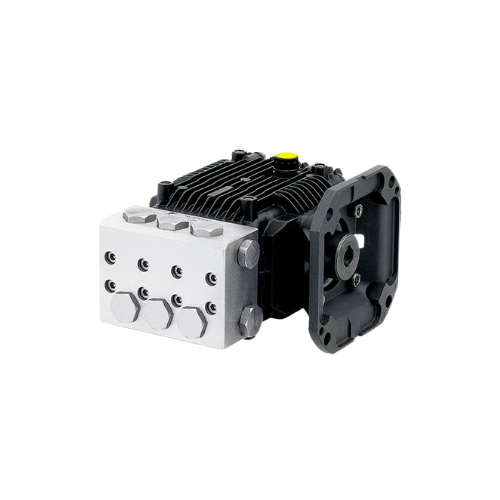

RKASS36G12E-F33 | Stainless Triplex Pump, 3.6 GPM 1200 PSI, 56C Flange

RKASS36G12E-F33 — 3.6 GPM 1200 PSI Stainless Triplex Pump, 1750 RPM, F33 / 56C Mount

• The RKASS36G12E-F33 is a stainless-head industrial triplex plunger pump engineered for direct-drive integration with NEMA 56C electric motors in washdown and sanitation systems.
• Rated 3.6 GPM at 1200 PSI and operating at 1750 RPM, it provides a controlled balance of flow and pressure suitable for medium-duty cleaning, rinsing, and daily facility maintenance.
• A 5/8″ hollow shaft with F33 face-mount flange allows the pump to bolt directly to the motor, reducing alignment work and simplifying overall system design.
• Stainless steel head, stainless valves, ceramic plungers, and oversized bearings are specified for long service life in food, beverage, industrial, and commercial environments where uptime matters.

Performance and Operating Profile

• The RKASS36G12E-F33 delivers 3.6 GPM at 1200 PSI, giving maintenance teams and OEMs enough cleaning capacity for floors, equipment, walls, and vehicles without oversizing the motor or plumbing.
• Operating at 1750 RPM, the pump aligns with standard 4-pole motor speeds, offering smooth running characteristics and manageable noise levels in indoor mechanical rooms and production spaces.
• Triplex plunger geometry provides low-pulsation output, improving gun and nozzle control, reducing stress on hoses and fittings, and helping extend accessory life.
• The duty envelope is designed for frequent or continuous use in sanitation, washdown, and medium-duty cleaning routines where reliable output is required every shift.

Flow, Pressure, and Duty Range – RKASS36G12E-F33

• 3.6 GPM offers a practical balance of volume and control, supporting effective rinsing and chemical removal on equipment, conveyors, vehicles, and structural surfaces.
• 1200 PSI provides solid washing impact for many industrial and commercial soils while remaining manageable on coatings, floor finishes, and softer substrates when used correctly.
• When combined with properly sized nozzles and a correctly set unloader, the pump maintains stable working pressure over long duty cycles with minimal fluctuation.
• The performance window suits single-gun stations, small manifolds, and compact skids where medium-duty cleaning is performed routinely rather than occasionally.

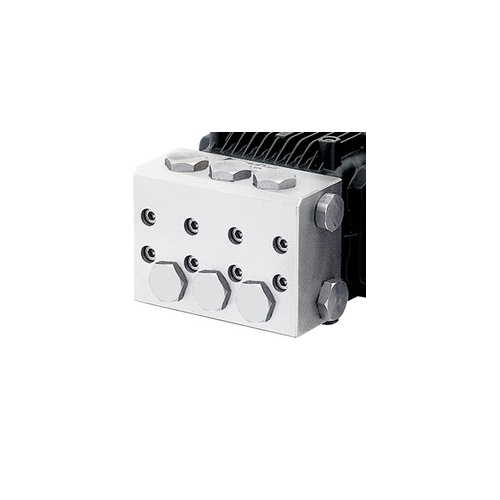

Stainless Construction and Wet-End Design

• The stainless steel head RKASS36G12E-F33 is specified for environments exposed to detergents, sanitizers, caustics, and food residues, offering enhanced corrosion resistance over standard brass designs.
• Stainless steel valves provide precise seating and durable flow control, supporting consistent volumetric efficiency under frequent cycling and chemical exposure.
• Solid ceramic plungers present a hard, dimensionally stable surface to the high-pressure packing, reducing wear and minimizing heat transfer into the seal area.
• Oversized bearings and a robust crankshaft are selected to carry radial and axial loads at 1750 RPM, keeping the rotating group stable during continuous-duty operation.

Seals, Valves, and Serviceability of RKASS36G12E-F33

• High-pressure seal sets are configured for 1200 PSI operation when used with clean water and compatible cleaning chemicals within the manufacturer’s temperature and concentration limits.
• Valve and seal kits are available so maintenance personnel can rebuild the wet end, restoring flow and pressure without replacing the complete pump assembly.
• The head and valve layout is designed for straightforward access using common shop tools, allowing scheduled packing and valve changes to be performed during planned shutdowns.
• Effective inlet filtration, proper suction line sizing, and correct chemical injection practices further extend seal and valve life, keeping service intervals predictable.

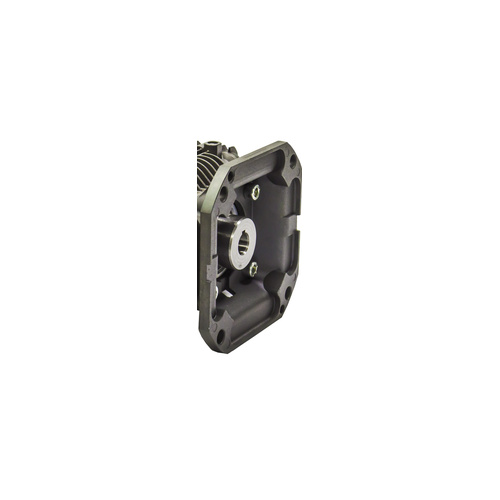

56C Direct-Drive Integration and Layout

• The RKASS36G12E-F33 – F33 / 56C face-mount interface allows the pump to bolt directly to NEMA 56C motors using the 5/8″ hollow shaft, creating a compact, rigid pump-and-motor assembly.
• Direct coupling removes the need for separate flexible couplers or belt drives, reducing alignment complexity and eliminating belt maintenance in electric wash systems.
• The compact geometry is well suited for wall-mounted frames, carts, skid packages, and cabinet systems where space and access are limited.
• With the pump supported at the motor face, vibration characteristics are consistent and can be managed easily with standard mounting hardware and isolation pads.

System Design and Controls for RKASS36G12E-F33

• The 1750 RPM speed is compatible with across-the-line starters, soft starters, or VFD-controlled motors, giving facilities flexibility in controlling starting current and acceleration.
• Proper motor horsepower selection, overload sizing, and protective device coordination should be matched to unloader settings, hose ratings, and nozzle sizes to keep the system within the pump’s operating window.
• The direct-drive configuration simplifies guard design and allows hose reels, chemical injectors, and control panels to be grouped around a single, compact power module.
• When installed with correctly sized unloaders, relief valves, and bypass piping, the system can operate safely in continuous or frequent-start applications.

Maintenance, Inspection, and Reliability

• The crankcase is shipped with pre-filled break-in oil, simplifying initial commissioning and protecting internal components through the first hours of operation.
• An integrated oil sight glass allows quick visual verification of oil level and basic condition as part of daily or pre-shift inspection routines.
• The vented dipstick regulates crankcase pressure and provides access for draining and refilling oil at scheduled service intervals.
• When operated within specified limits for inlet pressure, temperature, speed, and lubrication, the RKASS36G12E-F33 is designed for long, predictable service life in demanding washdown environments.

Preventive Maintenance Practices

• Recommended checks include monitoring oil level and clarity, inspecting the head and fittings for seepage, verifying unloader function, and confirming stable system pressure during normal use.
• Seal and valve replacement intervals can be established based on run hours, water quality, chemical exposure, and temperature, aligning rebuilds with plant maintenance schedules.
• Regular cleaning of inlet strainers and inspection of suction hoses help prevent cavitation and flow restriction that can shorten pump life.
• Recording service events and following consistent rebuild procedures enables the pump to remain in service through multiple overhaul cycles, improving lifecycle value.

Applications and Use Cases for RKASS36G12E-F33

• Food-grade washdown and USDA-style sanitation systems where stainless wet-end components and electric drive are preferred for hygiene and ventilation control.
• Commercial kitchen hood and duct cleaning rigs that require moderate pressure, reliable flow, and corrosion-resistant construction.
• Pipe, tank, and equipment rinse systems in beverage plants, packaging facilities, and light industrial operations.
• Vehicle wash stations in municipal, rental, and fleet facilities that rely on indoor electric pressure systems for daily cleaning.
• Meat and poultry processing plants, dairy facilities, and food warehouses where routine washdown is part of every shift.
• OEM-built electric skids, cabinet washers, and compact sanitation modules that require a stainless triplex pump in a 56C direct-drive configuration.
