RKA4G30HE-F17 | Industrial Triplex Pump, 4.0 GPM 3000 PSI

Product Summary

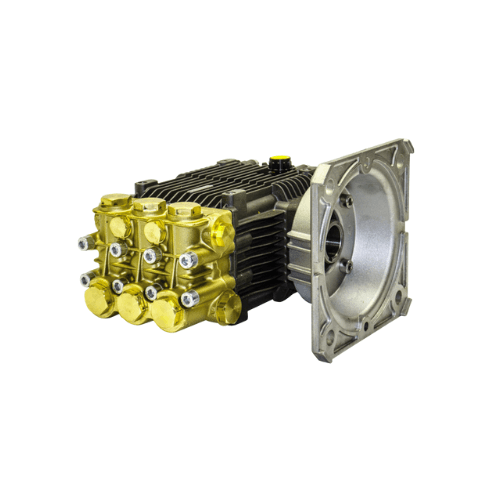

• RKA4G30HE-F17 triplex ceramic plunger pump engineered for demanding wash environments where corrosion resistance and uptime matter.
• Delivers 4.0 GPM at 3000 PSI at 1750 RPM for industrial cleaning power with cooler, longer-life operation.
• Nickel-plated manifold provides enhanced corrosion protection for chemical exposure and challenging water conditions.

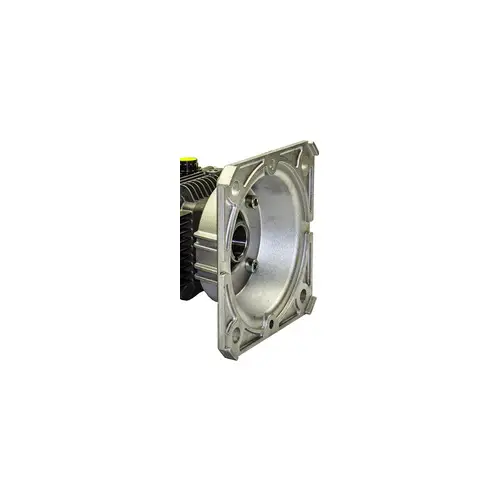

• F17 motor mount with 1-1/8″ hollow shaft supports direct coupling to NEMA 182–184 electric motors.
• Backed by a 5-year manufacturer warranty for professional and industrial duty applications.

System Configuration

• Triplex crankshaft-drive architecture designed for smooth flow delivery and stable pressure under load.
• Low-speed 1750 RPM platform supports reduced operating temperature and extended seal and bearing life.
• Direct-coupled F17 motor mount eliminates belt alignment requirements and reduces build complexity.
• 1-1/8″ hollow shaft interface supports rigid coupling on compatible NEMA 182–184 motor frames.
• Nickel-plated head configuration supports use in corrosive wash programs and harsh facility environments.

Performance Specifications

• Model: RKA4G30HE-F17.
• Rated Flow: 4.0 gallons per minute.
• Rated Pressure: 3000 PSI.
• Operating Speed: 1750 RPM.
• Head: Nickel-plated manifold for harsh environments.
• Mount / Shaft: F17 flange with 1-1/8″ hollow shaft interface.
• Pump Type: Triplex ceramic plunger pump.
• Warranty: 5-year manufacturer warranty.

Included Components

• Pump factory pre-filled with break-in oil.
• Oil sight glass and vented dipstick for straightforward oil monitoring and service access.
• Mounting hardware for compatible F17 electric motors.
• Operation manual, schematic, and factory test report.
• Configured as a pump-only solution to pair with an unloader/regulator matched to 4.0 GPM systems.

Packaging & Deployment

• Direct-mount motor interface reduces installation time and eliminates belt alignment work.
• Nickel-plated head supports longer component life in corrosive wash programs.
• Low-speed operation supports extended runtime with stable thermal behavior in stationary systems.
• Documentation supports consistent commissioning, parts identification, and planned maintenance.

Materials & Quality Control

• Nickel-plated manifold engineered to resist corrosion and maintain sealing surfaces over long service life.

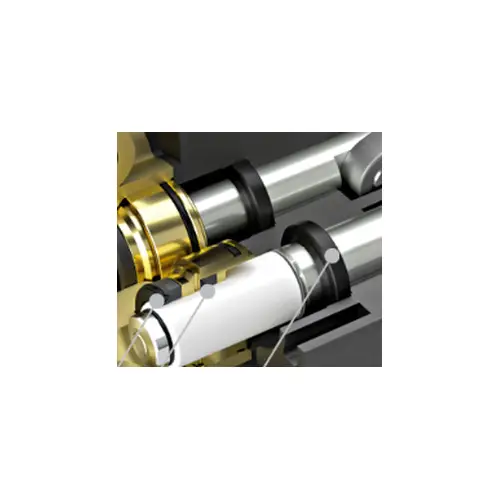

• Ceramic plungers selected for wear resistance and stable sealing performance under pressure.
• Stainless steel valves support corrosion resistance and consistent seating under continuous duty.
• Industrial-duty sealing system designed to retain pressure and reduce leakage over extended runtime.
• Factory assembly and functional verification performed prior to shipment and distribution.

Manufacturing Standards

• Manufactured to industrial-duty triplex pump RKA4G30HE-F17 production standards.
• Designed to meet published performance ratings at 1750 RPM operation.
• Factory test report supports commissioning documentation and maintenance records.
• Warranty coverage supports contractor and industrial users running scheduled wash programs.

Operating Guidance

• Confirm motor compatibility with the NEMA 182–184 F17 1-1/8″ hollow shaft interface before installation.
• Use clean water supply and proper inlet filtration to protect valves, packings, and plungers.
• Verify supply flow is adequate for 4.0 GPM operation before extended runtime.
• Pair with an unloader/regulator sized to 4.0 GPM and set pressure at the nozzle under load.
• Use approved chemicals and flush with clean water after chemical exposure to support long-term corrosion protection.

Service & Maintenance

• Monitor oil level through the sight glass and service oil per manufacturer intervals.
• Inspect plumbing connections for leaks and air ingestion during routine inspections.
• Keep inlet strainers clean to prevent cavitation and pressure instability.

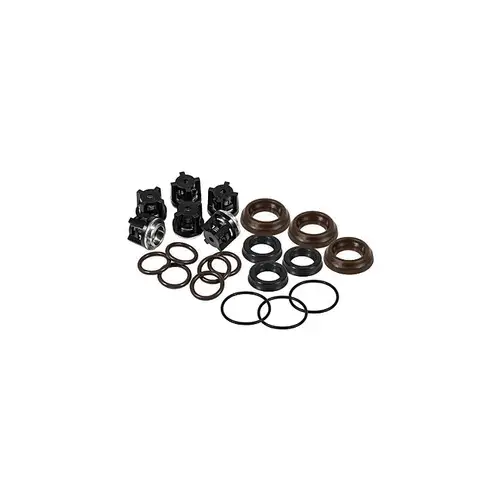

• Inspect packings and valves on a schedule matched to duty cycle and water quality.
• Use the parts schematic and test report to support rebuild planning and maintenance tracking.

Applications

• Commercial and industrial pressure washer systems and stationary wash bays.
• Fleet and vehicle-wash operations requiring consistent output and extended runtime.
• Agricultural and construction equipment cleaning and facility washdown.
• Municipal and contract cleaning facilities and sanitation programs.
• Harsh-environment wash applications where corrosion resistance is a priority.
