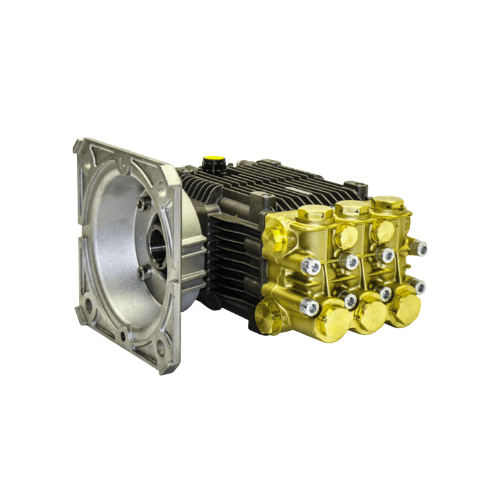

RKA4G30ESX-F17 Triplex Pump | 4.0 GPM 3000 PSI F17

Product Summary

• RKA4G30ESX-F17 left-hand triplex ceramic plunger pump engineered for electric-motor pressure washer systems with specialized layouts.
• Delivers 4.0 GPM at 3000 PSI at 1750 RPM for industrial-grade cleaning power with cooler, longer-life operation.

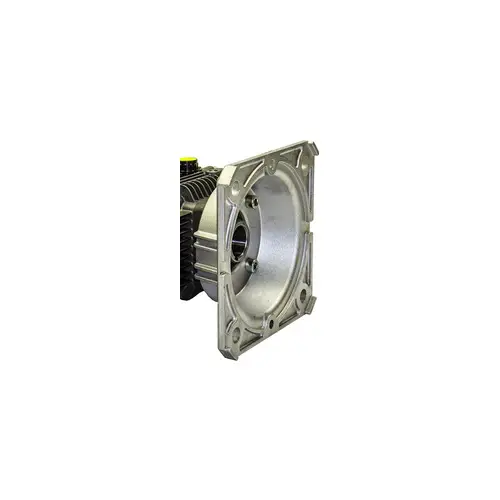

• ESX-F17 left-hand shaft configuration supports direct mounting on NEMA 182–184 motors using a 1-1/8″ hollow shaft interface.
• 12,000 ECU output provides efficient cleaning performance for wash bays, fleets, and facility maintenance programs.
• Backed by a 5-year manufacturer warranty for professional and industrial duty environments.

System Configuration

• Triplex crankshaft-drive architecture designed for smooth flow delivery and stable pressure under load.
• Low-speed 1750 RPM platform supports reduced operating temperature and extended seal and bearing life.
• Direct-mount ESX-F17 configuration provides rigid coupling to compatible electric motors without belt alignment.
• Left-hand orientation supports mirror-image frames, dual-pump systems, and space-driven equipment layouts.
• Optimized for stationary wash systems where uptime, re-buildability, and consistent performance matter.

Performance Specifications of RKA4G30ESX-F17

• Rated Flow: 4.0 gallons per minute.
• Rated Pressure: 3000 PSI.
• Operating Speed: 1750 RPM.
• Configuration: Left-hand ESX-F17 shaft.
• Motor Compatibility: NEMA 182–184 flange with 1-1/8″ hollow shaft interface.
• Pump Type: Triplex ceramic plunger pump.
• ECU: 12,000 Effective Cleaning Units.
• Warranty: 5-year manufacturer coverage.

Included Components with RKA4G30ESX-F17

• Pump supplied pre-filled with break-in oil.
• Oil sight glass and vented dipstick for straightforward oil monitoring and service access.
• Operator’s manual and parts breakdown schematic.
• Configured as a pump-only solution to pair with an unloader/regulator matched to 4.0 GPM systems.

Packaging & Deployment

• Direct-mount motor interface reduces installation time and eliminates belt alignment work.
• Left-hand orientation simplifies integration on mirrored frames and specialty equipment layouts.
• Low-speed operation supports extended runtime with stable thermal behavior in wash bays.
• Documentation supports consistent commissioning and long-term service planning.

Materials & Quality Control

• Forged brass manifold engineered for durability in continuous wet-service environments.

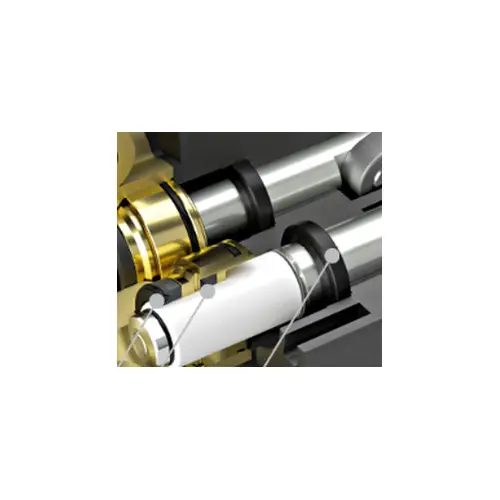

• Ceramic plungers selected for wear resistance and stable long-term sealing performance.
• Stainless steel valves support corrosion resistance and consistent seating under load.
• Industrial-duty sealing system designed to retain pressure and reduce leakage over extended runtime.
• Factory assembly and functional verification performed prior to packaging and distribution.

Manufacturing Standards of RKA4G30ESX-F17

• Manufactured to industrial-duty triplex pump production standards.
• Designed to meet published performance ratings at 1750 RPM operation.
• Service documentation included for maintenance planning and rebuild scheduling.
• Warranty coverage supports commercial and industrial cleaning operations.

Operating Guidance

• Confirm motor compatibility with the NEMA 182–184 ESX-F17 1-1/8″ hollow shaft interface before installation.
• Use clean water supply and proper inlet filtration to protect valves, packings, and plungers.
• Verify supply flow is adequate for 4.0 GPM operation before extended runtime.
• Pair with an unloader/regulator sized to 4.0 GPM and set pressure at the nozzle under load.
• Follow the operator’s manual for break-in procedure, oil service intervals, and winterization.

Service & Maintenance

• Monitor oil level through the sight glass and service oil per manufacturer intervals.
• Inspect plumbing connections for leaks and air ingestion during routine inspections.
• Keep inlet strainers clean to prevent cavitation and pressure instability.
• Inspect packings and valves on a schedule matched to duty cycle and water quality.

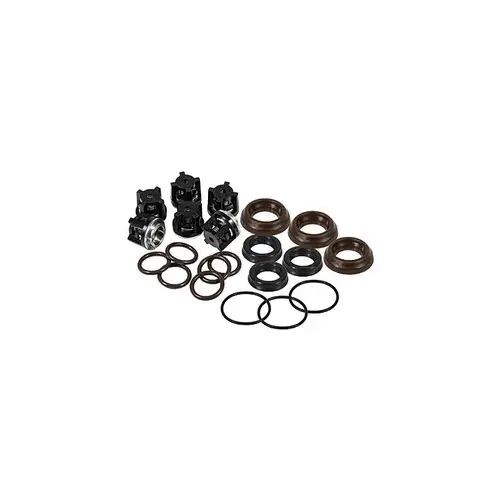

• Use the parts schematic to plan rebuild kits and minimize downtime during service events.

Applications for RKA4G30ESX-F17

• Industrial equipment and factory washdown operations.
• Concrete cleaning and surface preparation programs.
• Fleet and service-vehicle cleaning systems.
• Professional commercial pressure-washing systems and stationary wash bays.
• Specialty electric-motor layouts requiring left-hand pump orientation.
