RKA35G30E-F17SX LH Triplex Pump | 3.5 GPM 3000 PSI

RKA35G30E-F17SX — 3.5 GPM, 3000 PSI Left-Hand Triplex Pump, 1750 RPM

Overview

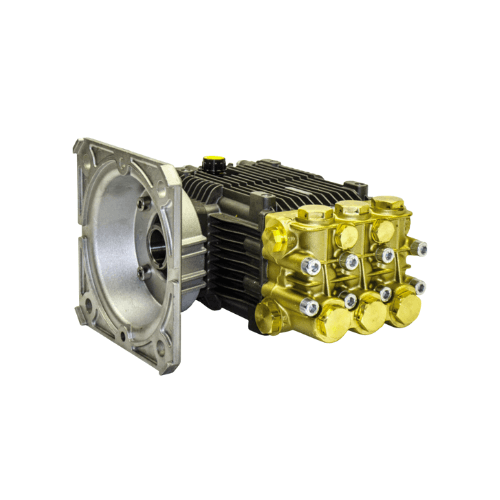

• High-performance triplex plunger pump for commercial and light industrial cleaning systems.
• Delivers 3.5 GPM at 3000 PSI with a left-hand F17SX shaft configuration for specialized layouts.
• Engineered for direct mounting to NEMA 182–184 frame electric motors.
• 10,500 ECU (Effective Cleaning Units) rating supports efficient, professional-grade cleaning performance.

Key Specifications

• Model: RKA35G30E-F17SX.
• Flow Rate: 3.5 GPM.
• Maximum Pressure: 3000 PSI.
• Operating Speed: 1750 RPM.
• Configuration: Left-hand F17SX shaft.

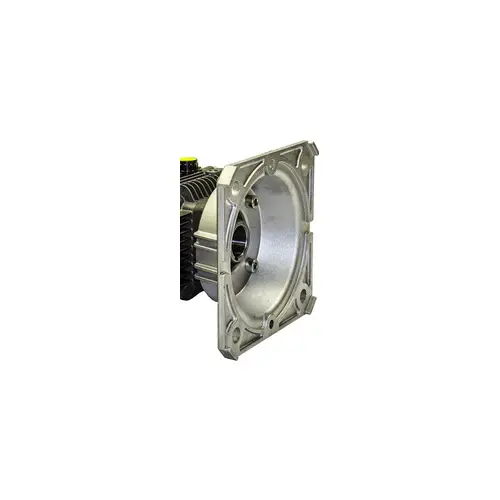

• Motor Compatibility: NEMA 182–184 flange, 1-1/8″ hollow shaft.
• Pump Type: Triplex ceramic plunger pump.
• ECU Rating: 10,500.
• Warranty: 5-year limited manufacturer coverage.

What’s Included with RKA35G30E-F17SX

• Pre-filled crankcase with premium break-in oil.
• Vented dipstick for quick oil checks and proper ventilation.
• Oil sight glass for easy, visual monitoring of oil level.
• Complete operator’s manual and parts breakdown schematic.
• Access to a nationwide Annovi Reverberi service and support network.

Key Features & Benefits of RKA35G30E-F17SX

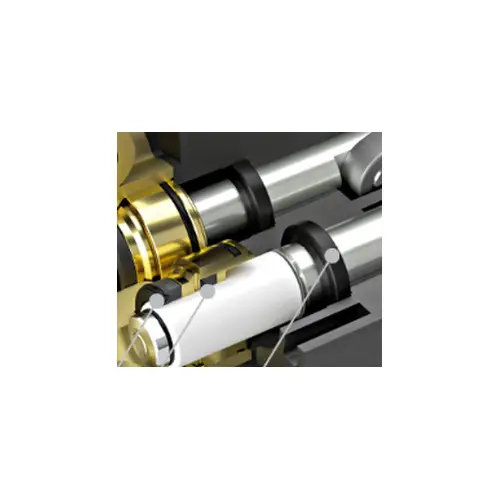

• Smooth, pulse-reduced output from the triplex ceramic plunger design.
• Brass manifold and stainless steel valves support durability and corrosion resistance.
• Left-hand F17SX shaft configuration integrates into specialized motor and frame layouts.
• Low-maintenance design with easy-access service points and clear lubrication checkpoints.

Typical Applications

• Industrial equipment cleaning and maintenance wash bays.
• Concrete, sidewalk, and surface preparation work.
• Commercial pressure washing and storefront cleaning systems.
• Fleet and vehicle maintenance operations in shops and depots.
