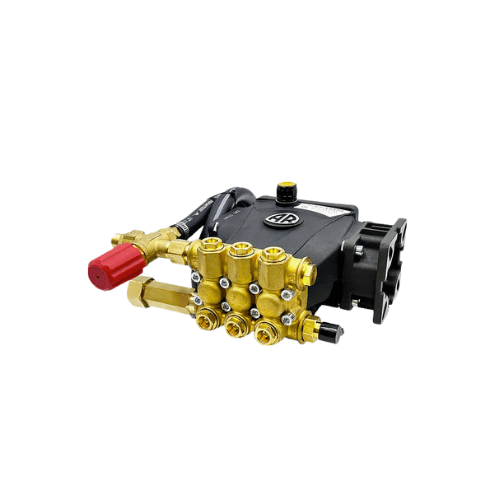

RCV3G25D-VR54-PKG | 3 GPM 2500 PSI VR54 Pump Kit Package Assembly

RCV3G25D-VR54-PKG by Annovi Reverberi — Complete RC Series Axial Radial Pump with VR54-200 Direct-Mount Unloader Package | 3.0 GPM | 2,500 PSI | Forged Brass Manifold | VR54 External Bypass Cooling | Red Adjustment Cap | F7 3/4″ Shaft | Fixed 12% Injector | 7,500 Cleaning Units

The RCV3G25D-VR54-PKG by Annovi Reverberi is a complete RC Series triplex plunger pump package paired with the VR54-200 T-body direct-mount unloader — delivering 3.0 GPM at 2,500 PSI with the external bypass cooling, tamper-proof locking collar, and gauge-ready top port that make the VR54 the preferred unloader for rental store operators and fleet cleaning crews who demand long service life from a simple, dependable design. Rated at 3.0 GPM and 2,500 PSI, the RCV3G25D-VR54-PKG delivers 7,500 cleaning units — through a forged brass manifold, ceramic pistons, a VR54-200 T-body unloader rated to 2,900 PSI continuous and approved to 3,200 PSI intermittent, external bypass cooling during recirculation, and a 3/4″ hollow F7 shaft for direct coupling to compatible 5–7 HP gasoline engines. As part of Annovi Reverberi’s pump package lineup stocked and supported by WSHPWR, the RCV3G25D-VR54-PKG is the complete answer for operators who want a professionally specified VR54 direct-mount unloader system at the 2,500 PSI compact engine output level. Protected by a 5-year US limited warranty. Fully rebuildable.

Everything in One Box — The RCV3G25D-VR54-PKG Complete Package Contents

RC Series Axial Pump. VR54-200 T-Body Unloader. External Bypass Cooling. Factory-Assembled.

• RC Series triplex plunger pump with forged brass manifold — factory-assembled and ready to mount. Forged Brass Manifold for 2,500 PSI performance, ceramic pistons. 3/4″ hollow F7 shaft for direct 5–7 HP gasoline engine coupling at 3,400 RPM.
• VR54-200 T-body direct-mount unloader with red adjustment cap and locking collar — threads directly onto the pump head manifold for clean, compact integration without remote-mount plumbing runs. Turn the red cap clockwise to increase set pressure, counter-clockwise to decrease. The locking collar under the red cap holds the set pressure tamper-proof — critical for rental fleets and fleet wash programs where accidental pressure adjustment between cycles is an operational concern. Rated 2,900 PSI continuous / approved to 3,200 PSI intermittent.
• External bypass cooling during recirculation — when the trigger shut-off, the VR54 routes bypass water externally rather than recirculating at the pump head. External bypass allows bypass water to cool during recirculation intervals — significantly reducing thermal load on pump packings and valve seats during high-idle and frequent trigger-cycling programs. The thermal management advantage that makes the VR54 the rental store and fleet crew standard.
• Spacing bushing — included for pump-head fitment compatibility. Install only when required for your specific pump configuration.
• Bypass hose with two stainless steel worm-gear barb clamps — correctly sized for the VR54-200’s bypass flow rate at rated pressure. Stainless clamps for corrosion resistance in outdoor and wash bay environments.
• Gauge-ready opposing top port — accepts an optional pressure gauge (sold separately) for operators who want live system pressure monitoring at the pump head without an additional tee fitting in the plumbing run.
• Easy-grip swivel type garden hose adapter — swivel design for tool-free hookup to standard garden hose supply lines without twisting the inlet connection.
• Stainless steel filter screen — protects the pump head, ceramic pistons, and integrated injector from supply water sediment and particulate.
• Chemical injector and suction hose — not included — the RCV3G25D-VR54-PKG delivers straight high-pressure water output. When detergent capability is required, a downstream chemical injector and suction assembly are sourced separately.
• Hex Allen style low-profile fasteners with locking washers — vibration-resistant engine-to-pump mounting hardware.
• Operations manual with parts schematic — complete installation, operating, maintenance, and rebuild procedures. Every AR North America part number for every serviceable component in the RCV3G25D-VR54-PKG.

Decoding the RCV3G25D-VR54-PKG

What This Annovi Reverberi Designation Tells You

• RCV — Pump series: RC Series triplex plunger pump — Annovi Reverberi’s compact triplex plunger platform for residential and light contractor gas engine applications
• 3G (or 25G) — 3.0 GPM flow rate identifier
• 25 — Maximum pressure: 2,500 PSI — 3.0 × 2,500 = 7,500 cleaning units
• D — Shaft version: Direct drive — 3/4″ hollow keyway F7 shaft for 5–7 HP gas engine coupling
• VR54 — Unloader: VR54-200 T-body direct-mount unloader — 2,900 PSI continuous / 3,200 PSI intermittent approved / external bypass cooling / red adjustment cap with locking collar / gauge-ready top port
• PKG — Complete package: pump, VR54-200 unloader, bypass hose, stainless clamps, spacing bushing, 12% injector, chemical tube and filter, swivel GHA, stainless filter screen, hex Allen locking fasteners, and operations manual with parts schematic

Key Specifications

RCV3G25D-VR54-PKG Technical Details at a Glance

• Flow Rate: 3.0 GPM
• Maximum Pressure: 2,500 PSI (172 bar)
• Cleaning Units: 7,500 (GPM × PSI)
• Operating Speed: 3,400 RPM — direct drive gas engine
• Power Required: 4.5 EBHP minimum
• Pump Type: RC Series triplex plunger — compact triplex plunger platform, fully rebuildable
• Head Material: Forged Brass Manifold
• Pistons: Ceramic
• Shaft: D — 3/4″ hollow keyway, F7 SAE J609a flange, direct drive 5–7 HP gas engine
• Unloader: VR54-200 T-body — 2,900 PSI continuous / 3,200 PSI intermittent approved / direct pump-head mount / external bypass cooling
• Unloader Adjustment: Red external cap — clockwise for more pressure, counter-clockwise for less; locking collar for tamper-proof set-point retention
• Bypass Type: External — bypass water routed externally for cooling during recirculation mode
• Gauge Port: Opposing top port — accepts optional pressure gauge (sold separately)
• Inlet Adapter: Easy-grip swivel type garden hose adapter
• Filtration: Stainless steel filter screen
• Bypass Hardware: Bypass hose with two stainless steel worm-gear barb clamps
• Fasteners: Hex Allen low-profile with locking washers
• Serviceability: Fully rebuildable — all components nationally available through AR North America
• Warranty: 5-year limited warranty — US-based coverage through Annovi Reverberi North America

Engine Compatibility — What Drives the RCV3G25D-VR54-PKG

F7 SAE J609a. 3/4″ Hollow Shaft. 4.5 EBHP Minimum. Direct Bolt-On to Common Small-Frame Gas Engines.

• Harbor Freight Predator 224cc / 6.6 HP Max Performance — the preferred Predator pairing for the RCV3G25D-VR54-PKG. Up to 10% more torque than the standard 212cc. 3/4″ keyway shaft. Direct replacement for Honda GX200 and Briggs & Stratton XR950.
• Harbor Freight Predator 212cc / 6.5 HP — 3/4″ keyway shaft. Compatible for residential and contractor builds.
• Honda GX200 / 5.5 HP — 196cc, 3/4″ keyway shaft. The benchmark small-frame commercial engine. Direct-mount compatible with the RCV3G25D-VR54-PKG F7 flange.
• Briggs & Stratton XR950 — 3/4″ keyway shaft. Compatible for residential builds.
• Kohler CH270 / Command series — 3/4″ keyway shaft. Compatible for applicable small-frame configurations.

Why the RCV3G25D-VR54-PKG VR54-200 Unloader Elevates This Package

External Bypass Cooling. Tamper-Proof Locking Collar. Gauge-Ready. The Rental and Fleet Standard.

• External bypass cooling — the thermal management advantage — standard internal bypass unloaders recirculate bypass water within the pump head during trigger-off periods, accumulating heat that stresses pump packings and valve seats across high-cycle programs. The VR54-200’s external bypass routes bypass water away from the pump head, allowing it to cool during recirculation. For rental fleet machines and fleet wash operations cycling the trigger hundreds of times per shift, this thermal management difference directly extends pump packing service life.
• Locking collar — tamper-proof for rental and fleet use — the locking collar under the red adjustment cap holds the factory-set or operator-set pressure tamper-proof between use cycles. On rental equipment, accidental or intentional pressure over-adjustment is a primary cause of premature pump wear. The VR54’s locking collar eliminates that variable.
• Gauge-ready design at no additional cost — the opposing top port accepts a standard pressure gauge without additional fittings. Operators who want live pressure monitoring at the pump head can add it at any time.
• 2,900 PSI continuous / 3,200 PSI intermittent — the VR54-200’s pressure rating exceeds the 2,500 PSI pump output — providing bypass regulation headroom above rated pump output and approved ceiling for systems with brief exceedance cycles.
• Match the nozzle to the job — at 2,500 PSI and 3.0 GPM, nozzle selection drives cleaning effectiveness on every surface. Explore WSHPWR’s complete selection of spray nozzles and rotating heads to get the full performance from the RCV3G25D-VR54-PKG on every application.

RCV3G25D-VR54-PKG Typical Applications

• Rental store pressure washer fleets — the VR54-200’s locking collar, external bypass cooling, and simple design make the RCV3G25D-VR54-PKG the correct specification for rental store operators standardizing 2,500 PSI inventory with a tamper-resistant, long-life unloader system
• Fleet wash operations — vehicles, equipment, and service fleets — high-cycle trigger programs where external bypass cooling extends pump packing life and the locking collar prevents accidental pressure adjustment between wash cycles
• Contractor mobile wash rigs and property maintenance — compact triplex 5–7 HP gas platform with VR54 direct-mount unloader providing professional bypass protection and pressure regulation without remote-mount plumbing complexity
• Agricultural equipment rinse-down and barn cleanup — stainless hardware, external bypass cooling, and forged brass manifold durability for demanding agricultural operating conditions
• OEM equipment builds requiring VR54 unloader specification — the RCV3G25D-VR54-PKG’s matched pump-and-unloader package format standardizes builds for OEM builders and service companies with compatible pump-head thread configuration

RCV3G25D-VR54-PKG — 5-Year US Warranty, Nationwide Service Centers, and Wholesale Pricing

The RCV3G25D-VR54-PKG is protected by Annovi Reverberi’s 5-year limited warranty through the US-based warranty and service network administered by AR North America. Every wear component — pump head seals, ceramic pistons, VR54-200 unloader service parts, bypass hose, clamps, chemical injector, and filter screen — is stocked nationally through authorized AR North America service centers. Contractors, residential users, agricultural operations, OEM builders, resellers, and volume buyers are invited to contact the WSHPWR wholesale team for pricing on the RCV3G25D-VR54-PKG and the complete WSHPWR pump package lineup.

7,500 Cleaning Units. 2,500 PSI. 3.0 GPM. Forged Brass Manifold. VR54-200 Direct-Mount Unloader. External Bypass Cooling. Locking Collar. F7 3/4″ Shaft. Fixed 12% Injector. Everything in One Box.

Annovi Reverberi RC Series + VR54-200. External Bypass Cooling. Tamper-Proof. Fully Rebuildable. 5-Year US Warranty.

The RCV3G25D-VR54-PKG is the complete RC Series triplex plunger pump and VR54-200 direct-mount unloader package for rental store operators, fleet cleaning crews, contractors, and agricultural operators who need 2,500 PSI with professional bypass protection, external bypass cooling, and a tamper-proof locking collar on every unit. Forged Brass Manifold. Ceramic pistons. VR54-200 T-body direct-mount unloader. External bypass cooling. Red adjustment cap with locking collar. Bypass hose and stainless clamps. Spacing bushing. Fixed 12% injector. Swivel GHA. Stainless filter screen. Hex Allen locking fasteners. Operations manual with parts schematic. Five-year US warranty. Nationwide service centers. Fully rebuildable.
