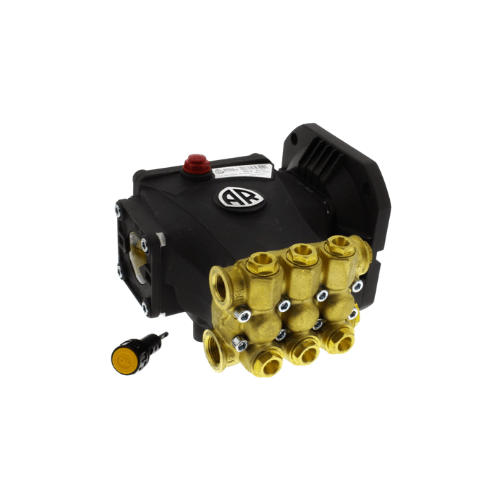

RCA3G25E-F8 | 3.0 GPM 2500 PSI Triplex Pump 1750 RPM F8 56C

RCA3G25E-F8 | 3.0 GPM 2500 PSI Triplex Pump 1750 RPM F8 56C

3.0 GPM, 2500 PSI commercial-grade triplex plunger pump

• The Annovi Reverberi RCA3G25E-F8 is a commercial-grade triplex plunger pump
  engineered for efficiency, durability, and versatility in pressure-washing applications.
• Delivers 3.0 GPM at 2500 PSI, making it an excellent fit for demanding residential
  cleaning and light commercial work.
• Ideal for cleaning vehicles, patios, driveways, outdoor equipment, storefronts, and light
  industrial surfaces with consistent, reliable performance.

Drive Configuration for RCA3G25E-F8

Low-RPM 1750 motor speed with 5/8″ F8 hollow shaft mount

• Optimized for 1750 RPM operation, reducing vibration, heat, and mechanical stress
  compared to high-RPM pump designs.

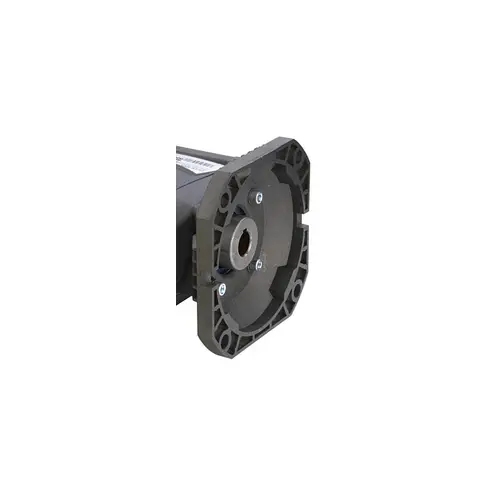

• Features a 5/8-inch hollow shaft with an F8 flange that mounts directly
  to a 56C-frame electric motor—no belt drive, extra pulleys, or custom brackets required.
• Direct coupling improves alignment, boosts power transfer efficiency, and simplifies installation
  on electric motor-driven pressure washer frames and skids.

Key Specifications

Duty point, speed, and pump architecture

• Flow Rate: 3.0 gallons per minute (GPM)
• Maximum Pressure: 2500 PSI
• Operating Speed: 1750 RPM
• Shaft: 5/8″ hollow shaft, direct-drive F8 motor flange
• Pump Type: Triplex ceramic plunger pump
• Warranty: 5-year limited warranty supported by a nationwide service network

Pump Construction of RCA3G25E-F8

Triplex design, premium materials, and service-friendly layout

• Triplex ceramic plunger design produces smooth water flow with reduced pulsation,
  improving cleaning consistency and protecting system components.
• Dual packing system minimizes leakage under pressure and extends seal life for
  long-term reliability.

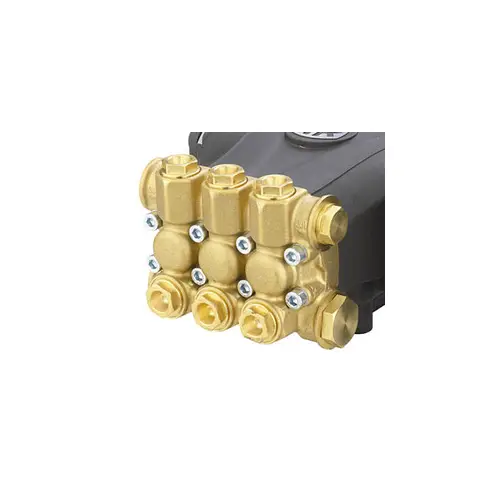

• Brass manifold resists corrosion and delivers dependable strength in demanding
  environments.
• Stainless-steel valves and high-grade seals withstand aggressive use,
  temperature swings, and chemical exposure within rated limits.
• Low-RPM operation cuts heat and vibration, further extending bearing, seal, and
  plunger life while keeping noise levels lower.
• Sight glass and vented dipstick make oil checks and changes fast and
  straightforward, supporting proper preventative maintenance.

Factory Setup & Included Components

Ready-to-install configuration out of the box

• Shipped pre-filled with break-in oil so initial startup is quick and hassle-free.
• Includes oil sight glass and vented dipstick to monitor fluid level and
  condition at a glance.
• Supplied with mounting bolts for straightforward attachment to compatible 56C
  electric motors and frames.
• Comes with a detailed operations manual and parts breakdown schematic to support
  installation, troubleshooting, and long-term service.
• Every unit is factory-tested under load to verify pressure, flow, and leak-free
  performance before shipment.

How It Works

Triplex plunger hydraulics for consistent 3.0 GPM at 2500 PSI

• Uses a three-plunger (triplex) crankshaft design to convert motor rotation into
  linear plunger motion, creating strong, consistent water flow.
• Ceramic plungers provide excellent wear resistance and temperature stability,
  protecting the pump from scoring and premature failure.
• Stainless-steel inlet and discharge valves manage water movement and pressure
  with precise timing, supporting tight sealing and long life.
• Low-speed 1750 RPM operation reduces internal stress and noise, making the pump
  well-suited for frequent or daily use in shop or facility environments.

Benefits of RCA3G25E-F8

Performance, durability, and ease of ownership

• Professional cleaning power with 3.0 GPM at 2500 PSI for tackling tough grime,
  mud, road film, and organic buildup.
• Versatile duty range covers residential, contractor, and light industrial jobs on a
  single platform.
• Durable materials and a low-RPM design work together to extend pump life and reduce
  long-term operating cost.
• Low-maintenance layout with pre-installed oil, sight glass, and vented dipstick
  keeps routine service quick and intuitive.
• Easy installation via F8 motor flange and 5/8″ hollow shaft direct mount—ideal for
  OEM builds, retrofits, and custom electric washer frames.
• Peace of mind backed by a 5-year warranty and nationwide service centers for support
  and parts availability.

Typical Applications

Residential, commercial, and light industrial cleaning

• Residential cleaning: driveways, decks, fences, patios, walkways, and outdoor
  furniture around the home.
• Vehicle washing: cars, trucks, RVs, boats, trailers, and farm equipment where
  consistent power and gentle flow balance are needed.
• Commercial sites: storefronts, sidewalks, loading zones, and outdoor seating areas
  that require regular washdown.
• Light industrial maintenance: shop floors, facility perimeters, equipment bays, and
  workshop cleanup.

RCA3G25E-F8 | Triplex Pump 1750 RPM F8 56C

Low-RPM F8-mount triplex pump for reliable 3.0 GPM @ 2500 PSI

• The RCA3G25E-F8 combines a 3.0 GPM duty point, 2500 PSI output, and low 1750 RPM
  drive speed to deliver professional-grade cleaning performance with long service life.
• With its 5/8″ hollow shaft F8 motor mount, ceramic plungers, brass manifold, and
  five-year warranty, it is a dependable choice for residential, contractor, and light industrial
  pressure washer systems.
