MVYF3/4 | 3/4 F x 3/4 F Brass Y-Filter, 45 Mesh 225 PSI

MVYF3/4 — 3/4 in Brass Y-Filter, 45-Mesh Screen

Product Overview

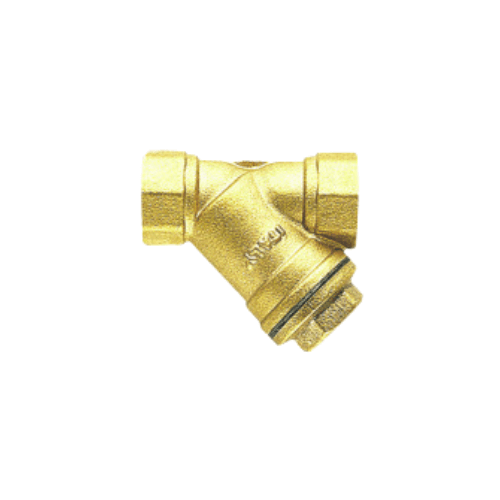

The AR MVYF3/4 is a heavy-duty brass Y-filter engineered to protect pumps, injectors, valves, and spray tips by removing debris from water lines. Its 3/4 in F x 3/4 in F NPT ports allow direct installation into standard plumbing systems, providing a secure, leak-resistant connection rated to 225 PSI.

Key Features

• 3/4 in female x 3/4 in female NPT threaded brass Y-filter
• 45-mesh stainless-steel internal screen
• Protects pumps, injectors, valves, and nozzles from sand, rust, and debris
• Low-restriction Y-body maintains smooth, stable flow
• Quick-access threaded cap for fast cleaning and maintenance
• Durable brass body resists corrosion, pitting, and thread damage
• Screen maintains shape and aperture accuracy for long-term reliability
• Can be installed horizontally or vertically for flexible plumbing layouts
• Compact footprint fits easily into tight plumbing runs
• Rated up to 225 PSI for hot- or cold-water pressure-washing systems

Performance Benefits

• Reduces wear on pump plungers, seals, regulators, and injectors
• Helps maintain consistent spray quality and injector draw
• Minimizes pressure loss thanks to efficient Y-configuration flow
• Supports adequate pump inlet pressure and reduces cavitation risk
• Improves uptime by preventing clogged tips and stuck check valves
• Ideal for well water, older plumbing systems, or debris-prone environments

Service & Maintenance

• Relieve line pressure before opening cap
• Unthread cap to access stainless-steel mesh screen
• Rinse screen to restore full flow
• Reinstall and tighten cap—no special tools required
• Recommended cleaning interval depends on water quality and run hours

Specifications

• Model: AR MVYF3/4
• Port Size: 3/4 in F x 3/4 in F NPT
• Body Material: Brass
• Screen Material: Stainless Steel
• Mesh Rating: 45-mesh
• Maximum Pressure: 225 PSI
• Style: Inline Y-filter

Applications

• Pressure washer inlet filtration
• Downstream injector protection
• Mobile wash rigs
• Commercial wash bays
• Booster-fed water lines
• Agricultural and industrial water supply circuits
