MVR40018 Adjustable Injector 1.8 mm | 4060 PSI MV Line

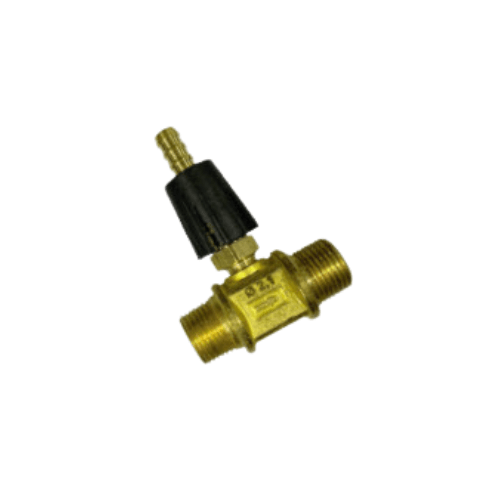

MVR40018 Adjustable Chemical Injector (1.8 mm, 4,060 PSI)

• Adjustable Venturi chemical injector engineered for controlled detergent draw and operator-managed dilution in professional pressure washing systems.
• Configured with a 1.8 mm orifice and rated to 4,060 PSI for commercial equipment where repeatable tuning, dependable suction, and backflow protection are required.
• Designed for approximately 2.5–5.5 GPM systems that need stable chemical pickup while allowing technicians to fine-tune concentration for changing surfaces and soil levels.
• Built for mobile wash rigs, skid systems, and fixed wash bays where compact installation and consistent performance are required across rotating crews.

Chemical Injection Method

MVR40018 Venturi-Based Draw with Adjustable Metering

• Uses a Venturi restriction to create a controlled low-pressure zone that draws detergent from a container into the water stream during low-pressure chemical mode.

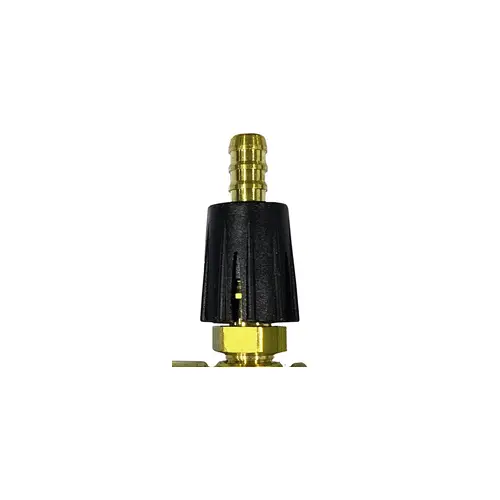

• Integrated metering control provides smooth, repeatable adjustment of chemical concentration to match the work—light washing, degreasing, or routine maintenance cleaning.
• 1.8 mm orifice sizing supports reliable draw on mid-range pro machines while limiting unnecessary restriction that can reduce rinse performance.
• Adjustment capability supports consistent results across soaps and compatible detergents that vary in viscosity, foaming behavior, and temperature response.

MVR40018 Process Control and Repeatability

• Adjustable design supports standardized wash procedures by allowing crews to dial in a preferred concentration range and repeat it across sites and operators.
• Improves consistency on mixed surfaces where overly strong chemical can damage coatings and overly weak chemical increases dwell time and rework.
• Supports predictable wetting and dwell by enabling operators to tune concentration for ambient temperature, surface porosity, and contamination type.
• Reduces chemical waste by enabling immediate correction if foam is too light, draw is too aggressive, or the application requires lighter dilution.

System Integration and Performance

MVR40018 Flow Range Compatibility and Pressure Management

• Optimized for roughly 2.5–5.5 GPM systems where injector sizing influences suction strength, mixing stability, and downstream pressure behavior.
• Designed to minimize unnecessary restriction so the system maintains usable performance during rinse cycles and transitions cleanly between soap and high-pressure operation.
• Best performance is achieved when installed in the correct location in the discharge circuit and paired with low-pressure soap tips that enable stable Venturi suction.
• Stable draw characteristics support consistent chemical pickup across typical configurations, including hose reels, longer hose lengths, and frequent trigger cycling.

MVR40018 Adjustable Injector 1.8 mm | 4060 PSI MV Line

Backflow Protection and Chemical Line Control

• Integrated check valve prevents reverse flow into the chemical line, protecting detergent containers from contamination and unintended dilution.
• Helps keep suction lines from flooding during shutdown, improving responsiveness when returning to chemical mode.
• Reduces the risk of chemical container pressurization during pressure spikes, thermal expansion, or rapid on/off cycling.
• Supports cleaner operation by limiting migration of water into the suction hose when the injector is not actively drawing.

Construction and Durability

MVR40018 Materials Selected for Chemical Exposure

• Corrosion-resistant brass body provides strength and durability for daily handling, vibration, and continuous-duty service in mobile and stationary systems.
• Stainless-steel internal components resist wear and corrosion in detergent and light-degreaser environments common to professional cleaning programs.
• Precision-machined internal passages reduce turbulence and support efficient hydraulic behavior, helping preserve pump efficiency and outlet pressure.
• Compact inline form factor integrates cleanly into skids and carts without forcing excessive hose bends or sacrificing service access.

Installation Details That Reduce Errors

• Inline body is intended to mount downstream of the pump/unloader where chemical injection is typically managed during low-pressure operation.
• Flow-direction marking supports correct orientation and reduces troubleshooting time associated with reversed installation.
• Standard threaded or quick-connect compatibility supports rapid replacement and consistent fleet builds.
• Service-friendly profile helps maintain access to the metering control even when installed near filters, gauges, unloaders, and manifold assemblies.

Operation and Maintenance

MVR40018 Operating Practices for Stable Draw

• Chemical draw is typically engaged using a low-pressure soap nozzle; switching to a high-pressure tip generally stops draw by increasing backpressure.
• Best results are achieved when the detergent container is vented, positioned close to the injector, and connected with properly sized, unrestricted suction hose.
• Stable draw depends on airtight suction connections, a clean intake screen, and eliminating kinks or restrictions that reduce suction flow.
• Metering adjustments should be made gradually to maintain consistent foam and predictable dwell, especially when changing detergent type, surface temperature, or application method.

Routine Maintenance Guidelines

• Flush clean water through the injector and suction line after detergent use to prevent residue buildup and check-valve sticking.
• Inspect the intake screen, suction tubing, and fittings routinely for debris, softening, or air leaks that can interrupt chemical draw.
• Replace hardened or aged suction hose proactively in high-use environments to maintain repeatable performance and reduce service calls.
• Keep chemical containers free of sediment to protect internal sealing surfaces and preserve consistent suction performance.

Technical Specifications

• Model: MVR40018
• Type: Adjustable Venturi chemical injector with metering control
• Orifice: 1.8 mm
• Maximum Pressure: 4,060 PSI
• Recommended System Range: Approximately 2.5–5.5 GPM (application dependent)
• Body Material: Brass
• Internal Components: Stainless steel
• Protection: Integrated check valve for backflow prevention

MVR40018 Adjustable Injector 1.8 mm | 4060 PSI MV Line

Typical Industrial and Commercial Applications

• Fleet washing and equipment maintenance bays where adjustable concentration improves performance on varying road film, oils, and soils.
• Agricultural sanitation and washdown programs using 2.5–5.5 GPM systems that require repeatable chemical delivery across rotating crews.
• Light industrial cleaning where chemical strength must be tuned for concrete, shop areas, machinery exteriors, and general facility maintenance.
• Mobile wash trailers and contractor fleets that benefit from one injector adaptable to multiple detergents and changing job conditions.
• Any professional rig needing adjustable downstream injection with reliable draw through long hose runs, elevated reels, and frequent trigger cycling.
