MV42018 Chemical Injector 1.8 mm | 4060 PSI MV Line Chem

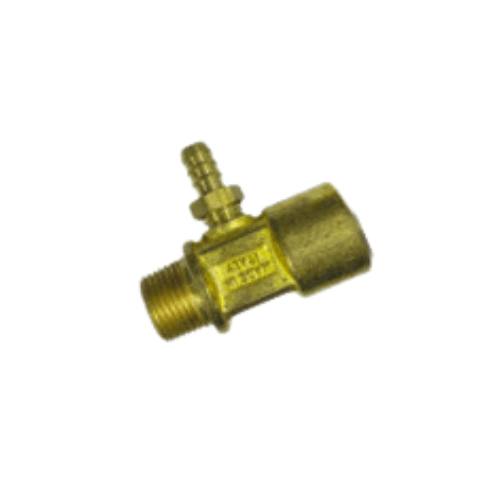

MV42018 Fixed Chemical Injector (1.8 mm, 4,060 PSI)

• Fixed-ratio Venturi chemical injector engineered for consistent detergent draw and repeatable dilution in commercial and industrial pressure washing systems.
• Configured with a 1.8 mm orifice to support stable suction performance in approximately 2.5–5.5 GPM operating ranges where uniform chemical delivery is required.
• Rated to 4,060 PSI for professional-grade equipment operating under continuous-duty conditions.
• Designed for standardized builds, mobile wash rigs, skid systems, and wall-mounted manifolds where adjustment-free chemical injection improves reliability and process control.

MV42018 Chemical Injection Method

Venturi-Based Draw for Uniform Mixing

• Uses a Venturi restriction to create a controlled low-pressure zone that draws detergent from a container into the water stream during chemical application.
• Fixed-orifice geometry establishes consistent draw behavior, ensuring uniform detergent concentration across multiple operators and repeated cleaning cycles.
• Balanced suction strength supports longer hose runs and moderate lift heights without unstable draw or air ingestion.
• Predictable Venturi performance standardizes results across fleets, facilities, and rotating crews where repeatability matters more than adjustability.

MV42018 Fixed-Ratio Operation for Process Consistency

• Fixed-ratio design eliminates calibration knobs and field adjustments, reducing failure points and preventing accidental setting changes.
• Supports consistent dilution when paired with properly sized low-pressure soap tips and sealed suction assemblies.
• Reduces operator variability at the gun, allowing crews to focus on coverage, dwell time, and rinse quality instead of chemical tuning.
• Helps control chemical consumption by maintaining stable ratios in high-frequency wash programs and scheduled sanitation routines.

System Integration and Performance

Flow Range Compatibility and Pressure Management

• Optimized for roughly 2.5–5.5 GPM systems where correct injector sizing is critical to maintain reliable chemical draw without excessive pressure loss.
• Designed to minimize pressure drop so pumps maintain usable working pressure during rinse cycles and transition smoothly between modes.
• Best performance is achieved when matched to actual pump output, hose length, nozzle size, and the intended chemical application method.
• Stable mode transitions reduce inconsistent draw behavior and improve operator efficiency during repetitive wash tasks.

Check Valve Protection and Backflow Control

• Integrated check valve prevents reverse flow into the chemical line, protecting detergent containers and suction circuits from contamination.
• Reduces the risk of chemical container pressurization during shutdown or rapid pressure changes.
• Maintains responsiveness when switching back into chemical mode after rinsing.
• Improves reliability in manifolded wash bays and multi-operator systems where pressure fluctuations are common.

MV42018 Construction and Durability

Materials Selected for Chemical Exposure

• Corrosion-resistant brass body provides durability for daily handling, vibration, and continuous-duty use.
• Stainless-steel internal components resist degradation from soaps, detergents, and degreasers.
• Precision-machined internal passages reduce turbulence and support efficient hydraulic behavior.
• Compact form factor allows installation on crowded skids, wall-mounted manifolds, and mobile carts without compromising service access.

Design Features Supporting Long Service Life

• Fixed geometry minimizes moving parts and sensitivity to vibration in trailer-mounted and mobile systems.
• Robust construction supports thermal and pressure cycling typical of commercial and industrial wash routines.
• Service-friendly design allows quick field replacement when operating in harsh environments or with aggressive chemical programs.
• Ideal for standardized equipment builds where consistent component specification simplifies maintenance and inventory.

MV42018 Operation and Maintenance

Best Practices for Reliable Chemical Draw

• Chemical draw is typically activated using a low-pressure soap nozzle or downstream chemical mode that enables Venturi suction.
• High-pressure rinse tips stop chemical draw by increasing backpressure, returning the system to rinse-only operation.
• Reliable performance depends on correct installation orientation, airtight suction lines, and clean strainers.
• Consistent results require matching injector size to pump output and selecting soap tips that create adequate low-pressure conditions.

Routine Maintenance Guidelines

• Flush clean water through the injector and suction line after detergent use to prevent residue buildup and check-valve sticking.
• Inspect suction hoses, strainers, and fittings regularly for leaks that can interrupt chemical draw.
• Keep chemical containers free of sediment to protect internal sealing surfaces.
• Replace worn suction components proactively in high-use environments to maintain repeatable performance.

MV42018 Technical Specifications

• Model: MV42018
• Type: Fixed-ratio Venturi chemical injector
• Orifice: 1.8 mm
• Maximum Pressure: 4,060 PSI
• Recommended System Range: Approximately 2.5–5.5 GPM (application dependent)
• Body Material: Brass
• Internal Components: Stainless steel
• Protection: Integrated check valve for backflow prevention

MV42018 Typical Industrial and Commercial Applications

• Fleet washing and transit depots where consistent chemical delivery supports standardized cleaning protocols.
• Agricultural sanitation and equipment degreasing requiring predictable detergent strength.
• Commercial and industrial facilities with recurring wash schedules and multiple operators.
• Mobile wash rigs and service fleets needing stable injection across different job sites.
• Wash bays and skid systems where repeatable dosing improves throughput and reduces chemical waste.
