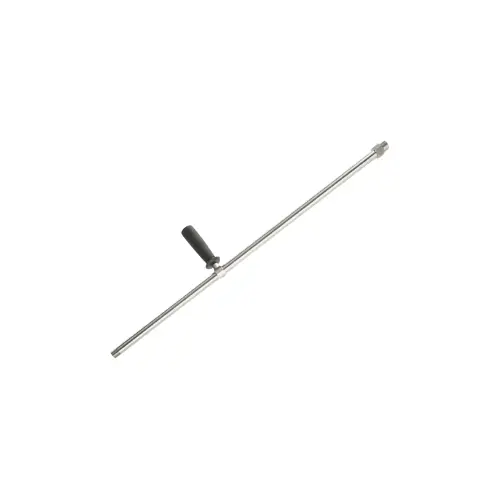

L200-HE-60 | Stainless Lance 59 in, 8100 PSI

L200-HE-60 Stainless Lance 59 in, 8100 PSI

The Annovi Reverberi L200-HE-60 is a heavy-duty, high-pressure stainless steel lance
engineered for demanding industrial and commercial cleaning applications. Measuring
59 inches in length, this bare lance is built for systems that require both
high pressure and high flow, with a maximum rating of 8,100 PSI and up to
53 GPM. Its robust construction and full-size bore make it ideal for use with
large triplex pumps, multi-gun manifolds, and specialty wash systems where standard lances become
a restriction. :contentReference[oaicite:0]{index=0}

Made from premium stainless steel, the L200-HE-60 offers excellent corrosion
resistance and structural rigidity. With a 1/2″ M inlet and
1/2″ NPT M outlet, it integrates cleanly into high-flow plumbing, helping
maintain pressure and throughput all the way to the nozzle. Rated for fluid temperatures up to
104°F, this lance is optimized for cold-water and mildly warm-water systems where
pressure and flow are the primary cleaning tools. :contentReference[oaicite:1]{index=1}

Key Features & Design

High-Pressure, High-Flow Capability

• Max pressure: 8,100 PSI – built to handle ultra-high-pressure cleaning tasks that
  exceed the limits of standard 4,000–5,000 PSI lances. :contentReference[oaicite:2]{index=2}
• Max flow: 53 GPM – full-bore internal passage minimizes restriction, making it
  suitable for large pumps, multi-gun manifolds, and high-volume rinse systems. :contentReference[oaicite:3]{index=3}
• Designed to maintain strong jet energy at the nozzle, even with long hose runs or multi-outlet
  plumbing, helping you get the most out of your pump’s output.

Stainless Steel Construction

• Manufactured from stainless steel for outstanding resistance to corrosion, chemical
  exposure, and mechanical wear in harsh industrial environments. :contentReference[oaicite:4]{index=4}
• Heavy-wall tube design provides rigidity and strength, helping the lance stay straight and stable
  under high reaction forces at elevated pressures.
• Smooth exterior is easy to wipe down and keep clean, maintaining a professional appearance on
  truck- and trailer-mounted rigs or in fixed wash bays.

Connections & Dimensions L200-HE-60

Stainless Lance 59 in, 8100 PSI 1/2″ M Inlet & 1/2″ NPT M Outlet

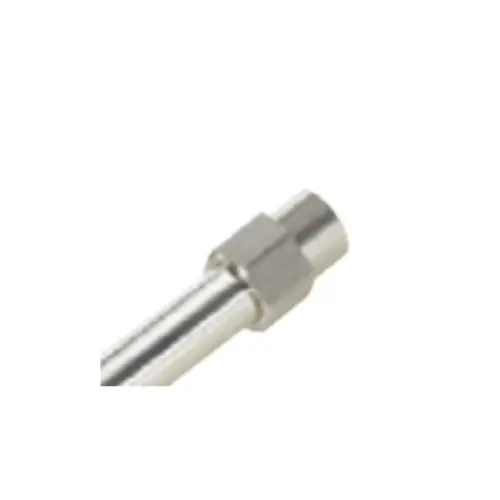

• Inlet: 1/2″ M (male) connection, sized to tie directly into heavy-duty spray
  guns, high-pressure valves, or manifolds designed for high flow. :contentReference[oaicite:5]{index=5}

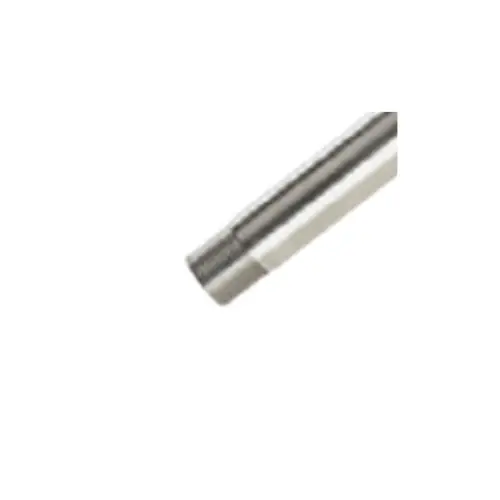

• Outlet: 1/2″ NPT M thread provides a robust, full-bore outlet for high-flow
  nozzles, adapters, or custom nozzle bars where 1/2″ NPT is standard. :contentReference[oaicite:6]{index=6}
• Both ends use metal threaded interfaces, allowing secure assembly with high-pressure rated
  fittings and minimizing weak points in the system.

Length & Temperature Rating

• Length: 59″ overall – offers substantial reach for tall equipment, large
  vehicles, and wide work areas while remaining manageable for professional operators. :contentReference[oaicite:7]{index=7}
• Max temperature: 104°F – optimized for cold- or mildly warm-water wash systems
  where flow and pressure do most of the cleaning work. :contentReference[oaicite:8]{index=8}
• Part of AR’s L200-HE high-energy lance family (including L200-HE-48 and
  L200-HE-72), making it easy to standardize across different lengths with the same pressure
  and temperature ratings. :contentReference[oaicite:9]{index=9}

Performance Specifications

Technical Data

• Model: L200-HE-60 stainless steel lance
• Length: 59″
• Maximum Pressure: 8,100 PSI
• Maximum Flow: 53 GPM
• Maximum Temperature: 104°F
• Material: Stainless steel
• Inlet Connection: 1/2″ M
• Outlet Connection: 1/2″ NPT M

Recommended Applications

Heavy-Duty Commercial & Industrial Cleaning

• Fleet & transportation: Ideal for large trucks, trailers, buses, and off-road
  equipment driven by high-pressure, high-flow pump packages.
• Industrial facilities: Suited to wash bays, tank farms, and plant cleanup where
  large flows are needed to move debris, slurry, or contaminants quickly.
• Construction & mining: Perfect for cleaning loaders, dozers, haul trucks, and
  aggregates equipment that require aggressive jet energy and substantial water volume.

Specialty & High-Volume Systems

• Multi-gun manifolds: Works well in systems where several guns share a common
  high-flow pump and plumbing network.
• Custom nozzle bars & tooling: The 1/2″ NPT M outlet can be integrated into
  custom spray bars, rotating tools, or fixed spray arrays where maximum throughput is critical.
• Rental & contractor rigs: Sturdy stainless build and high ratings make it a good
  choice for rental fleets and contractors who operate in harsh, high-duty environments.

Installation & Best Practices

Setup & Safety

• Verify that pump, unloader, hose, gun, and fittings are all rated to at least
  8,100 PSI and 53 GPM before integrating L200-HE-60 into your system.
• Use high-pressure-rated thread sealant or PTFE tape on both inlet and outlet threads, taking care
  not to over-apply in a way that could introduce debris into the flow path.
• Match nozzle sizing to your pump’s duty point and the lance’s flow capability to avoid
  overloading the pump or causing unstable pressure.
• Train operators on safe handling of ultra-high-pressure equipment, including stable stance,
  controlled reaction force, and strict observance of safety distances from people and sensitive
  surfaces.

L200-HE-60 Stainless Lance 59 in, 8100 PSI

The Annovi Reverberi L200-HE-60 bare lance is a purpose-built, stainless steel
solution for extreme-duty cold-water wash systems. With its 8,100 PSI pressure
rating, 53 GPM flow capacity, 59″ length, and 1/2″ M x 1/2″ NPT M
full-bore connections, it delivers the durability, throughput, and reliability needed for serious
industrial cleaning. For OEM builders, contractors, and plant maintenance teams that demand
maximum performance from their high-pressure rigs, L200-HE-60 is a strong, OEM-grade choice.
