L200-HE-48 | Stainless Lance 47 in, 8100 PSI

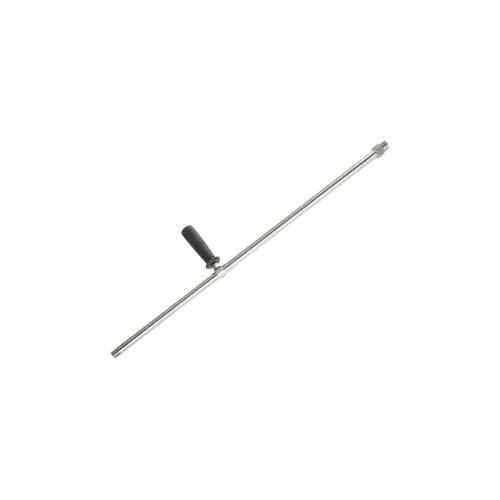

L200-HE-48 Stainless Lance – 47 in, 8,100 PSI

The Annovi Reverberi L200-HE-48 is a heavy-duty stainless steel pressure washer lance
engineered for extreme-duty cleaning systems where high pressure, high flow, and long-term durability
are critical. With a working length of 47 inches, this lance provides extended reach
and improved operator control when cleaning large equipment, vehicles, structures, or industrial work
areas. Rated for an impressive 8,100 PSI and up to 53 GPM, the
L200-HE-48 is designed to perform in environments that exceed the limits of standard commercial lances.

This model is part of Annovi Reverberi’s L200-HE high-energy lance series, built
specifically for high-output pump systems, multi-gun manifolds, and specialty wash installations where
maintaining full flow and minimizing pressure loss are essential. Its robust stainless steel
construction and full-bore internal design ensure reliable performance under continuous and demanding
operating conditions.

Key Features & Design

High-Pressure, High-Flow Capability

• Rated for up to 8,100 PSI, providing substantial safety margin and compatibility
  with industrial-grade pressure washer pumps and ultra-high-pressure systems.
• Supports flows up to 53 GPM, making it ideal for high-volume wash systems where
  flow restriction can negatively impact cleaning efficiency and pump performance.
• Full-bore internal passage helps preserve pump output, allowing maximum energy to reach the nozzle
  and improving real-world cleaning results.

Heavy-Wall Stainless Steel Construction

• Manufactured from high-quality stainless steel for excellent resistance to
  corrosion, abrasion, and chemical exposure in harsh wash environments.
• Heavy-wall tube construction adds rigidity and strength, helping the lance remain straight and
  stable even under high reaction forces.
• Smooth stainless exterior is easy to clean and maintain, preserving a professional appearance on
  truck-mounted rigs, trailers, and fixed wash bays.

Connections & Dimensions

Threaded Ends for Full-Flow Systems

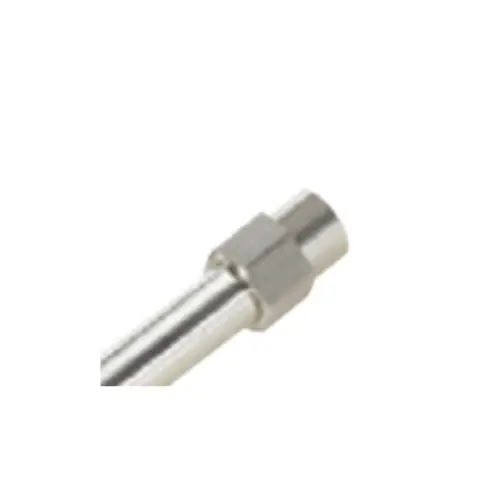

• Inlet: 1/2″ male connection, sized to pair with heavy-duty spray guns, shutoff
  valves, and manifolds designed for high flow and ultra-high pressure.

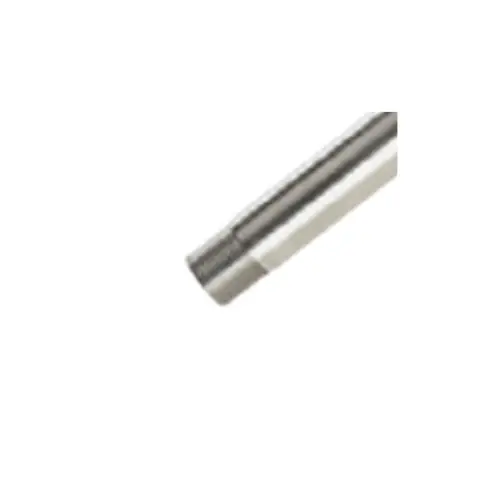

• Outlet: 1/2″ NPT male connection, providing a strong and secure interface for
  high-flow nozzles, adapters, or custom spray assemblies.
• Metal-to-metal threaded connections allow proper sealing with high-pressure-rated fittings while
  minimizing potential leak points.

Length & Temperature Rating

• Overall Length: 47 inches, offering excellent reach for cleaning large surfaces,
  vehicles, and equipment while remaining manageable for experienced operators.
• Maximum Fluid Temperature: 104°F, optimized for cold-water and mildly warm-water
  applications where pressure and flow are the primary cleaning mechanisms.
• Compatible with other lengths in the L200-HE series, allowing users to
  standardize fittings and performance across multiple lance sizes.

Performance Specifications

Technical Data

• Model: L200-HE-48
• Material: Stainless steel
• Length: 47 inches
• Maximum Pressure: 8,100 PSI
• Maximum Flow: 53 GPM
• Maximum Temperature: 104°F
• Inlet Connection: 1/2″ male
• Outlet Connection: 1/2″ NPT male

Recommended Applications

Heavy-Duty Commercial & Industrial Cleaning

• Fleet and transportation washing: Ideal for large trucks, buses, trailers, heavy
  equipment, and off-road machinery powered by high-pressure, high-flow pump packages.
• Industrial facilities and yards: Well suited for wash bays and fixed systems used
  to clean steel structures, conveyors, material-handling equipment, and industrial machinery.
• Contractor and rental fleets: A dependable choice for professional users running
  high-output systems that require components capable of withstanding constant use.

Specialty & High-Volume Systems

• Multi-gun manifolds: Supports systems where multiple spray guns or lances operate
  from a shared high-flow manifold without excessive pressure drop.
• Custom nozzle bars and tooling: The 1/2″ NPT male outlet allows easy integration
  into rotating arms, rinse bars, and custom spray assemblies.
• Process and plant cleanup: Effective for flushing floors, pits, containment areas,
  and processing zones where moving debris and slurry requires high flow volume.

Installation & Best Practices

System Compatibility & Safety

• Verify that all system components—including pump, hose, gun, unloader, and fittings—are rated for
  at least 8,100 PSI and 53 GPM before installing the L200-HE-48.
• Use high-pressure-rated thread sealant or PTFE tape on threaded connections, taking care to avoid
  excess material that could enter the flow path.
• Properly size nozzles to match the pump’s operating point, ensuring stable pressure regulation and
  preventing unnecessary strain on the pump or unloader.
• Train operators in safe handling of ultra-high-pressure equipment, including managing reaction
  forces and maintaining controlled operating positions.

L200-HE-48 | Stainless Lance 47 in, 8,100 PSI

The Annovi Reverberi L200-HE-48 is a purpose-built stainless steel lance for extreme-duty
cold-water cleaning systems. With its 8,100 PSI pressure rating, 53 GPM
flow capacity, 47-inch length, and full-bore 1/2″ threaded connections, it delivers the strength,
throughput, and reliability required by industrial users, OEM builders, and professional contractors.
For applications where standard lances become a limiting factor, the L200-HE-48 provides uncompromising
performance and long-term durability.
