HYDM650339/R Marzocchi Motor Repair Kit | 2.01 cid

HYDM650339/R Marzocchi Motor Repair Kit | 2.01 cid | The Rebuild Path

HYDM650339/R is the answer to the moment every gear motor eventually reaches: the factory repair kit for the 2.01 cid (32.9cc) Marzocchi hydraulic motor — the HYDM329M-class unit driving heavy-frame pump systems across the fielded fleet. Gear motors fail politely and predictably: the gears and housing that do the work outlast almost everything, while the shaft seal and sealing elements that keep the oil where it belongs are the designed consumables. When the weep at the shaft becomes a drip, or efficiency sags as sealing surfaces age, the choice is a whole new motor or this kit — and on a Marzocchi whose rotating group is still sound, the kit wins the economics by a wide margin.

That is the quiet logic of stocking a repair kit at all: the motor was the investment; the seals are maintenance. A rebuild returns a known, proven unit to service with its bearings run-in and its history documented, keeps the fleet’s standardized part in place rather than introducing a variable, and turns what would be a motor-sourcing lead time into a bench afternoon.

HYDM650339/R Specifications

• SKU: HYDM650339/R

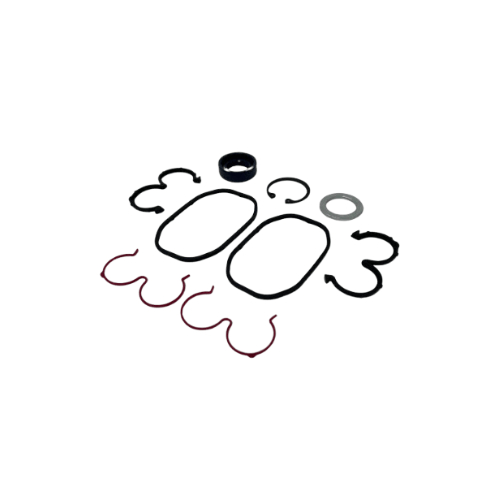

• Type: Factory motor repair kit — sealing and service components
• Serves: Marzocchi 2.01 cid (32.9cc) hydraulic gear motors — the HYDM329M class
• Contents: Factory sealing element set for the 2.01 cid frame — confirm the packing list with WSHPWR against your motor’s serial before ordering
• Application Class: Heavy-frame pump drive systems — HYDBK4-class builds, XW/SXW platforms, and fielded 329M-motored assemblies

When to Rebuild HYDM650339/R

Three signals put this kit on the bench. External leakage — a shaft-seal weep graduating to a drip, or seepage at the housing joints — is the classic; the oil loss is minor but the contamination path it opens is not. Efficiency drift — the pump turning measurably under speed on the same circuit flow — signals internal sealing surfaces aging, letting oil slip past instead of doing work; catch it with the flow-÷-displacement check at routine service, since a pump at 1,350 RPM instead of 1,450 costs output every hour it runs. Scheduled hours — fleets that rebuild on a preventive calendar rather than waiting for symptoms keep their heavy systems out of the failure lottery entirely, and this kit is how the calendar gets kept.

Rebuild vs. Replace, Honestly

The kit is the right call when the rotating group is sound: gears without scoring or chipped teeth, shaft journal unscarred, housing bores unwallowed. It is the wrong call after a contamination event that scored the gear faces, a backward start that loaded everything wrong, or cavitation that pitted the internals — there, the kit seals a compromised core, and a replacement HYDM329M is the honest answer. The ten-minute teardown inspection decides: if the gears shine and the bores measure true, rebuild; if not, WSHPWR stocks the whole motor. Either way the system’s architecture, mounting, and coupling stay exactly as built.

Rebuild Notes

Gear motor rebuilds reward cleanliness above all else — the kit’s seals will do their job for years only if no grit rides in on installation. Work on a clean bench, flush and inspect every component, and lay parts out in disassembly order; gear sets and housing plates in these motors are often position- and orientation-matched, so mark relationships before separation. Seat the shaft seal square with the correct driver (never a punch), lubricate seals with clean system oil at assembly, torque housing fasteners evenly in sequence to specification, and turn the shaft by hand before the motor sees oil — smooth rotation without binding is the pass gate. At recommissioning, verify rotation direction, confirm the relief setting, and run the pump-speed check to document the rebuild restored full delivery.

The Fleet Logic

Operations running multiple HYDM329M-class drives keep this kit on the shelf beside the spare motor, because the two answer different clocks: the kit turns a scheduled Saturday into preventive maintenance, while the spare motor answers the unscheduled Tuesday. Together they close the loop the heavy build was designed around — standardized components, documented service, and downtime measured in hours instead of lead times. Pair kit purchases with fresh system oil and a return-filter element; a rebuild sealed into dirty oil is a rebuild spent.

Quality Assurance

Every HYDM650339/R carries Marzocchi’s factory components — the same sealing elements the motor was built with, not aftermarket approximations whose materials and tolerances are guesses. WSHPWR confirms kit-to-motor fitment against your unit’s markings before shipment; on a rebuild, the correct kit is the entire job.

HYDM650339/R Key Features & Applications

• Factory Marzocchi HYDM650339/R repair kit for the 2.01 cid / HYDM329M-class gear motor.
• The economics winner when the rotating group is sound — seals are maintenance, motors are investments.
• Answers all three rebuild triggers: shaft-seal leakage, efficiency drift, and preventive-calendar hours.
• Factory sealing elements, not aftermarket approximations; fitment confirmed against your motor before shipment.
• Turns motor-sourcing lead time into a clean-bench afternoon; the system’s architecture stays as built.
• Ideal for fleet preventive-maintenance programs, heavy-frame system rebuilds, HYDBK4-class builds in service, and shops keeping standardized drives standardized.
