HYDM1425M Hydraulic Motor | 8.7 cid Marzocchi

HYDM1425M Hydraulic Motor | 8.7 cid Marzocchi | Maximum-Displacement Gear Drive

HYDM1425M is the largest displacement in the gear motor line: an 8.7 in³ (142.5cc) Marzocchi unit that converts hydraulic flow into shaft torque at the highest ratio the line offers — T ≈ 8.7 × ΔPSI ÷ 6.283, the biggest multiplier on every PSI the circuit supplies. Against its 7.8 cid sibling, the extra displacement buys exactly one thing, and at the heavy end it is the thing that matters most: the same pump duty runs at lower oil pressure, or the same oil pressure turns a bigger pump. For circuits whose flow is generous but whose pressure ceiling is fixed by the machine — which describes a great many truck systems and industrial power units — the biggest gear wins the match by arithmetic before the catalog is even open.

At the 1000 RPM industrial pump speed the HYDM1425M draws roughly 38 GPM of oil, numbers that place it firmly in the engineered-system world: jetter and hydrovac power plants, industrial fixed installations, and the largest gear-driven pump platforms in the field. This is the motor specified when the pump is big, the oil is plentiful, and the design goal is a system that loafs at pressures far below its limits — because loafing is what hydraulic longevity looks like.

HYDM1425M Specifications

• SKU: HYDM1425M
• Manufacturer: Marzocchi (Bologna, Italy)
• Type: External gear hydraulic motor — maximum-displacement class
• Displacement: 8.7 in³ (142.5cc) per revolution
• Oil Flow for 1000 RPM Drive: Approximately 38 GPM
• Torque Character: T ≈ 8.7 × ΔPSI ÷ 6.283 — the highest torque-per-PSI in the gear line
• Design Consequence: Lowest oil working pressure for any given pump duty
• Pressure and Speed Ratings: Heavy gear class — confirm the Marzocchi build sheet with WSHPWR against your duty point before ordering
• Shaft and Ports: Heavy-frame class — confirmed at order against your pump interface

Sizing the HYDM1425M

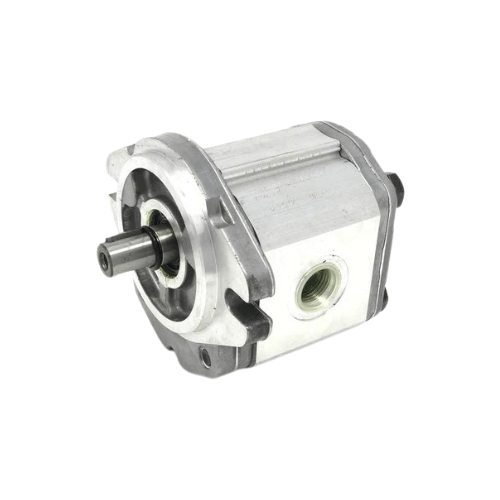

The one line — RPM ≈ 231 × hydraulic GPM ÷ 8.7 — holds a 1000 RPM industrial pump at rating on 38 GPM of oil. Work the torque side against the pump’s real demand: a 65-horsepower duty at 1000 RPM asks roughly 340 lb-ft, which this displacement produces at oil pressures gentler than anything else in the line can manage — quantify it for your circuit and the specification often writes itself. Choosing between this motor and the 7.8 cid HYDM1278M is a one-question fork: what does your circuit have more of? Spare flow says HYDM1425M and enjoy the lower working pressure; tighter flow with pressure headroom says the 1278M. Both live on engineered supply — reservoir volume at 2–3× total flow, 10–25 micron return filtration with honest beta ratings, cooling designed for equilibrium at continuous load. Send WSHPWR the circuit numbers and the target pump; pairing and build sheet get confirmed before shipment.

Why the Biggest Gear

Every PSI of working pressure a system doesn’t need is heat it doesn’t make, relief margin it doesn’t spend, and component stress it doesn’t accumulate — on the motor, the hoses, the fittings, and the power unit upstream of all of them. Maximum displacement is how a gear circuit purchases that relief wholesale: the HYDM1425M runs heavy pump duty at the gentlest oil pressures available, which cascades through the system as cooler oil, longer seal life, and reliefs that spend their careers untouched. It carries gear architecture’s operational virtues to maximum scale — two-line hookup, tolerance of start-stop trigger duty, no timing, no case-drain-dependent internals — and Marzocchi’s heavy-frame execution holds volumetric efficiency at torques that would walk the clearances open on lesser housings. The result reads less like a component and more like plant equipment.

Completing the Build

Mounting at this class is engineered with the drive: the adjustable HYDBK3 architecture and heavy fabricated bases both serve, with coupling and interface confirmed against your pump at order. As a repower, the HYDM1425M restores or upgrades fielded big-gear systems without re-engineering the skid — and where an existing system runs hot or lives too near its relief, stepping up to this displacement is often the fix that treats the cause rather than the symptom. WSHPWR verifies the complete drive against your circuit’s numbers before anything in this class ships.

Installation & Operation Notes

Confirm rotation direction against your pump before plumbing — direction-specific porting at this torque makes a backward start expensive. Set the circuit relief within the motor’s rating, route the return generously and filtered to tank, plumb any case drain above reservoir oil level, and engineer cooling as a first-class design item — continuous duty at this scale finds thermal equilibrium wherever the cooler puts it. Mount to structure worthy of the assembly’s mass, torque hardware to spec, verify pump speed at commissioning by the flow-÷-displacement math or a phototach, and hold the pump’s rated 1000 RPM without exception — slow is the entire point of the frames this motor serves.

Quality Assurance & Maintenance

Every HYDM1425M carries Marzocchi’s factory testing and ships only after WSHPWR confirms fitment against your stated pump and circuit. The maintenance program stays gear-minimal at maximum scale: clean, filtered oil, a correct relief, periodic hose-end and drain-line inspection, no internal service schedule — and the low working pressures this displacement enables are themselves a maintenance program, subtracting stress from every component downstream.

HYDM1425M Key Features & Applications

• 8.7 cid — the maximum displacement and highest torque-per-PSI in the gear motor line.
• ~38 GPM of oil drives 1000 RPM industrial pumps at rating, at the gentlest oil pressures available.
• The flow-rich answer where pressure ceilings are fixed by the machine — the system loafs by design.
• Two-line gear simplicity at maximum scale; Marzocchi heavy-frame execution.
• Build sheet and pump interface confirmed at order; the thermal fix for systems running too near relief.
• Ideal for jetter and hydrovac power plants, industrial fixed installations, the largest gear-driven pump platforms, and circuits trading abundant flow for low working pressure.
