HYDBK3 | Hydraulic Motor Pump Base Kit 3 with Mounting Hardware

HYDBK3 | Hydraulic Motor Pump Base Kit 3 with Mounting Hardware | Long-Travel Adjustable

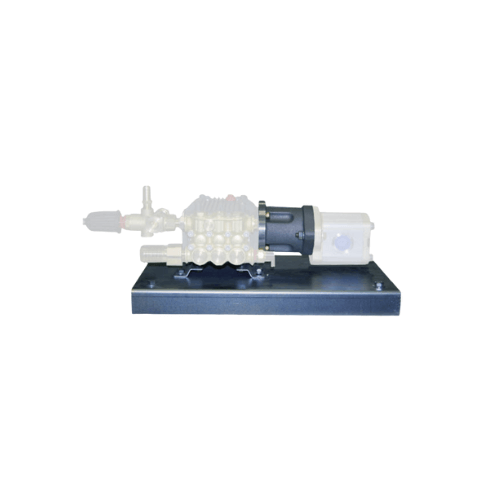

HYDBK3 is the alignment machine of the base kit line: a premium mounting system that pairs any common LSHT hydraulic motor with an Annovi Reverberi triplex plunger pump on one rigid, adjustable plane. Where the other kits fix a specific drive architecture, the HYDBK3 is built to adapt — a heavier 18″ × 12″ × 1-5/8″ plate carrying long-travel motor slides with engraved index marks, a shim pack for fine alignment, coupling-guard standoffs, and pre-slotted patterns with drill-to-fit landings for common motor pilots and AR pump feet. The result is precise centerline and coupling alignment that sets fast, repeats exactly after service, and accepts the motor your hydraulic system actually calls for.

That flexibility is the product. External-gear, gerotor, and geroler motors from Marzocchi, Parker, Danfoss, and their peers all land on the HYDBK3’s patterns; fleets standardize one base across mixed motor inventories, OEM retrofits keep the existing motor and gain a proper mount, and every build inherits the same clean geometry — reduced vibration, protected bearings and seals, and open access to the coupling, oil sight glass, vented dipstick, and fasteners, with perimeter space left for unloader blocks and tidy suction, pressure, and bypass routing.

HYDBK3 Specifications

• SKU: HYDBK3
• Configuration: Premium adjustable hydraulic base kit — long-travel slide architecture
• Base Plate: 18″ × 12″ × 1-5/8″ heavy stock; assembly weight approximately 48 lbs
• Motor Compatibility: LSHT hydraulic motors — external-gear, gerotor, and geroler designs; Marzocchi, Parker, and Danfoss among compatible brands
• Typical Motor Ports: SAE-12 ORB (3/4″) pressure and return; auxiliary SAE-8 ORB (1/2″) case drain where the motor specifies
• Pump Compatibility: Annovi Reverberi triplex plunger pumps — drill-to-fit landings for AR pump feet
• Included: Heavy base plate; long-travel motor slide set with engraved index marks; pump and motor mounting hardware; shim pack; coupling-guard standoffs and fasteners; pre-slotted, drill-to-fit patterns
• Not Included: Pump, motor, coupling, and accessories — sold separately

Why the Adjustable Base

Fixed bases are excellent when the build matches their pattern; the HYDBK3 exists for everything else. The long-travel slides let the motor walk to the exact coupling engagement the pairing needs, the engraved index marks make that position repeatable — pull the motor for service and return it to the same alignment by the numbers — and the shim pack closes the last thousandths. For shops that build more than one configuration, that adjustability compounds: one base SKU on the shelf covers the motor and pump combinations the work brings in, and every assembly leaves with OEM-grade geometry instead of fabricated approximations.

The AR Pump Behind It

The water end on an HYDBK3 build is always Annovi Reverberi — engineered and manufactured in Modena, Italy, shipped with crankcase oil installed, and carrying a vented dipstick, easy-view sight glass, and a 5-year limited conditional warranty (proper hydraulic and water-side installation, operation within published limits; seals and valves are consumable wear items). Typical port sizes across the compatible range: small-frame RK-class pumps run 1/2″ F-BSPP inlets and 3/8″ F-BSPP outlets; mid-frame XWL and RTX pumps run 1″ and 1/2″ — NPT adapters readily available. Keep suction runs short, straight, and oversized from a flooded source, with anti-collapse hose and a coarse inlet strainer.

System Integration

Match motor displacement and hydraulic supply to target pump speed with the standard arithmetic — RPM ≈ 231 × hydraulic GPM ÷ displacement (in³); torque ≈ displacement × PSI ÷ 6.283; hydraulic horsepower ≈ GPM × PSI ÷ 1714 with efficiency applied. Set upstream reliefs for the duty pressure, specify 10–25 micron return filtration with an adequate beta rating, size the reservoir at 2–3× total system flow, and add oil cooling for hot climates, prolonged bypass, or continuous duty. Route any case drain above reservoir oil level to prevent aeration, observe A/B port orientation for correct rotation, and finish the water side properly: adjustable unloader, high-pressure relief, glycerin-filled gauge, and thermal relief valve. Never overspeed the pump or run it dry — and call WSHPWR with your circuit’s numbers for the motor match before you order.

Installation Notes

Set motor and pump on the shared centerline, verify face runout and coupling engagement depth, snug the slides, test-run, recheck alignment, then final-torque the fasteners — the HYDBK3’s index marks record the result for every service after. Plan hose sweeps to avoid kinks near unloader and relief components, and recheck coupling and base fasteners after initial run-up.

HYDBK3 Key Features & Applications

• Long-travel indexed motor slides — fast setup, exact repeatable alignment after every service.
• Accepts the LSHT motor your system calls for: gear, gerotor, or geroler; Marzocchi, Parker, Danfoss, and peers.
• Shim pack, guard standoffs, and drill-to-fit patterns — OEM geometry without fabrication.
• Rigid, alignment-stable plane protects pump bearings and seals from side-loading.
• Open layout preserves access to coupling, sight glass, dipstick, and unloader routing.
• Ideal for mobile wash skids and service trucks, enclosed vans and plant carts, municipal and DOT fleets, rental and contractor systems, sanitation programs, and marine, agricultural, and equipment-yard washdown.
