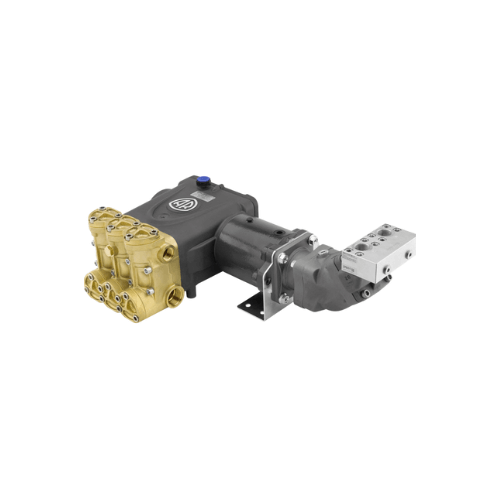

HYD-RTD100.200N Hydraulic Pump | 25 GPM 2900 PSI 1000 RPM

HYD-RTD100.200N | Hydraulic Pump | 25 GPM 3000 PSI 1000 RPM | Solid Shaft

HYD-RTD100.200N delivers the industry’s most standardized pressure at industrial volume: 25 GPM (100 L/min) at up to 3000 PSI (200 bar), per AR North America’s published ratings, from the 1000 RPM, 418-series frame — in the N-version build with the 35mm solid shaft for coupled drives. Three thousand PSI is the number the washdown world tools around: the rating stamped on standard hoses, fittings, trigger wands, and nozzle charts everywhere. The HYD-RTD100.200N speaks that universal language at five or six times the flow of the compact pumps that usually speak it — which is precisely what makes it the multi-operator workhorse of the RTD line.

Do the division and the product appears: 25 gallons at 3000 PSI feeds five 5-GPM circuits or six 4-GPM circuits simultaneously, each at full commercial working pressure, from one pump, one drive, one maintenance schedule. Wash bays running several bays off a header, plants with distributed washdown drops, fleet yards where three crews work at once — installations that would otherwise buy, mount, power, and maintain a row of compact pumps consolidate onto this one frame, and the standard-pressure spec means every accessory downstream comes off the ordinary shelf.

HYD-RTD100.200N Specifications

• SKU: HYD-RTD100.200N
• Configuration: Solid-shaft industrial pump — N version, 35mm solid shaft for coupled or belt drive
• Pump: Annovi Reverberi RTD 100-200 (418-series industrial frame)
• Flow Rate: 25 GPM (100 L/min), per AR North America
• Maximum Discharge Pressure: 3000 PSI (200 bar)
• Rated Speed: 1000 RPM — never overspeed
• Power Requirement: 49.8 HP (37 kW) at full duty, per AR North America
• Shaft: 35mm solid (N version)
• Head Material: Brass with stainless wet-end components; bronze connecting rods
• Plungers: Ceramic
• Weight: Industrial 418-frame class — approximately 128 lbs
• Maximum Fluid Temperature: 140°F

How Much Hydraulic Flow and Pressure Do I Need?

Full duty asks roughly 60 hydraulic horsepower delivered continuously — and here is that number the way your machine’s spec sheet states it: oil GPM × oil PSI ÷ 1,714 must reach about 60. Circuits that qualify: 35 GPM at 3,000 PSI, 30 GPM at 3,500 PSI, or 40 GPM at 2,600 PSI — dedicated truck power systems and purpose-built power units; auxiliary circuits do not reach this class. Circuits that fall short: 25 GPM at 3,500 PSI delivers only ~51 HP and will not hold full duty. The 35mm shaft of the HYD-RTD100.200N then takes the drive through your chosen architecture: a bent-axis piston motor through a flex coupling or bell housing — the Sunfab SCM class WSHPWR stocks for this frame family — an electric motor geared to 1000 RPM on a common base, or an engine through reduction. Relieve within the motor’s rating, filter returns at 10–25 microns, engineer cooling for shift-length duty, and call WSHPWR with your circuit’s numbers — we will confirm the match, and the motor, before you order.

The Standard-Pressure Dividend

Pressure ratings ripple through everything downstream, and 3000 PSI is where the industry’s shelves are deepest. Hose in every length and every duty, quick couplers, swivels, reels, trigger wands, turbo nozzles, surface cleaners — all stocked, all standard, all priced by volume competition. A pump rated above the standard forces its whole downstream onto premium hardware; the HYD-RTD100.200N sits exactly at it, so a five-operator system builds from ordinary catalog parts and every replacement is a stock call. For maintenance managers, that is the quiet economics of the spec: the exotic part of the system ends at the discharge port.

The Known-Interface Build

The N-version 35mm solid shaft is the dimension the drive industry stocks against — coupler halves bored from stock, taper-lock bushings from any bearing house, sheaves for belt layouts — so the integrator drawing a system today orders every drive component today. Fleets running multiple N-shaft RTD pumps standardize one hub size across the family, and no service event ever waits on a proprietary interface. The HYD-RTD100.200N joins that architecture as pure rotating machinery: your motor, your coupling, your base.

The 1000 RPM Constitution

Twenty-five gallons at 1000 RPM means the HYD-RTD100.200N turns a third fewer plunger strokes per gallon than compact-frame speeds, with moderate 200-bar loading keeping each stroke on the friendly half of the wear curve — the combination that lets one industrial pump replace a row of compact ones without inheriting a row of maintenance schedules. Bronze rods carry the loading, valve access stays serviceable in place, and AR’s 418-platform repair kits keep the path standard.

Installation & Operation Notes

Mount the HYD-RTD100.200N horizontally on structure worthy of the frame, bore and fit the coupling to the 35mm shaft per specification, align to tolerance, guard the drive, and verify rotation at commissioning. Suction engineering decides service life at 25 GPM: flooded, filtered, full-size inlet plumbing with buffer-tank feed as standard practice. Fit an unloader and safety relief rated for the working pressure, size nozzle networks to the 25 GPM budget, hold 1000 RPM without exception, and winterize thoroughly between cold-weather shifts.

Quality Assurance & Maintenance

Every HYD-RTD100.200N is factory-tested for flow rate, pressure stability, and vibration before shipment. Maintenance follows the industrial RTD routine — scheduled crankcase oil service, seal inspection, periodic valve checks — on the intervals the slow frame and standard pressure jointly stretch: one schedule where a bank of compact pumps would keep five.

HYD-RTD100.200N Key Features & Applications

• 25 GPM at 3000 PSI on the 1000 RPM industrial frame — AR North America’s published ratings.
• The multi-operator workhorse: feeds five or six full-pressure circuits from one pump and one schedule.
• Standard-pressure dividend: everything downstream comes off the ordinary 3000 PSI shelf.
• Needs ~60 hydraulic HP — 35 GPM at 3,000 PSI class circuits; supply math in your machine’s terms.
• 35mm solid N shaft: the known interface for couplers, bushings, and belt layouts from stock.
• Ideal for multi-bay wash systems, distributed plant washdown, fleet yards running simultaneous crews, and coupled-drive builds standardizing the solid-shaft RTD family.
