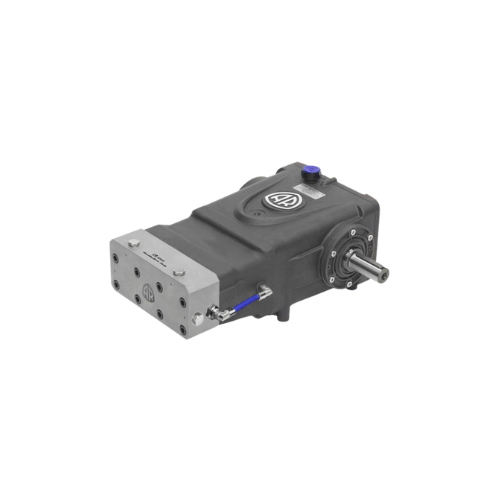

CR18-1000 Ultra-High-Pressure Triplex Plunger Pump — 4.75 GPM at 15,000 PSI

The AR CR18-1000 is an ultra-high-pressure triplex plunger pump engineered by
Annovi Reverberi (AR) for the most demanding industrial cleaning, cutting, hydro-blasting, and
surface preparation environments. Rated at 4.75 GPM and 15,000 PSI at a low
1,000 RPM, this Series 418 CR pump delivers exceptional hydraulic power while dramatically
reducing heat buildup, mechanical wear, and noise compared to high-speed alternatives.

Built around a 35 mm solid stainless-steel shaft (N version) and a forged
stainless-steel pump head, the CR18-1000 is purpose-built for continuous-duty industrial
operation. Weighing 136 lbs and factory-tested under full load, this pump is trusted worldwide
by OEM skid builders, industrial contractors, shipyards, and water-jetting specialists who
require consistent, reliable ultra-high-pressure output day after day.

Whether you’re mounting it on a custom skid, integrating it into an automated cleaning system,
or pairing it with a diesel or electric drive unit, the CR18-1000 is the high-flow centerpiece
of any serious high-pressure system.

CR18-1000 Key Performance Specifications

• Max Flow Rate: 4.75 GPM (18 L/min) — high-volume output for
  demanding applications
• Max Pressure: 15,000 PSI (1,000 Bar) — true ultra-high-pressure
  capability
• Operating Speed: 1,000 RPM max — low-speed design reduces thermal
  load and component fatigue
• Power Requirement: 48.9 EBHP for full-rated performance
• Bore Diameter: 14 mm with 42 mm stroke for optimal volumetric
  efficiency
• Max Fluid Temperature: 140°F — suitable for hot-water and steam
  applications
• Weight: 136 lbs — substantial, skid-ready construction
• Inlet: 1-1/2″ F | Outlet: 1″ F
• Oil Capacity: 137 oz for extended lubrication intervals

Premium Construction & Materials

• Stainless-steel pump head (Series 418) machined from a single forged
  block — resists corrosion, chemical attack, and pressure fatigue
• 35 mm solid stainless-steel crankshaft (N version) provides superior
  torsional strength and precise balance under continuous load
• Ceramic plungers with precision-polished surfaces minimize friction,
  reduce seal wear, and extend service intervals dramatically
• Frictionless bronze connecting rods deliver smooth, low-maintenance
  power transfer between crankshaft and plungers
• Viton O-rings rated for aggressive fluids and high-temperature
  operation — standard across all wetted components
• Die-cast aluminum crankcase with oil-bath lubrication maintains
  thermal stability during extended runtime
• Oversized tapered roller bearings absorb radial and axial loads,
  minimizing vibration under heavy-duty cycles
• Vented oil cap and sight glass for quick, tool-free oil level
  inspection without downtime
• CSID stamp rating: 3 — certified for high-pressure system
  compliance where required

Design & Integration Advantages

• Horizontal pump orientation simplifies skid mounting, frame
  integration, and direct-drive coupling
• 35 mm solid shaft supports direct coupling to electric motors,
  diesel engines, hydraulic drives, and PTO systems without adapters
• Compact, heavy-duty frame fits standard skid footprints used in
  industrial and OEM builds
• Italian precision machining at Annovi Reverberi’s facilities ensures
  tight tolerances and repeatable performance across every unit
• Factory load-tested prior to shipment — verified flow, pressure,
  and seal integrity before it reaches your system
• Compatible with AR safety valves, unloaders, regulators, and bypass
  systems for complete turnkey high-pressure solutions
• Maintains stable, consistent pressure output under fluctuating demand — ideal for
  precision-controlled automated processes

Ideal Applications for the CR18-1000

• Shipyard & marine maintenance — hull cleaning, paint stripping,
  and marine coating removal
• Industrial surface preparation — concrete scarifying, rust removal,
  and coating adhesion prep
• Hydro-blasting & water-jetting — tank cleaning, descaling,
  and tube cleaning in petrochemical facilities
• Pipeline flushing & hydrostatic testing — pressure testing
  pipelines, vessels, and high-pressure assemblies
• Industrial equipment cleaning — degreasing heavy machinery,
  heat exchangers, and process equipment
• Abrasive waterjet cutting support — consistent high-pressure feed
  for cutting systems
• Municipal & utility maintenance — sewer jetting, drain cleaning,
  and infrastructure cleaning
• OEM skid and system builds — where a reliable, high-pressure pump
  core is required

Maintenance & Serviceability

• Open-access design allows plunger, seal, and valve service without
  special tools — reducing labor time and downtime costs
• Standardized AR service kits (seals, valves, O-rings) are widely
  available for fast in-field rebuilds
• Initial oil change recommended at 50 operating hours, then per
  duty-cycle schedule — use SAE 30 non-detergent or AR-approved pump oil
• Inlet filtration required — minimum 20-mesh strainer protects
  plungers and valves from particle contamination
• Engineered viton packings and seals deliver extended service life
  under continuous high-pressure cycling
• Routine inspection of oil level, inlet pressure, and outlet fittings ensures maximum
  pump longevity — recommended before every shift in heavy industrial use

Technical Specifications at a Glance

• Model: CR18-1000 | Series 418 (CR)
• Max PSI: 15,000 | Max Bar: 1,000
• Max GPM: 4.75 | Max L/Min: 18
• Max RPM: 1,000 | Power: 48.9 EBHP
• Shaft: 35 mm Solid, N (Natural) Version
• Head Material: Stainless Steel | O-Ring: Viton
• Inlet: 1-1/2″ F | Outlet: 1″ F
• Bore: 14 mm | Stroke: 42 mm
• Oil Capacity: 137 oz | Weight: 136 lbs
• Orientation: Horizontal | Max Temp: 140°F
• CSID Stamp: 3

Why Professionals Choose the CR18-1000

• Proven ultra-high-pressure performance — 15,000 PSI from a pump
  engineered and manufactured in Italy by the global leader in plunger pump technology
• Low-speed efficiency advantage — 1,000 RPM operation means far less
  heat, noise, vibration, and seal wear than comparable high-speed pumps
• Built for 24/7 industrial environments — every component selected
  for extreme-duty reliability, not just rated output
• Lower total cost of ownership — longer service intervals, widely
  available parts, and easy field serviceability reduce lifetime operating costs
• Versatile system compatibility — pairs seamlessly with AR’s full
  lineup of valves, unloaders, and accessories for complete system builds
• Backed by AR North America — factory support, service dealers
  nationwide, and full parts availability across the U.S. and Canada

The AR CR18-1000 represents the pinnacle of Italian-engineered ultra-high-pressure pump
technology. For contractors, OEM builders, and industrial operators who cannot afford
downtime and demand consistent performance at the extreme end of pressure output, the
CR18-1000 delivers exactly what professionals require — reliably, efficiently, and for the
long haul. Contact WSHPWR for pricing, availability, and system integration support.
