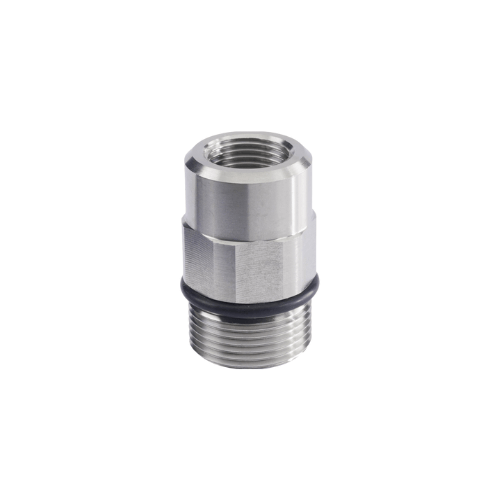

ARF070-1/4F | 1/4 in Female High-Pressure Quick Coupling 10,150 PSI

ARF070-1/4F — 1/4 in Quick Coupling, 10,150 PSI | Female | High-Pressure Series

The ARF070-1/4F is a precision-engineered stainless steel quick coupling built specifically for ultra-high-pressure systems operating up to 10,150 PSI (700 bar). Designed to meet the demands of industrial, hydraulic, and professional cleaning applications, this 1/4-inch female coupling delivers consistent leak-free performance, exceptional sealing reliability, and long-term structural durability in the harshest environments. Whether installed in a fixed hydraulic assembly or a mobile pressure washing system, the ARF070-1/4F ensures dependable operation under continuous high-load conditions.

Every component of the coupling is manufactured with strict dimensional tolerances and quality control standards to ensure consistent engagement and maximum pressure retention. Its rugged stainless steel body, reinforced internal locking structure, and advanced sealing system work together to provide secure fluid transfer and operational safety in extreme-duty applications.

High-Pressure Performance

• Rated for continuous operation at 10,150 PSI (700 bar)
• Engineered for extreme-duty hydraulic and water systems
• Maintains pressure integrity during pulsing and vibration
• Handles rapid flow changes without seal deformation
• Supports high-cycle industrial operations

The ARF070-1/4F is designed to withstand repeated pressure spikes and dynamic load variations commonly found in high-pressure pumps and jetting systems. Its reinforced internal structure prevents expansion or distortion, preserving consistent sealing and mechanical engagement even under aggressive operating conditions.

Durable Stainless Steel Construction

• Manufactured from hardened stainless steel for superior mechanical strength
• Resistant to corrosion, pitting, abrasion, and chemical exposure
• Performs reliably in marine, outdoor, and washdown environments
• Prevents rust formation and galvanic corrosion
• Maintains structural integrity after repeated use cycles

The corrosion-resistant stainless steel body ensures long service life in harsh industrial settings. From chemical plants to wastewater treatment facilities, this coupling is built to resist environmental degradation while maintaining its precision-machined tolerances.

Precision-Machined Internal Design

• Optimized smooth bore geometry for unrestricted flow
• Reduces turbulence and internal pressure drop
• Promotes consistent laminar flow characteristics
• Enhances pump efficiency and overall system balance
• Improves responsiveness in high-pressure circuits

Each ARF070-1/4F unit undergoes CNC machining to ensure exact internal alignment and dimensional accuracy. The smooth internal pathways reduce friction losses and cavitation, helping maintain stable pump output and efficient fluid delivery throughout the system.

Secure Quick-Connect Locking Mechanism

• Automatic locking system provides secure snap-fit engagement
• Hardened steel locking components distribute load evenly
• Vibration-resistant retention prevents accidental disconnection
• Heavy-duty sleeve supports high-pressure stability
• Knurled exterior ensures firm grip in wet or oily conditions

The quick-connect interface allows fast, tool-free operation while maintaining high mechanical retention strength. Once connected, the locking components engage securely around the mating fitting, preventing unintended release under pressure or torque. This design improves both operational efficiency and safety in demanding environments.

High-Performance Sealing System

• Advanced O-ring and backup ring configuration
• Resistant to oils, detergents, solvents, and heat
• Maintains leak-free performance under static and dynamic loads
• Uniform pressure distribution minimizes seal stress
• Prevents extrusion and blowout at maximum rated pressure

The sealing architecture is engineered to maintain elasticity and compression integrity even during continuous high-pressure cycling. By evenly distributing internal pressure across the seal surfaces, the system reduces wear and extends maintenance intervals.

Compact 1/4-Inch Design ARF070-1/4F

• Compact footprint for tight installation spaces
• Lightweight yet reinforced for full-rated pressure capability
• Ideal for portable or mobile high-pressure equipment
• Supports efficient routing in confined layouts
• Maintains strength without increasing bulk

The compact 1/4-inch profile makes this coupling ideal for handheld pressure washers, robotic cleaning systems, and compact hydraulic assemblies. Despite its smaller size, it retains full structural integrity and pressure handling capability.

Universal Compatibility

• 1/4-inch female connection fits standard male quick-coupling fittings
• Compatible with pumps, hoses, spray guns, manifolds, and hydraulic tools
• Interchangeable across a wide range of high-pressure systems
• Suitable for water, hydraulic oil, and compatible industrial fluids
• Simplifies integration into existing assemblies

This universal compatibility reduces system complexity and improves flexibility across multi-equipment operations. Technicians can rely on consistent fit and performance when integrating the ARF070-1/4F into different setups.

Safety-Focused Engineering

• Pressure-tested to meet international high-pressure safety standards
• Designed to resist pressure spikes and vibration fatigue
• Locking system prevents accidental release under load
• Stable mechanical engagement enhances operator safety
• Reduces risk of leaks and environmental contamination

Safety is critical in ultra-high-pressure systems. The reinforced locking and sealing mechanisms help protect both equipment and personnel by minimizing the risk of unexpected disconnection or seal failure.

Operational Efficiency

• Enables fast, tool-free connection and disconnection
• Reduces downtime during hose and accessory changes
• Improves workflow productivity in demanding environments
• Supports high-cycle industrial use
• Enhances overall system responsiveness

Quick-change capability is essential in professional cleaning and hydraulic service operations. The ARF070-1/4F streamlines workflow while maintaining full pressure security.

Low Maintenance Requirements

• Routine inspection of O-rings and locking sleeve recommended
• Light lubrication maintains smooth engagement
• Durable materials reduce wear-related service needs
• Protective dust caps prevent contamination when disconnected
• Easy cleaning preserves long-term sealing performance

Minimal maintenance requirements help reduce operational costs and extend the service life of both the coupling and connected equipment.

Applications

• Industrial pressure washers and surface cleaning equipment
• Hydrostatic testing and high-pressure verification systems
• Sewer jetting and water jetting tools
• Oilfield hydraulic power units
• Automated and robotic cleaning systems
• Manufacturing process fluid transfer systems

ARF070-1/4F

The ARF070-1/4F — 1/4 in Quick Coupling, 10,150 PSI | Female | HP combines heavy-duty stainless steel construction with advanced precision engineering to deliver exceptional sealing reliability, structural strength, and ease of operation. Built for ultra-high-pressure environments, it provides fast, secure, and leak-free connections capable of withstanding extreme hydraulic and mechanical loads. For professional hydraulic systems, jetting equipment, and industrial cleaning operations, the ARF070-1/4F stands as a dependable, high-performance solution designed for long-term durability and consistent results.
