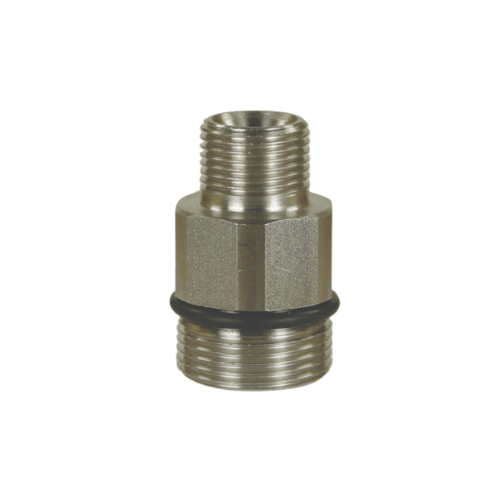

ARF070-1/2M | 1/2 in Male High-Pressure Quick Coupling 10,150 PSI

ARF070-1/2M High-Pressure Quick Coupling 10,150 PSI

• The AR F070-1/2M — 1/2 in Quick Coupling, 10,150 PSI | Male, HP Rated is a stainless-steel,
  high-pressure male quick-connect designed by Annovi Reverberi for the most demanding industrial, hydraulic,
  and pressure-cleaning systems. Rated to 10,150 PSI (700 bar), it delivers safe, leak-free
  performance in applications such as hydrostatic testing, industrial water jetting, and professional pressure
  washer setups where reliability and safety are critical.

Heavy-Duty Construction & Pressure Capability ARF070-1/2M

• Premium stainless steel body: Hardened stainless construction resists corrosion, abrasion, and wear in wet, chemical, or marine environments.
• Ultra high-pressure rating: Engineered for working pressures up to 10,150 PSI, making it suitable for extreme-duty hydraulic and jetting systems.
• Dimensional stability: Maintains shape and sealing precision through repeated pressure cycles and vibration.
• Low pressure drop design: Smooth internal passages minimize turbulence and energy loss across the connection.

Quick-Connect Design & Sealing System

• Male HP plug: Precisely machined male end mates with the matching ARF070-1/2M female coupling to form a secure, high-pressure joint.
• Positive ball-lock mechanism: Internal locking balls or pins automatically engage with an audible click, preventing accidental disconnects under load.
• Advanced O-ring sealing: High-performance elastomer O-ring and backup ring provide leak-free sealing during pulsed flow and pressure spikes.
• Ergonomic locking sleeve: Knurled/ribbed exterior offers a non-slip grip for easy connection and release, even with gloves or wet hands.

Performance in Harsh Environments

• Chemical and detergent resistant: Withstands exposure to oils, detergents, and common industrial fluids.
• Corrosion protection: Stainless steel construction resists rust in marine, agricultural, and outdoor service.
• Compact form factor: Fits easily into tight manifolds, hose reels, and mobile rigs with minimal added weight or bulk.
• Balanced internal volume: Low internal cavity reduces trapped air and speeds pressure equalization when engaged.

ARF070-1/2M Typical Applications

• Ultra high-pressure pressure washer systems and industrial surface preparation rigs.
• Hydraulic power units, tools, and test stands requiring frequent connect/disconnect.
• Hydrostatic and proof testing of hoses, valves, and piping assemblies.
• Industrial and marine water jetting where extreme pressure and corrosion resistance are mandatory.

Key Features

• Model: ARF070-1/2M
• Type: 1/2 in Male High-Pressure Quick Coupling
• Material: Hardened stainless steel
• Max Working Pressure: 10,150 PSI (700 bar)
• Connection: Male quick-connect; mates with AR F070-1/2F female coupling
• Seal: High-performance O-ring with backup ring for leak-free operation
• Locking System: Ball-lock mechanism with ergonomic sleeve for secure, tool-free engagement
• Use Case: High-pressure hydraulic, industrial cleaning, and water-jetting systems requiring ultra-reliable, quick-change connections
