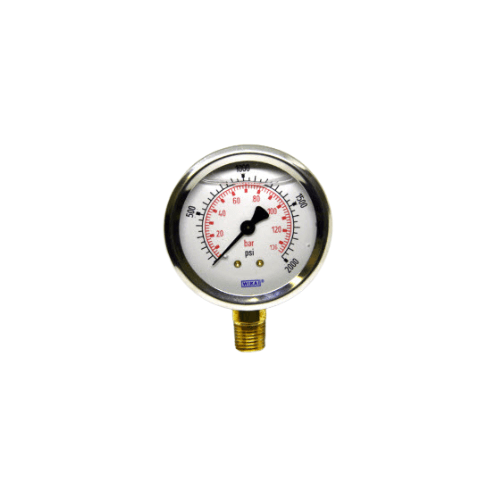

AR3223B | Stainless Pressure Gauge, 0–2,000 PSI, 1/8 in Connection

Overview

The AR AR3223B 2000 PSI Stainless Steel Gauge – 1/8-inch connection is a precision pressure
monitoring instrument engineered by Annovi Reverberi for high-performance pump and pressure washer systems.
Built with a corrosion-resistant stainless steel case and a calibrated Bourdon tube mechanism, this gauge
delivers dependable accuracy, durability, and long-term reliability in demanding industrial and commercial
environments.

Key Features & Applications

Rugged Stainless Steel Construction

• Stainless steel case resists corrosion, moisture, and chemical exposure.
• Polished housing maintains a professional appearance and protects internal components.
• Engineered to withstand vibration and fluctuating pressures in harsh operating conditions.

Accurate 2000 PSI Pressure Monitoring

• Measures system pressure up to 2,000 PSI for low- to mid-pressure pumps and sprayers.
• High-contrast dial with bold markings provides clear, easy-to-read values at a glance.
• Readable in bright sunlight or low-light environments to reduce operator error and fatigue.

Bourdon Tube Sensing Mechanism

• Industrial-grade Bourdon tube converts pressure into smooth, precise needle movement.
• Factory-calibrated for repeatable accuracy across the full scale.
• Stable readings even under frequent cycling and continuous-duty operation.

Compact 1/8-Inch Connection

• 1/8-inch male threaded connection for secure, leak-free installation.
• Stainless connector resists stripping and corrosion over time.
• Compact footprint fits tight manifolds, panels, and pump heads; can be mounted vertically or horizontally.

Fluid Compatibility & System Protection

• Suitable for monitoring water, air, and most non-corrosive fluids used in pressure washing and pumping.
• Helps detect overpressure, leaks, and flow restrictions before they damage equipment.
• Supports consistent cleaning performance and extends pump life by keeping systems within spec.

Easy Installation & Low Maintenance

• Threads directly into pump heads, regulators, or manifolds using standard thread sealant.
• Purely mechanical design requires no external power source.
• Sealed lens and stainless housing minimize maintenance; periodic visual inspection is typically sufficient.

Typical Applications

• Commercial and industrial pressure washers.
• General-purpose pump and fluid handling systems.
• Hydraulic assist circuits, foamers, and wash bays needing reliable pressure feedback.
• Maintenance and diagnostic use for verifying regulator and unloader settings.

Summary

• Model: AR AR3223B Stainless Steel Gauge
• Max Pressure: 2,000 PSI
• Connection: 1/8-inch male thread
• Body: Corrosion-resistant stainless steel case with sealed lens
• Mechanism: Bourdon tube, factory-calibrated for consistent accuracy
• Use: Precise, durable pressure monitoring for pumps, pressure washers, and industrial cleaning systems.
