AR20992 | VR35 Unloader Valve 4000 PSI Heavy Duty Washer Use

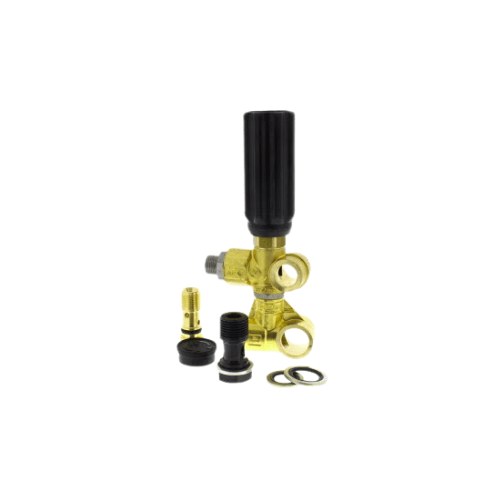

AR20992 – VR35 Unloader Valve – Adjustable to ~4,000 PSI

Description

• VR35-series unloader engineered for consistent, repeatable pressure regulation up to ~4,000 PSI.
• Automatically diverts flow to bypass when the trigger is released to protect pump and system components.
• Precision-machined seats, guided plunger, and reinforced spring pack for smooth operation with minimal chatter.
• Designed for contractor, industrial, and high-duty pressure-washer applications.
• Compact footprint suited for crowded frames, mobile rigs, and wash bays.

AR20992 | VR35 Unloader Valve 4000 PSI Heavy Duty Washer Use

Key Features VR35 Architecture

• • Stable pressure modulation in the mid/high PSI range (~4,000 PSI max).
  • Clean transitions between spray mode and bypass mode.

Automatic Bypass Protection

• • Protects pump, hoses, coil, and fittings from heat and pressure spikes.
  • Reduces cycling shock and extends system life.

Heavy-Duty Internals

• • Hardened spring and guided piston for accuracy under daily use.
  • Quality seals designed for long service life.

Compact, Serviceable Body

• • Easy access to O-rings, piston, and seats for fast rebuilds.
  • Ideal for shop technicians and fleet maintenance.

DIY-Friendly Tuning

• External regulator for fast pressure setting changes.
• Adjusts easily when swapping nozzles or surface cleaners.

Fit, Families & Pump Compatibility

AR20992 Family Mapping

• • M2 Mini-Matic: ~200–2,600 PSI.
  • C2 Gymatic 3/B: ~3,650–3,800 PSI.
  • VR35 (this model): Up to ~4,000 PSI for contractor/industrial rigs.

Pump Fitment

• • Common on AR RR, XM, RK, XW, and XWA pump series.
  • Verify threads, ports, and flow range using AR North America fit charts.

Bypass Routing

• Bypass must return to pump inlet or buffer tank.
• Never restrict or cap the bypass line.

AR20992 Installation

• Depressurize system before installation.
• Follow flow-direction arrows cast into the valve body.
• Support the unloader body when tightening fittings.
• Use proper thread sealant on all connections.
• Route bypass with full-bore hose, unrestricted and kink-free.
• Install a 0–5,000 PSI glycerin gauge for accurate setup.

Initial Setup & Adjustment

• • Back regulator counter-clockwise to minimum.
  • Start water flow with gun open and purge all air.
  • Close gun and slowly adjust clockwise to target PSI (never exceed pump rating).
  • Cycle gun multiple times to verify recovery stability.
  • Secure the setting with jam nut or cap.

Nozzle Matching

• If pressure won’t reach target, use a smaller nozzle orifice.
• If pressure hunts or chatters, inspect for air leaks or clogged inlet screens.

Chemical & Soap Injection

• No built-in injector included.
• Use a downstream injector on the discharge side of the unloader.
• Select an injector orifice sized for system GPM and PSI.
• Use low-pressure tips or dual-lance for chemical draw.
• Add check valve to prevent backflow of chemicals.

Maintenance & Troubleshooting

• • Flush with clean water after detergent use.
  • Seasonally inspect seats, O-rings, piston, and spring pack.
  • Use a thermal relief valve to prevent heat damage during extended bypass.
  • Keep a seal kit on hand for fast rebuilds.

Quick Diagnostics

• Pressure spikes: Bypass restriction or overset regulator.
• Low PSI: Air entrainment, clogged screens, or worn seat.
• Chatter/pulsing: Debris on seat, incorrect plumbing, mismatched nozzle.

Shipping & Support

• Typically ships within 24 hours (UPS Ground).
• Peak season lead time: 2–3 business days.
• AR North America provides diagrams, service kits, and cross-reference charts for fast repairs.

AR20992 | VR35 Unloader Valve 4000 PSI Heavy Duty Washer Use

• Model: AR20992 (VR35 Unloader).
• Pressure Range: Adjustable to ~4,000 PSI (do not exceed pump limits).
• Function: Automatic bypass + adjustable pressure control.
• Construction: Serviceable VR body with precision piston and seats.
• Applications: Contractor rigs, industrial bays, fleet maintenance, mobile wash units.
