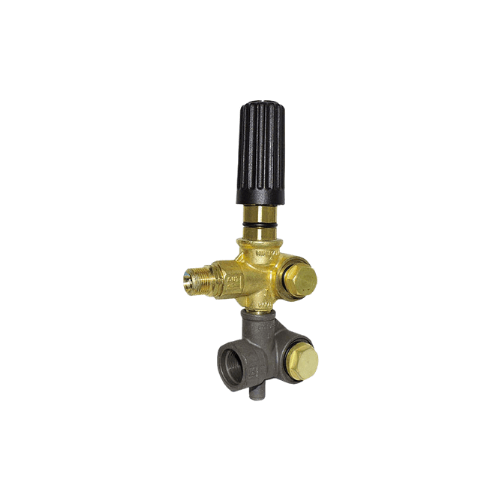

AR21036 | Mini-Matic Unloader Valve 5/260 2600 PSI Pressure Washer

AR21036 | Mini-Matic Unloader Valve 5/260 2600 PSI Pressure Washer

• Heavy-duty compact unloader valve designed for portable and light commercial pressure washers.
• Rated up to 2,600 PSI for stable and reliable pressure regulation.
• Automatically diverts flow to bypass when spray trigger is released.
• Prevents pressure spikes, cavitation, and thermal stress on pump components.
• Mini-Matic 4/B 5/260 design optimized for small-frame machines requiring durability.
• Ideal for mobile contractors, facility maintenance crews, and prosumer-grade washers.

AR21036 Key Features

• Adjustable pressure up to 2,600 PSI.
• 4/B Mini-Matic configuration with reinforced high-duty body.
• Automatic bypass system ensures smooth transition between spray and idle.
• Upgraded internal spring and seat assembly for extended service life.
• Compact housing allows easy installation in portable units.
• Protects pump from overheating, seal wear, and pressure fluctuation.

System Fit & Compatibility

Series Designation

• M2 Mini-Matic: up to ~2,600 PSI.
• C2 Gymatic: up to ~3,800 PSI.
• VR35 Series: up to ~5,100 PSI.

Compatible Equipment

• RR and RM series light commercial AR pumps.
• Portable contractor systems up to 2,600 PSI.
• Compact commercial cleaners such as bin washers, coil cleaners, and detailing rigs.
• Retrofits into similar systems when flow and threads match.

Installation Guidelines

• Depressurize system fully before installation or removal.
• Verify thread size and type per AR North America specifications.
• Apply PTFE tape or thread sealant sparingly to avoid blockages.
• Route bypass line directly to pump inlet or supply tank without restriction.
• Use a 0–3,000 PSI gauge when setting operating pressure.

AR21036 Adjustment Procedure

• Back out adjustment knob fully (counter-clockwise) before starting.
• Start machine with spray gun open to maintain flow.
• Gradually tighten knob (clockwise) until required pressure is reached.
• Do not exceed 2,600 PSI or pump’s rated maximum.
• Cycle trigger several times to confirm smooth spray/bypass operation.

Repair & Maintenance

• Flush with clean water after running chemicals.
• Inspect O-rings, springs, and seats every 300–500 hours.
• Rebuild kits available via AR North America.
• Use a thermal relief valve for systems idling longer than 1–2 minutes.

Troubleshooting

• Fluctuating pressure: check nozzle, spring wear, or debris in valve seat.
• Bypass stuck: inspect bypass hose or adjustment assembly.
• Low pressure: verify nozzle size and correct valve adjustment.

Shipping & Support

• Ships via UPS Ground.
• Typical fulfillment within 24 hours; 2–3 days during peak periods.
• AR North America offers charts, diagrams, and breakdowns for service and repair.

AR21036 | Mini-Matic Unloader Valve 5/260 2600 PSI Pressure Washer

Specifications

• Model: AR21036 – Mini-Matic 4/B 5/260.
• Maximum Pressure: Adjustable to ~2,600 PSI.
• Connections: Standard Mini-Matic thread set (verify fit chart).
• Bypass: Automatic pressure-activated redirection.
• Construction: Reinforced body with precision-machined internals.
• Applications: Portable washers, light commercial rigs, prosumer systems.

Bottom Line

• Compact, reinforced, and designed for demanding 2,600 PSI systems.
• Extends pump life by stabilizing pressure and preventing overheating.
• A professional-grade upgrade for small-frame pressure washers.
