VRT3-250 | 3700 PSI 27M Unloader Valve Blue Spring Duty Valve

VRT3-250 – Unloader Valve – 3,625–3,700 PSI – Up to 10.5 GPM

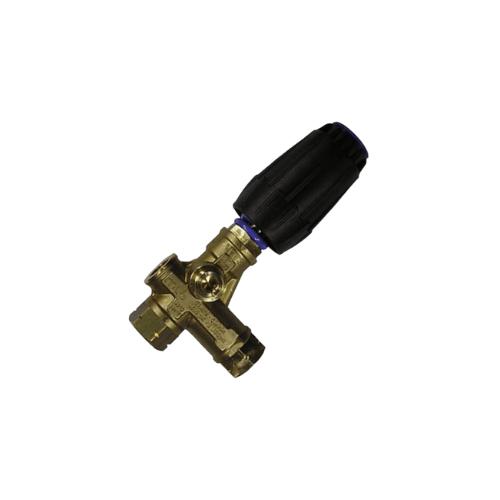

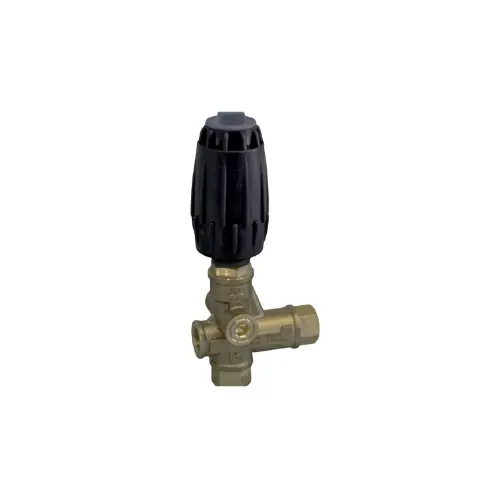

The VRT3-250 unloader valve is a heavy-duty, VRT3-series pressure-washer unloader engineered
to regulate and protect systems operating in the 250 bar class (≈ 3,625–3,700 PSI) at flows
up to 10.5 GPM. Built on the proven Mecline/AR VRT3 platform, it uses a blue spring for
higher-pressure regulation and automatically diverts water to bypass the moment the spray trigger is released.
This reduces heat, water hammer, and seal wear while maintaining stable working pressure for consistent cleaning
power in industrial wash bays, contractor skids, and facility maintenance rigs.

• Heavy-duty VRT3-series unloader for 250 bar (≈ 3,625–3,700 PSI) systems.
• Handles flows up to 10.5 GPM for commercial and industrial rigs.
• Automatic bypass on trigger release to protect pumps and downstream components.

What This Means for Your Rig

• VRT3-250 Blue-spring pressure class provides headroom for long hose runs, turbo nozzles, and demanding tools.
• Stable regulation helps pumps last longer while operators work faster with fewer pressure swings.
• Reduces heat buildup, water hammer, and seal wear during all-day operation at higher pressures.

Performance Specs VRT3-250 (Quick Reference)

• Max Pressure: 250 bar (≈ 3,625–3,700 PSI)
• Max Flow: up to 10.5 GPM
• Temperature: up to 194 °F (90 °C) typical for VRT3; confirm seals for hot chemical use
• Ports: standard VRT3 port layout; commonly 3/8″ FNPT inlet / outlet / bypass
  (adapters or kit variants may present as 27M; verify supplied configuration)
• Control: adjustable pressure via large hand knob; blue spring for the 250-bar class
• Typical Use: trapped-pressure unloader for commercial cold/hot-water systems

Build & Materials (Made to Last)

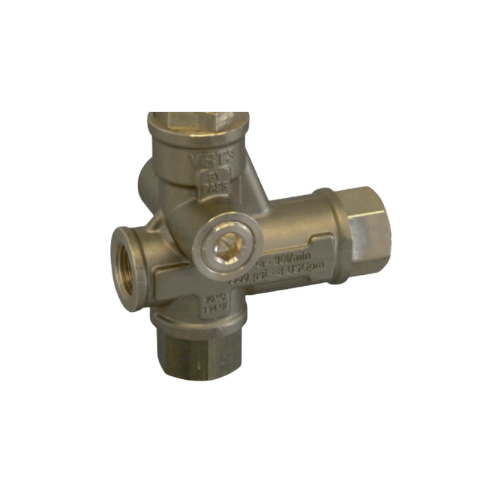

• Reinforced VRT3 body with robust valve assembly for long service life.
• Widely available VRT3 wear parts make it easy to service and keep regulation in spec.
• Multiple ports simplify plumbing with gauge tees, hose reels, and return-to-tank layouts.

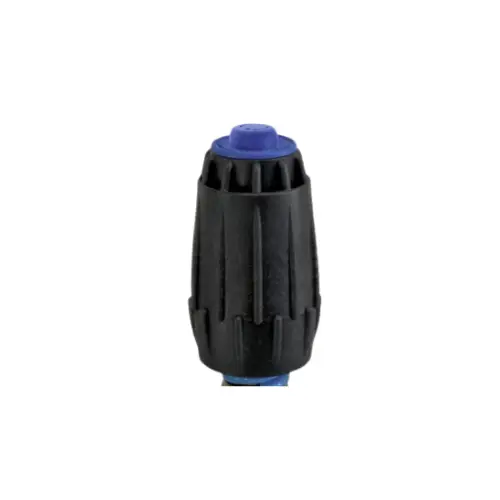

• Ergonomic hand knob allows precise, incremental pressure changes in the field.
• Blue spring clearly identifies the higher-pressure 250-bar class for multi-rig fleets and service centers.

Benefits & Differentiators (Why Choose This Model)

• Heavy-duty pressure class with blue-spring regulation for stable output near 250 bar.
• Smooth bypass behavior helps protect pump seals and accessories from spikes and water hammer.
• Fast, repeatable setup: hand-knob control makes dialing in pressure simple across different tips and hose
  lengths.
• Service-friendly: common VRT3 wear parts and repair kits keep maintenance predictable and fast.
• Flexible plumbing: dual inlet/bypass ports support gauge placement, reels, tanks, and return lines.
• Proven platform widely used by OEMs and pro contractors for reliability and uptime.

Industries & Applications

• Industrial cleaning systems and facility wash bays.
• Contractor-grade rigs for fleet, heavy equipment, and construction sites.
• Municipal and public works cleaning (sidewalks, garages, parks).
• Food and agriculture equipment washdown (verify chemical compatibility).
• Hood and duct cleaning requiring consistent pressure for degreasing.
• Manufacturing and recycling plants (floor, bin, and equipment cleaning).

Compatibility & Fit VRT3-250 (Mounting / Plumbing / Nozzles)

• Plumbing & orientation: install downstream of the pump and upstream of hose/reel;
  route bypass back to tank if your system design requires recirculation. Use high-pressure-rated fittings
  and thread sealants approved for water service.
• Porting: standard VRT3 layout is commonly 3/8″ FNPT for inlet, outlet, and bypass.
  Some kits or regional builds may include adapters labeled 27M—verify the supplied configuration and match
  fittings accordingly.
• Power pairing: ideal for triplex pumps delivering up to 10.5 GPM in the 3,600–3,700 PSI range.
  Works across gas-engine and electric builds when paired with a regulator, thermal relief, inlet filtration,
  and burst-rated hose/wand assemblies.
• Nozzle / orifice guidance:
  • Select a spray tip orifice that matches your pump’s GPM at the target PSI; correct orifice is essential for stable pressure.
  • With water flowing (trigger open), turn the knob to reach working pressure, then lock the setting.
  • Turbo nozzles can create momentary spikes; ensure every component—including the unloader—is rated at or above system pressure with safety margin.
• Recommended accessories: high-pressure hose (rated ≥ system PSI), thermal relief valve,
  inlet filter/screen, and a pressure gauge tee for accurate setup and troubleshooting.

Setup, Service & Reliability

• Prime with clean water, purge air, and confirm supply before first start.
• Adjust pressure only with the trigger pulled to avoid false readings and over-pressure.
• Inspect inlet screens regularly; watch for chatter or creeping pressure as signs of wear or contamination.
• Service using the correct VRT3 repair kit as needed, following a preventive maintenance schedule.
• Keep temperature, chemical exposure, and water quality within manufacturer limits to maximize seal life and
  overall efficiency.

VRT3-250 | 3700 PSI 27M Unloader Valve Blue Spring Duty Valve

What’s Included

• VRT3-250 unloader valve with adjustable hand knob and blue spring.
• Standard VRT3 porting with supplied fittings/adapters (verify configuration).
• Basic installation and setup guidance.
