AR20926 | Mini Unloader Valve 1/8 F GHT 2600 PSI Compact Bypass

AR20926 | Mini Unloader Valve 1/8 F GHT 2600 PSI Compact Bypass

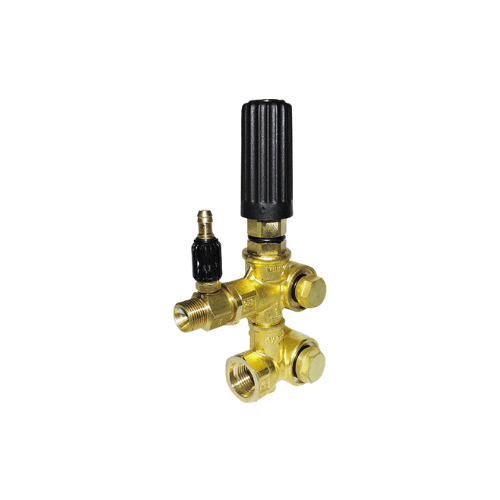

The Annovi Reverberi AR20926 Mini-Matic 4/B Unloader Valve is the
compact, GHT-ported member of AR’s Mini-Matic (M2) unloader family, purpose-built for
small and portable pressure-washer platforms that cycle on and off constantly. Within
the M2 architecture, working pressure is adjustable from roughly
200 PSI up to ≈2,600 PSI (always stay within your pump’s ratings).
When the spray-gun trigger is released, the AR20926 shifts instantly to bypass,
bleeding off pressure and recirculating flow to protect the pump, coils, hoses, and
fittings from damaging spikes and heat. A 1/8″ female GHT
connection keeps integration simple on compact frames, cart units, and
residential/light-commercial rigs where space is tight and service access matters.

Why Choose AR20926

Choose the AR20926 when you need professional behavior in a small package: stable
regulation, clean cut-in/cut-out, and long seal life in tools that run intermittent
duty (driveways, decks, vehicles, storefronts, mobile detailers, rental fleets).
Compared with consumer unloaders, Mini-Matic internals are precision-machined for
smoother modulation and reduced chatter at low flows—ideal for small pumps and
fine-orifice nozzles.

Key Features

• Mini-Matic (M2) design: Adjustable from about 200 to ≈2,600 PSI for
  compact machines with excellent trigger-cycling stability.
• Automatic bypass protection: Prevents pressure spikes and thermal
  damage with smooth transitions from spray to idle.
• Serviceable construction: Hardened spring pack, guided plunger, and
  quality seals that maintain repeatable set pressure and long intervals between
  rebuilds.
• Compact footprint: 1/8″ F GHT porting for quick swaps and easy
  hose routing inside tight shrouds.
• DIY-friendly tuning: External regulator for fast set-point changes
  when swapping tips or tools.

Fit, Families & Cross-Selection

• Family: M2 / Mini-Matic 4/B (this model = AR20926, GHT variant).
• Pressure envelope: ~200–≈2,600 PSI.

If your work routinely needs higher pressure:

• C2 / Gymatic 3/B unloaders: ≈3,650–3,800 PSI for contractor-grade systems.
• VR / VR35 unloaders: Up to ≈5,100 PSI and commonly paired with RR, XM, and RK series pumps.

Always use AR North America fit charts to confirm port threads, orientation, and flow
compatibility with your RR, XM, RK, XW/XWA, or equivalent pump. The bypass line must
return to the pump inlet or a supply/buffer tank—never cap or dead-head the bypass.

Installation (Techs & DIY)

1. Shut down & depressurize: Water on, engine/motor off, then open
   the gun to vent residual pressure.
2. Confirm flow direction: Follow casting arrows; reversed plumbing
   causes hunting and heat.
3. Seal & support: Apply proper thread sealant and hold the body
   while tightening to avoid stress cracks.
4. Plumb the bypass: Use full-bore hose back to inlet or tank; keep
   runs short, kink-free, and unrestricted.
5. Install a gauge: A 0–5,000 PSI glycerin-filled gauge at the manifold
   makes setup and diagnostics easier.

Initial Setup & Adjustment

1. Back the regulator counter-clockwise to minimum before start-up.
2. Start water, purge air, and run with the gun open.
3. Close the gun and increase pressure clockwise to the target
   (≤≈2,600 PSI, within system limits).
4. Cycle the trigger several times and verify stable recovery without overshoot or
   chatter.
5. Lock the adjuster (jam nut or cap).

Nozzle matching: If you cannot reach target PSI without bottoming the
spring, your tip is too large—step down one orifice. If pressure hunts or chatters,
check for air leaks, clogged inlet screens, or a worn seat/valve.

Chemical / Soap Injection

The AR20926 is an unloader only and does not contain an integral
injector. For detergents, add a downstream injector sized to your GPM/PSI and install
it after the unloader. Use a wide-angle tip or low-pressure mode for dependable draw
and install a check valve to prevent back-flow into chemical lines.

Maintenance & Troubleshooting

• Flush after chemicals: Finish each job with fresh water to protect seals and seats.
• Inspect seasonally: Check seats, O-rings, and the spring pack; replace at the first sign of drift or chatter.
• Thermal relief valve: Recommended if you idle in bypass for extended periods—bypass water heats quickly.
• Keep a seal kit on hand: A ten-minute rebuild beats extended downtime.

Quick Diagnoses

• Spikes: Bypass restriction, undersized nozzle, or regulator over-tightened.
• Low PSI / slow recovery: Air entrainment, clogged inlet, or worn seat.
• Chatter / pulsing: Debris on seat, mis-routed bypass, or mismatched tip.

Shipping, Lead Times & Support

• Fulfillment: Typically ships via UPS Ground; most orders leave within
  24 hours (allow 2–3 business days during peak season).
• Support: AR North America provides fitment charts, exploded views,
  and parts kits for fast service in the field or shop.

Summary Specs

• Model: AR20926 Mini-Matic 4/B (M2).
• Connection: 1/8″ female GHT.
• Working range: Adjustable ~200 to ≈2,600 PSI (observe pump limits).
• Function: Automatic bypass plus adjustable pressure regulation for
  compact platforms.
• Use cases: Compact residential washers, mobile detail rigs, light
  commercial carts where small size and professional stability are required.

Bottom line: The AR20926 delivers professional-grade protection and
smooth regulation in a compact, GHT-friendly form—easy to install, simple to tune, and
tough enough for everyday use in small and portable pressure-washing systems.
