AR20891 | Mini-Matic 4/B Unloader Valve 2600 PSI Upgrade Model

AR20891 | Mini-Matic 4/B Unloader Valve 2600 PSI Upgrade Model

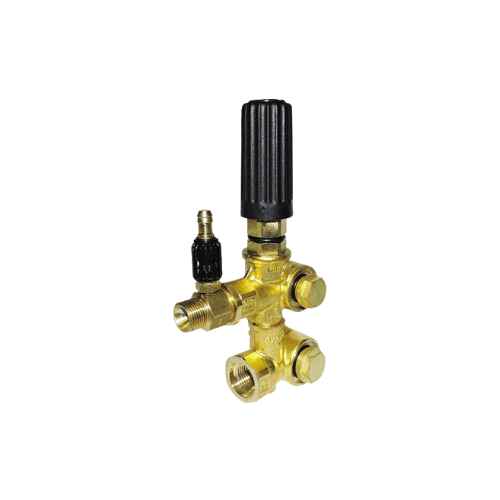

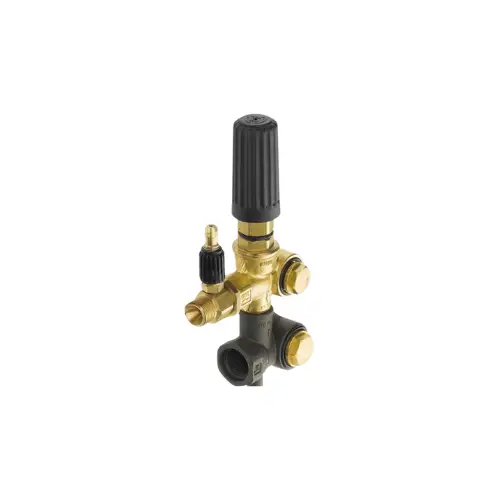

The Annovi Reverberi AR20891 Mini-Matic 4/B Unloader Valve is the
professional-grade member of AR’s Mini-Matic (M2) unloader family, purpose-built for
compact gas/electric pressure washers and mobile carts that cycle frequently through
start/stop operation. Within the M2 range, working pressure is adjustable from
approximately 200 PSI up to 2,600 PSI (never exceed your pump or
system limits). The valve automatically diverts flow to bypass the moment the spray gun
trigger is released, preventing pressure spikes, heat buildup, and seal damage. This
protects the pump, stabilizes cleaning performance, and extends overall service life.
Compared with consumer unloaders, the AR20891 features heavier-duty internals, improved
pulsation control, and an adjustable design that lets technicians dial in set pressure
for different nozzles, tools, or materials.

When to Choose AR20891

Choose the AR20891 when you need a compact form factor with professional reliability:

• Contractor-grade portable machines and mobile wash rigs.
• Facility maintenance carts and light industrial wash stations.
• Daily-use systems that do not require the higher pressure capability of Gymatic (C2)
  or VR35 unloaders.

Typical applications include building maintenance, fleet grooming, agriculture
outbuildings, shop floors, and rental or repair programs where easy installation and
fast field service matter.

AR20891 | Mini-Matic 4/B Unloader Valve 2600 PSI Upgrade Model

Key Features

• Mini-Matic (M2) architecture: Smooth cut-in/cut-out behavior from low
  flow up to about 2,600 PSI, ideal for frequent trigger cycling.
• Automatic bypass protection: Redirects water instantly when the gun
  is idle to prevent thermal shock and overpressure events.
• Professional construction: Precision-machined seats, hardened spring
  pack, and chemical-resistant seals for long service intervals.
• Compact and serviceable: Small footprint for tight frames with
  common wear parts that are straightforward to replace.
• Adjustable setpoint: Tool-adjustable regulator lets you tailor
  working pressure to the nozzle or task without hunting or chatter.

Compatibility & Fit

• Family: M2 / Mini-Matic 4/B (adjustable ~200–≈2,600 PSI).
• Systems: Compact gas/electric washers, skid or cart units, light
  industrial bays.
• Pumps: Use AR North America fit charts to verify port threads, flow
  (GPM), and mounting orientation for your exact RR, XM, RK, XW/XWA, or other series.
  If your work regularly exceeds about 2,600 PSI, consider a C2 / Gymatic 3/B
  (≈3,650–3,800 PSI) or VR35 (up to ≈5,100 PSI) unloader instead.
• Bypass routing: The bypass line must return to pump inlet or a
  supply tank per AR guidelines—never cap or dead-head the bypass.

Installation (Shop & DIY Friendly)

1. Power down & depressurize: Shut off engine/motor and water
   supply, then open the gun to relieve residual pressure.
2. Confirm flow direction: Follow casting arrows or markings; reversed
   flow causes erratic pressure and excessive heat.
3. Thread prep: Use proper sealant or tape, support fittings to avoid
   body stress, and torque to specification.
4. Plumb bypass correctly: Run full-size hose back to inlet or buffer
   tank; keep runs short, kink-free, and unrestricted.
5. Gauge it: Install a glycerin-filled gauge at the manifold to set and
   verify working pressure.

First-Start Adjustment

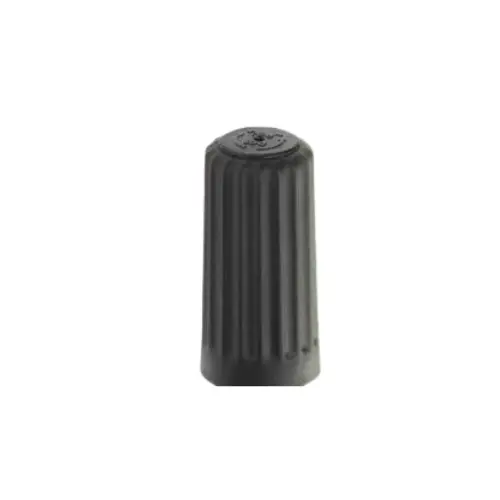

1. Back the regulator fully counter-clockwise (minimum) before startup.
2. Start water, purge air, and with the gun open bring the unit up to flow.
3. Close the gun and slowly increase pressure by turning the adjuster clockwise to the
   target setting (≤≈2,600 PSI).
4. Cycle the gun multiple times and confirm steady recovery with no overshoot or
   hunting.
5. Lock the adjuster in place with the jam nut or cap.

Nozzle matching tip: If you cannot reach target PSI without bottoming
the spring, your spray orifice is too large—step down one size. If pressure hunts,
check for air leaks, dirty inlet screens, or worn seats and seals.

Chemical & Soap Injection

The AR20891 does not include an integral injector. For detergents, add
a downstream injector sized to your GPM/PSI and install it after the unloader. Match
the chemical orifice and check valve to ensure reliable draw at lower pressures when
using wide-angle tips or low-pressure settings.

Maintenance & Reliability

• Flush after chemicals: Rinse with fresh water; soap and caustics left inside shorten seal life.
• Inspect seasonally: Check seats, O-rings, and the spring pack; replace at the first sign of drift or chatter.
• Use a thermal relief valve: Install one if long bypass idles are expected—bypass water heats rapidly.
• Keep spares on hand: A small seal/spring kit on the shelf cuts downtime to minutes.

Troubleshooting Quick Hits

• Spiking / overpressure: Bypass restriction, undersized nozzle, or adjuster over-tightened.
• Slow recovery / low PSI: Air entrainment, clogged inlet filter, or worn seats/seals.
• Chatter / pulsing: Incorrect nozzle sizing, debris on seat, or mis-routed bypass line.

Shipping & Support

• Fulfillment: Stocked by AR North America; typical UPS Ground
  dispatch within 24 hours (allow 2–3 business days during peak season).
• Support: Parts, technical sheets, and pump fitment data available
  through AR North America resources and service partners.

AR20891 | Mini-Matic 4/B Unloader Valve 2600 PSI Upgrade Model

• Model: AR20891 Mini-Matic 4/B (M2).
• Working range: Approximately 200–2,600 PSI (observe pump/system limits).
• Function: Automatic bypass with adjustable pressure regulation.

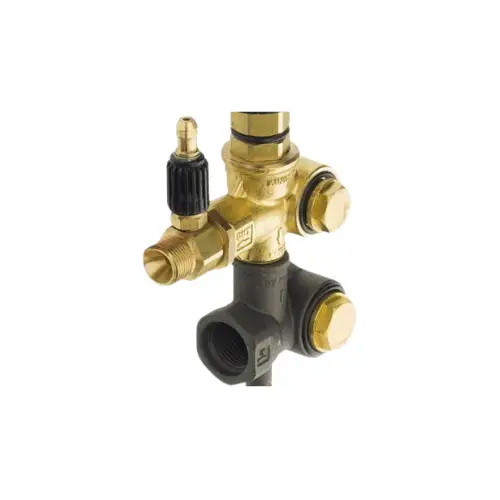

• Construction: Compact body, precision-machined internals, serviceable design.
• Use cases: Professional compact cleaners, contractor portables, and
  light industrial systems needing stable, repeatable pressure with frequent cycling.

Why AR20891?

The AR20891 Mini-Matic 4/B Unloader Valve delivers professional
stability in a compact package—easy to install, simple to tune, and tough enough for
daily use—so your pump runs cooler, longer, and safer in demanding light-commercial and
residential applications.
