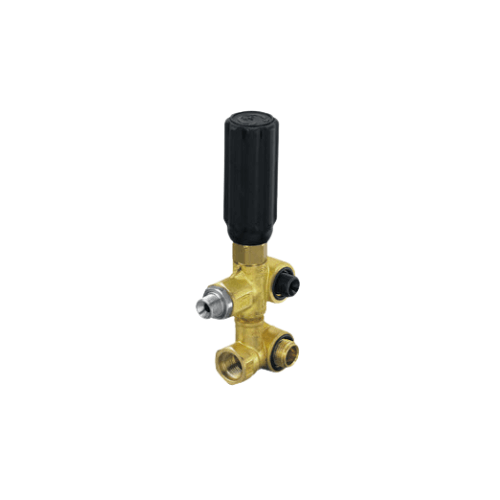

AR20477 | Gymatic 3/B Unloader Valve 3650 PSI Compact Body

AR20477 – Gymatic 3/B Unloader Valve – 3,650–3,800 PSI

Product Overview

• The AR20477 Gymatic 3/B unloader valve is a professional-grade pressure regulation component designed for commercial and industrial pressure washer systems.
• Rated for operating pressures between 3,650 and 3,800 PSI, it is engineered to deliver stable pressure control while protecting pumps and system components during frequent trigger cycling.
• This model is part of the Annovi Reverberi Gymatic (C2) unloader family, developed for higher-pressure applications where durability, consistency, and safety are critical.
• Precision machining, heavy-duty materials, and factory calibration make the AR20477 well suited for contractor rigs, fleet wash systems, and industrial washdown installations.

Pressure Regulation & System Safety

• The primary function of the AR20477 is to automatically divert water flow into bypass when the spray gun trigger is released.
• This action prevents sudden pressure spikes that can damage pump seals, valves, hoses, and fittings.
• By stabilizing system pressure during stop-and-go operation, the unloader reduces mechanical shock and stress on the pump crankcase and bearings.
• Consistent pressure control improves operator safety and helps maintain predictable cleaning performance under varying workloads.
• The Gymatic pressure-actuated design responds quickly to changes in system demand, minimizing pressure overshoot and unloader chatter.

Construction & Durability

• Precision-machined brass internal components provide excellent corrosion resistance and structural strength.
• Stainless steel springs and hardened internal elements maintain accurate pressure regulation over long service intervals.
• The reinforced housing is designed for continuous-duty commercial and industrial use, even in high-cycle applications.
• High-quality sealing materials resist wear, heat, and common industrial cleaning chemicals.
• Each valve is factory-tested to verify pressure stability, bypass function, and leak-free operation before shipment.

Installation & Adjustment

• The AR20477 is compatible with a wide range of Annovi Reverberi pumps and professional pressure washer systems operating in the 3,500–4,000 PSI class.
• Installation uses standard high-pressure fittings and layouts, making it easy to retrofit or replace existing unloaders.
• Pressure adjustment is accomplished via a simple screw-and-locknut mechanism.
• This allows fine tuning of operating pressure within the rated 3,650–3,800 PSI range to match pump output and nozzle sizing.
• Service access is straightforward, allowing adjustment or inspection with basic hand tools in the field.

Chemical Injector Notes

• The AR20477 does not include an integrated chemical injector.
• This design supports cleaner system layouts and avoids interference with bypass performance.
• Downstream chemical injectors can be added when detergent or soap application is required.
• Separating pressure regulation from chemical injection improves reliability and simplifies troubleshooting.

Shipping & Availability

• The AR20477 is stocked through AR North America’s domestic distribution network.
• Most orders ship within 24 business hours when inventory is available.
• During peak seasons, lead times may extend slightly depending on demand.
• The valve ships fully assembled and ready for installation with no modification required.

Product Family & Compatibility

M2 Minimatic Unloaders

• Designed for lighter-duty systems operating in the 2,600–2,900 PSI range.
• Typically used on smaller commercial and prosumer pressure washers.

C2 Gymatic Unloaders

• Designed for professional-grade systems operating between approximately 3,650 and 4,200 PSI.
• The AR20477 is part of this family and is commonly paired with mid- to high-pressure triplex pumps.
• Ideal for contractor and industrial applications requiring reliable pressure control under frequent cycling.

VR35 Unloaders

• Used on select AR pump families where alternate flow or bypass characteristics are required.
• Often selected for specialized system designs or higher flow configurations.

Key Benefits

• Stable pressure regulation up to 3,800 PSI.
• Automatic bypass protection extends pump and component life.
• Rugged construction suitable for commercial and industrial duty cycles.
• Easy installation and adjustment reduce setup time.
• Factory-tested performance ensures dependable operation.
• Compatible with a wide range of professional pressure washer systems.

Applications

• Industrial cleaning of tanks, machinery, and production equipment.
• Contractor mobile rigs for fleet washing and construction cleanup.
• Commercial pressure washers operating in continuous-use environments.
• Municipal facilities, warehouses, and plant maintenance operations.
• Any high-pressure system requiring reliable bypass protection and pressure stability.

Conclusion

• The AR20477 Gymatic 3/B unloader valve is a professional solution for pressure washer systems operating in the 3,650–3,800 PSI range.
• Its precision brass construction, stainless steel internals, and reliable bypass operation protect pumps and improve system longevity.
• Designed for contractor, industrial, and commercial environments, the AR20477 delivers consistent pressure control, simplified servicing, and dependable performance.
