AR1588-LJ | Flange F14 Lovejoy Pump Mount Kit

AR1588-LJ | F14 Flange Lovejoy Pump Mount Kit

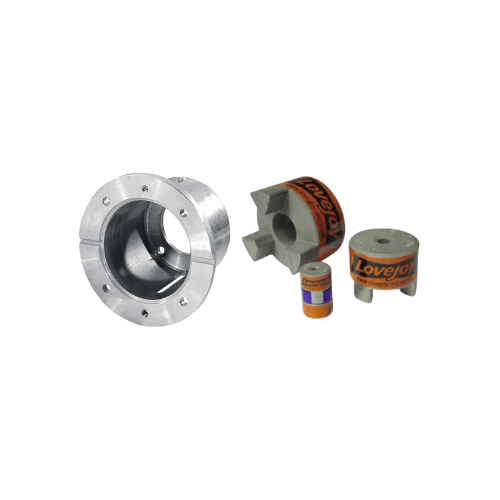

The AR1588-LJ is a factory-engineered F14 NEMA bell housing and Love-Joy style flexible coupling set from A.R. North America, purpose-built to provide precise, reliable, and vibration-dampened coupling between electric motors and compatible AR high-pressure pumps. Designed as a complete, matched assembly, the AR1588-LJ includes the bell housing, flexible jaw coupling hubs, and elastomer spider insert required to properly connect a NEMA 182/184 frame electric motor to an AR pump shaft.

This kit eliminates the guesswork and fabrication often associated with motor-pump alignment. By maintaining exact shaft spacing, concentricity, and angular alignment, the AR1588-LJ helps reduce vibration, noise, heat, and premature wear on pump seals, bearings, and motor shafts. For OEM builders, system integrators, maintenance departments, and service shops, it provides a true drop-in mounting solution that improves reliability, reduces installation time, and protects critical rotating components.

Rather than sourcing bell housings, couplings, and inserts separately, the AR1588-LJ provides a fully engineered solution built to AR specifications. This ensures consistent performance in pressure washer systems, industrial cleaning skids, central wash-down systems, and process washing installations that demand long service life and dependable operation.

What the AR1588-LJ Includes

F14 Bell Housing

• F14 motor flange configuration designed specifically for NEMA 182–184 frame electric motors, providing a rigid, precisely machined mounting interface between the motor and pump.
• Machined pilot diameters and bolt patterns match compatible AR pump models, ensuring correct alignment and eliminating field measurement and fabrication.
• Typically manufactured from high-strength aluminum, offering an optimal balance of rigidity, reduced weight, and corrosion resistance in wet or chemical-prone environments.
• Fully encloses and protects the coupling zone while still allowing sufficient airflow for motor cooling and heat dissipation.

Love-Joy Style Flexible Coupling Set

• Includes precision-machined jaw coupling hubs for both motor and pump shafts, along with a resilient elastomer spider insert to transmit torque smoothly.
• The flexible jaw design absorbs vibration and shock loads generated by pump pulsation, reducing stress on bearings and seals.
• Helps compensate for minor angular, parallel, and axial misalignment that can occur during installation or thermal expansion.
• Split hub and keyed-shaft configuration allow straightforward installation using standard tools, keys, and set screws.

Key Features & Benefits

Precise Motor–Pump Alignment

• CNC-machined faces and pilot diameters keep the motor and pump perfectly concentric, minimizing shaft runout and side loading.
• Correct shaft spacing is engineered into the kit, ensuring the coupling spider operates within its optimal compression range.
• Reduced vibration and smoother operation extend the service life of bearings, seals, and crankcase components.

Time-Saving OEM Solution

• Eliminates the need to fabricate custom brackets, adapter plates, or shaft spacers.
• Provides a standardized mounting solution for OEM builders and skid manufacturers who require consistent assembly quality.
• Reduces installation time, rework, and alignment troubleshooting during both production and field repairs.

Improved System Reliability

• Flexible coupling absorbs torsional shock from pump pulsation, reducing fatigue on shafts and internal components.
• Lower vibration translates into quieter operation, reduced heat buildup, and extended maintenance intervals.
• Protects motor bearings from axial and radial loads caused by misalignment.

Typical Applications

Electric Motor-Driven Pump Assemblies

• Industrial pressure washer skids: Stationary and portable wash systems using AR triplex pumps and NEMA 182/184 electric motors.
• Central wash-down systems: Food processing plants, logistics hubs, and manufacturing facilities utilizing centralized high-pressure water distribution.
• Process and CIP washing: Clean-in-place and process circulation systems where consistent motor-pump alignment ensures reliable fluid movement.
• Sanitation and hygiene systems: Installations requiring dependable performance in wet, chemical-heavy, or temperature-variable environments.

Service, Repair & Retrofit Work

• Replacement of worn or damaged bell housings and couplings in existing systems.
• Upgrades from belt-driven or misaligned direct-drive systems to precision-coupled electric motor assemblies.
• Standardization of spare parts inventory for maintenance teams supporting multiple AR pump installations.

Technical Specifications

• Model: AR1588-LJ
• Type: F14 NEMA bell housing with Love-Joy style flexible coupling
• Motor Frame Compatibility: NEMA 182–184
• Flange Series: F14 motor flange family
• Shaft Interface: Electric motor shaft to AR pump shaft via jaw coupling and elastomer spider
• Bell Housing Material: Aluminum alloy
• Coupling Material: Steel or alloy hubs with elastomer insert
• Category: Motor-to-pump mounting and coupling accessory

Installation Guidelines & Best Practices

Installation Tips

• Confirm compatibility between the AR1588-LJ, your specific AR pump model, and NEMA 182/184 motor frame prior to installation.
• Clean all shaft surfaces thoroughly and install shaft keys correctly to prevent fretting or movement under load.
• Slide coupling hubs into position per manufacturer recommendations, ensuring correct spacing for the elastomer spider.
• Rotate the assembled motor and pump by hand before startup to verify smooth movement and absence of binding.
• After initial run-in, recheck all mounting bolts and coupling set screws to ensure proper torque retention.

Maintenance Recommendations

• Inspect the elastomer spider periodically for cracking, flattening, or wear, replacing it as needed to maintain proper damping.
• Monitor vibration levels and noise during operation, as sudden changes may indicate coupling or alignment issues.
• Keep the bell housing area clean and free of debris to ensure adequate cooling and ease of inspection.

Why Choose the AR1588-LJ Mount Kit

The AR1588-LJ F14 flange Love-Joy pump mount kit provides a professional, OEM-grade solution for connecting AR high-pressure pumps to NEMA 182/184 electric motors. By combining precise mechanical alignment with flexible torque transmission, it significantly improves system longevity, reliability, and performance. Compared to improvised mounting solutions, the AR1588-LJ delivers smoother operation, lower maintenance requirements, and a cleaner, more compact system layout.

For OEM builders, industrial maintenance teams, contractors, and system integrators who demand consistent, high-quality installations, the AR1588-LJ is the preferred choice. Its engineered fit, durable construction, and time-saving design make it an essential component in any professional electric motor–driven AR pump system.
