5301 | 1/4 in Female Brass Quick Coupler

5301

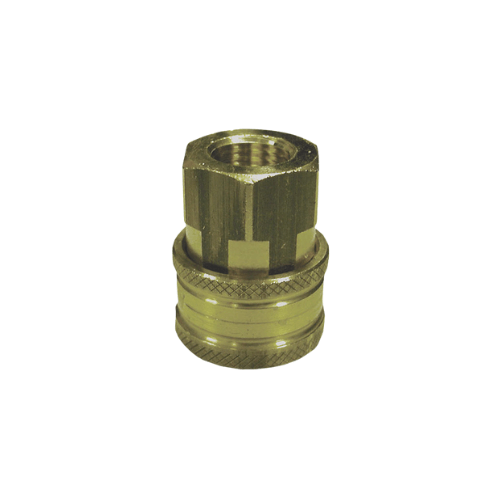

AR 5301 — 1/4 in Female Brass Quick Coupler | Tight-Seal QC is a 1/4-inch female
brass quick coupler engineered to deliver fast, repeatable snap connections and a tight,
leak-resistant seal for hoses, guns, and tools in demanding wash environments. By turning frequent
tool changes into a simple, repeatable motion that holds pressure without weeping, this coupler
helps pressure-wash setups run faster, cleaner, and more reliably.

On one side, the AR 5301 presents a precision quick-connect socket sized for standard 1/4-inch
plugs; on the other, its threaded base installs permanently or semi-permanently so the coupler can
serve as a tidy hub for lances, guns, hose whips, injectors, and accessories. Durable brass
construction provides corrosion-resistant performance in wet, detergent-rich environments and
tolerates frequent coupling cycles, while the compact silhouette keeps weight centered at the joint
to reduce leverage that can stress adjacent fittings and open drip paths.

5301 Key Features & Benefits

• 1/4-inch female QC socket: Standard quick-connect interface for common 1/4-inch plugs used on spray guns, lances, hoses, and accessories.
• Leak-resistant brass body: Corrosion-resistant brass stands up to detergents, rinse water, and weather while maintaining a tight seal under pressure.
• Compact, balanced form: Keeps weight close to the joint to reduce leverage on neighboring fittings and help maintain tidy hose routing.
• Smooth collar travel: Crisp engagement makes coupling and uncoupling intuitive even with wet gloves or limited visibility.
• Threaded base connection: Installs permanently or semi-permanently at common ports to consolidate adapters and shorten setups.
• Modular workflow friendly: Enables fast swaps between wands, surface cleaners, injectors, extensions, and nozzles without tools.

5301 | 1/4 in Female Brass Quick Coupler

Installation & Operation

Day-to-day use is straightforward. Thread the 1/4-inch female coupler onto the receiving port with
clean threads and the sealing method specified by the mating component, then bring it to a firm,
even seat so sealing faces compress uniformly. To attach a tool or hose, pull back the collar,
insert the 1/4-inch plug fully until it bottoms, and release to lock; a light tug verifies capture.
Bring the system to pressure and perform a quick visual check for a dry union. If you notice a
faint halo of moisture, depressurize, re-seat, and return to pressure.

Because the coupler consolidates a frequent conversion into one compact piece, it reduces joint
count, shortens setup time, and avoids long stacks of adapters that twist under vibration. That
stability translates into steadier standoff at the lance, better control of reaction forces, and
more uniform cleaning results on concrete, masonry, siding, vehicles, and equipment frames.

Best Practices & Maintenance

• Protect sealing surfaces: Cap open lines during transport, wipe the socket and incoming plug before coupling, and keep internal seals clear of grit.
• Avoid overloading: Do not use the coupler as a lifting point for heavy accessories—support tools with brackets or straps when stationary.
• Manage pressure & temperature: Allow fittings to cool and depressurize before disassembly; trapped pressure can make joints feel seized and encourage over-rotation.
• End-of-day flushing: Cycle clean water through the connection, rinse away detergents, and store the assembly dry to preserve sealing surfaces and speed the next inspection.
• Tidy routing: Route lines to avoid pinch points, sharp edges, or tight kinks that can stress fittings and create nuisance drips.

Troubleshooting

If moisture appears, first identify whether the weep is at the threaded side or at the socket.
Thread-side leaks usually trace to tired sealing media, debris on the seat, or insufficient torque.
Socket-side drips often mean the plug was not fully inserted, the collar did not return completely,
or the internal seal needs cleaning or replacement. Swapping in a known-good plug is a fast
diagnostic; replacing a worn seal in the socket typically restores a dry union.

5301 | 1/4 in Female Brass Quick Coupler

For shops and fleets, standardizing on a 1/4-inch QC path with brass couplers at common ports
simplifies bin labels, purchasing, and training, and keeps rigs modular so crews can reconfigure
lines quickly around vehicle bays, storefronts, patios, and equipment pads. The 5301’s compact form
suits tight spaces near reels, filters, and pump manifolds where tidy routing matters, and its
corrosion-resistant brass body holds up to routine rinses, detergents, and outdoor exposure.

Whether you are building a primary hose tree, outfitting a mobile cart for rapid accessory swaps,
or cleaning up a field repair that previously relied on improvised stacks, the AR 5301
1/4-inch Female Brass Quick Coupler provides a standards-based solution that respects the geometry
on both sides. By turning a frequent task—joining and separating components under wet, real-world
conditions—into a quick, confident motion with predictable sealing, it helps maintain momentum on
the job, reduces rework caused by nuisance drips, and focuses your pump’s energy where it belongs:
on the surface you are cleaning.
