RKA-F17 Series

Introduction

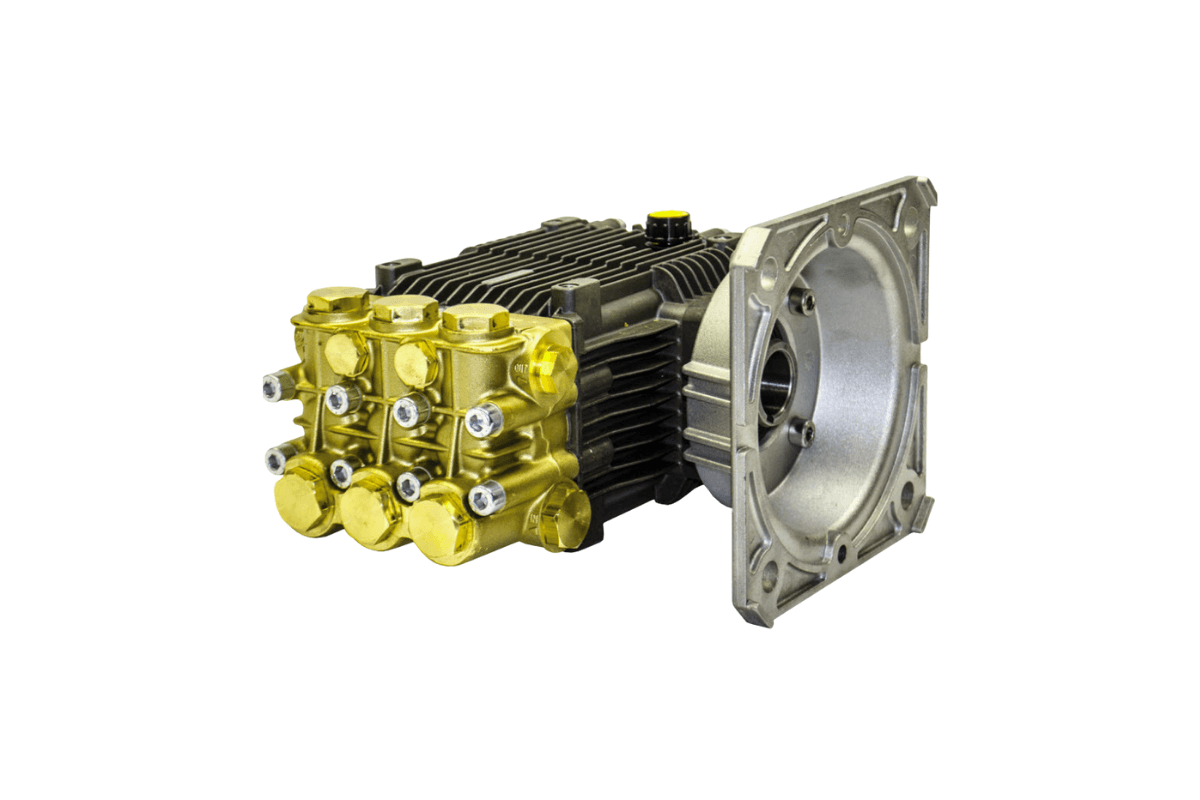

The RKA-F17 Series from AR North America is engineered for industrial cleaning systems powered by electric motors. Featuring a 1-1/8″ hollow shaft and a NEMA 182–184 frame flange, these pumps bolt directly to motors, eliminating the need for pulleys and belts. With nickel-plated brass heads, bronze connecting rods, and ceramic plungers, the RKA-F17 pumps are built for the most demanding stationary applications.

Key Models & Specs

• RKA35G30E-F17 — 3.5 GPM @ 3000 PSI, 1750 RPM
• RKA35G40HE-F17 — 3.5 GPM @ 4000 PSI, 1750 RPM
• RKA4G30E-F17 — 4.0 GPM @ 3000 PSI, 1750 RPM
• RKA4G40E-F17 — 4.0 GPM @ 4000 PSI, 1750 RPM
• RKA55G13E-F17 — 5.5 GPM @ 2000 PSI, 1750 RPM
• RKA7G20E-F17 — 7.1 GPM @ 2000 PSI, 1750 RPM

Shared Specifications

• Drive: Hollow shaft, 1-1/8″, NEMA 182–184 flange
• RPM: 1750 (low-speed for extended life)
• Max Temp: 140°F (upgradeable with high-temp kits)
• Oil Capacity: 15 oz
• Ports: ½″ F inlet / ⅜″ F discharge

Design Features

• Direct-Mount Design: Bolts directly to NEMA 182–184 electric motors.
• Nickel-Plated Brass Head: Corrosion and chemical resistant.
• High Flow Options: Up to 7.1 GPM for industrial-scale cleaning.
• Extreme Pressure Models: Up to 4000 PSI.
• Bronze Connecting Rods: Heavy-duty strength for long-term operation.
• Ceramic Plungers: Reduce friction and extend seal life.

Special Parts & Kits

• Viton Seal Kits (ø18–22 mm): $292.85 – $548.00
• High Temp Kits (Viton/Teflon): $535.59 – $998.15
• Single Cylinder Pistons (AR42149): $55.64
• Pump Oil (AR64516, 16 oz): $15.80

Repair Kits

• Valves (AR2864): $72.86
• Pistons (AR2546, AR2547, AR2759): $227.40 – $373.64
• Water Seals (AR1857, AR1887, AR1888): $136.00 – $548.00
• Oil Seals (AR1856): $62.76
• O-Rings (AR1829, AR1815): $10.73 – $18.41
• Support Rings (AR1816): $12.00

Applications

The RKA-F17 Series is designed for electric motor-driven cleaning systems that run long duty cycles in harsh environments. Common uses include:

• Industrial Wash Bays: Stationary systems for factories and plants.
• Fleet Washing Stations: Bus depots, trucking facilities, rental car centers.
• Food Processing Facilities: USDA-compliant systems (with Teflon kits).
• Heavy Equipment Cleaning: Permanent installations in shops and yards.
• Municipal Utilities: Stationary washdown and public works applications.

Why Choose the RKA-F17 Series?

• Direct Mount Convenience: Saves space and reduces complexity.
• Wide Range of Performance: Models from 3.5 GPM @ 4000 PSI up to 7.1 GPM @ 2000 PSI.
• Corrosion Resistance: Nickel-plated heads stand up to chemicals and tough water.
• Serviceability: Rebuild kits make maintenance straightforward and cost-effective.
• Industrial Reliability: Built for continuous-duty operation.

Conclusion

The AR RKA-F17 Series delivers industrial-grade performance in a direct-mount format for NEMA 182–184 electric motors. With models reaching 4000 PSI or up to 7.1 GPM, this series offers the flexibility to power everything from fleet wash systems to industrial wash bays.

 Available now at WSHPWR.com — the RKA-F17 Series is the ultimate choice for electric motor-driven industrial cleaning applications.
