The Honda GX390 is the standard engine on contractor-grade pressure washers, which makes Honda GX390 replacement pumps the most common thing people shop for. The good news is that the interface is well standardized. The bad news is that a few specs get misread constantly, and one of them will cook your new pump in a week.

What the GX390 requires

Four things have to match, and all four are non-negotiable:

• 1 inch hollow shaft. The pump slides onto the engine’s crankshaft. Not 3/4 inch, not 7/8 inch.
• SAE J609a mount. The standard bolt pattern for horizontal-shaft gas engines.
• Horizontal orientation. The GX390 is a horizontal-shaft engine. A vertical-mount pump will not fit anything.
• 3400 RPM rating. The pump runs at engine speed with no reduction. A 1450 RPM industrial pump bolted to this engine will destroy itself.

The engine sets the ceiling, not the pump

This is the part worth understanding before you shop, because it explains why two pumps with different numbers on the box can perform identically on your machine.

Power required at the pump shaft is GPM × PSI ÷ 1460. Run that for a 4 GPM, 4,000 PSI pump and you get about 11 brake horsepower. A GX390 is rated around 11.7 HP gross, and less than that continuously once you account for real-world derating.

So 4 GPM at 4,000 PSI is right at the top of what this engine can do. That is not a criticism of the pairing, it is why the pairing became the standard. It is also why a pump advertised at 4,400 PSI on a GX390 will not actually produce 4,400 PSI at full flow. The pump is capable of it; the engine is not. You will run it at a lower working pressure, which is fine and normal, but do not pay extra expecting a number the engine cannot deliver.

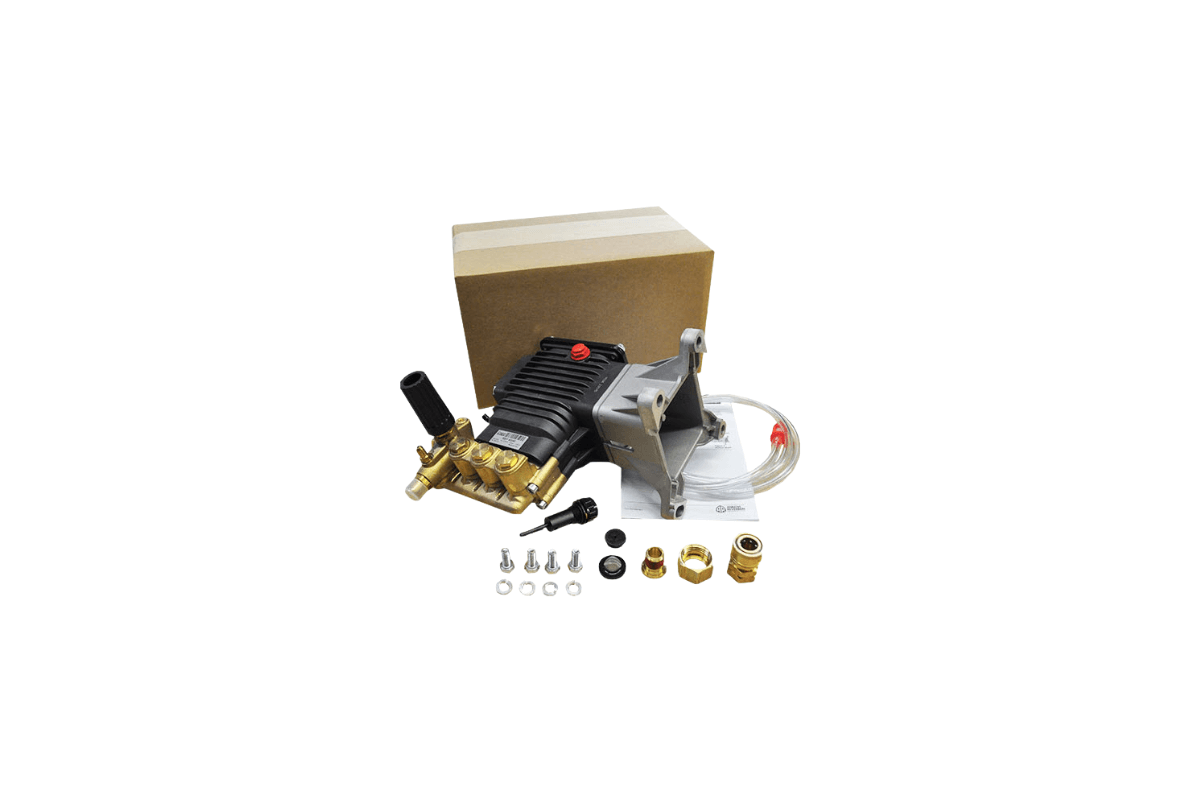

Honda GX390 replacement pumps that fit

All of them are 1 inch hollow shaft, SAE J609a, 3400 RPM, direct drive. The W4443 family lists Honda GX390 compatibility explicitly, which takes the guesswork out.

Hot water is a different pump

This is the spec that gets misread and it costs people pumps.

A standard pump’s maximum inlet temperature is around 140°F. That is not a hot water rating. It is a tolerance for warm supply water, the kind you get from a black tank sitting in the sun or a building’s hot tap.

An actual hot water system runs 180 to 195°F, and it needs a pump built for it: different seal material, different packing, sometimes different rods. The W4443WH carries 167°F seals and is labeled as a hot water pump for that reason.

Feed 180°F water into a 140°F pump and the seals go in short order. If you have a burner on your rig, buy the hot water version.

Tank feed or pressurized supply

Worth checking before you order. A pump plumbed for a pressurized garden hose supply and one plumbed for gravity feed from a buffer tank have different inlet arrangements. If you are running off a trailer tank, the tank feed version is the one you want. Getting this wrong means a pump that cavitates and a pump that starves.

Before you order

1. Confirm your shaft is 1 inch hollow. Pull the old pump and measure.
2. Confirm horizontal mount and count the bolt holes.
3. Decide hot or cold, honestly, based on whether you have a burner.
4. Decide pressurized supply or tank feed.
5. Note whether your current setup has its own unloader and chemical injector, or whether you need the pump to include them.

Making the new one last

Two habits account for most premature failures on direct-drive gas pumps.

Do not idle in bypass. With the trigger closed, water recirculates inside the pump and heats up fast. These pumps are small and there is not much water or metal to absorb it. If you are setting the gun down for more than a minute or two, shut the engine off.

Do not start it dry. Water first, trigger open with no nozzle until the stream is steady, then start the engine, then fit the nozzle. Plunger seals are water-lubricated and they glaze in under a minute without it.
