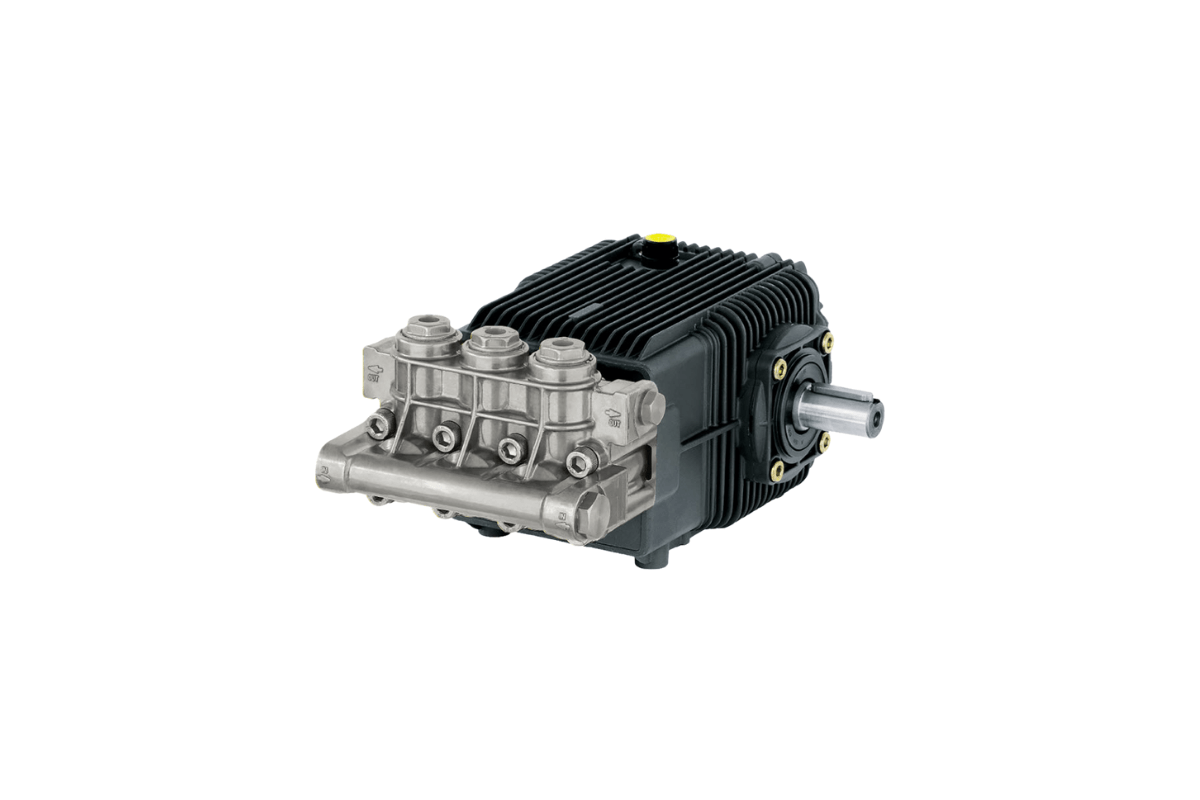

SHP Series – Ultra High-Pressure

When applications demand extreme pressure in a compact, durable package, the SHP Industrial Series is the answer. Designed to push water pressures up to an incredible 7,250 PSI, these pumps are purpose-built for the harshest industrial cleaning, cutting, and preparation environments.
The SHP is part of Annovi Reverberi’s industrial solid shaft family, combining nickel-plated brass manifolds with aluminum connecting rods, hardened solid shafts, and oversized bearings to ensure long-term durability under constant strain.

Performance Overview

SHP Series – Ultra High-Pressure: Key Benefits for Your Industry

Exploring the SHP Series – Ultra High-Pressure Applications in Industrial Settings

Advantages of the SHP Series – Ultra High-Pressure for Industrial Applications

SHP Series – Ultra High-Pressure: Revolutionizing Industrial Cleaning

SHP Series – Ultra High-Pressure Applications

Why the SHP Series – Ultra High-Pressure is Essential for Modern Industries

The SHP pumps occupy a unique space in the AR lineup: low to medium flow but extreme pressure. This makes them invaluable for tasks that require deep penetration, high-impact water jetting, or cutting-level performance.

• Flow Range: 15–22 L/min (4.0–5.8 GPM)
• Pressure Range: 7,250 PSI continuous rating
• RPM: 1450 for smooth, balanced operation
• Oil Capacity: 32 oz for long service intervals
• Construction: Nickel-plated brass head, ceramic plungers, stainless valves, aluminum connecting rods

Key Features

• Ultra High-Pressure Capability → Up to 7,250 PSI, ideal for heavy-duty cutting and stripping applications.
• Durable Nickel-Plated Brass Head → Superior corrosion resistance, longer life in chemical or humid environments.
• Compact Solid Shaft Design → 24mm shaft works well with pulley-driven or direct-coupled motor setups.
• Industrial Bearings & Crankcase → Built for continuous-duty cycles in demanding operations.
• Serviceable & Supported → Backed by a complete line of parts and repair kits for long-term investment value.
• Extended Duty Operation → Oversized oil capacity improves cooling and extends pump lifespan.

Models in the SHP Family

Exploring the SHP Series – Ultra High-Pressure: The Future of Industrial Efficiency

SHP1550HN – 3.96 GPM, 7,250 PSI, 1450 RPM, $2,573.16
 SHP2050HN – 5.3 GPM, 7,250 PSI, 1450 RPM, $2,573.16
 SHP2250HN – 5.8 GPM, 7,250 PSI, 1450 RPM, $2,573.16
Each model is engineered around the same pressure capacity, giving end users a choice between slightly higher flow or compact system design depending on their application.

Applications

The SHP Series is purpose-built for ultra high-pressure environments where typical industrial pumps cannot perform.

• Industrial Surface Preparation → Removes rust, paint, coatings, and scale without chemicals or abrasives.
• Concrete & Steel Cutting → Supports waterjet-assisted cutting operations with minimal kerf.
• Shipyards & Marine → Ideal for blasting hulls, stripping barnacles, and preparing steel surfaces.
• Oil & Gas → Pipeline cleaning, rig maintenance, hydrostatic testing.
• Mining & Heavy Industry → Equipment wash-down, scale removal, and rock surface prep.
• Municipal Infrastructure → High-pressure sewer jetting, bridge cleaning, and graffiti removal.
• Food & Beverage Plants → Precision cleaning in USDA-regulated facilities (when matched with food-safe lubricants).

Maintenance & Service
AR supports the SHP Series with a complete line of special parts and repair kits, ensuring pumps can be serviced and rebuilt multiple times over their lifecycle.

Special Parts & Kits:

• Rail Kits (1-1/4”, 2-1/2”, or U-bracket options) for stable mounting
• Oil (16 oz, AR64516) – recommended for lubrication maintenance

Repair Kits:

• Valves (AR2185) – $257.95
• Pistons (AR2548) – $261.53
• Water Seals (AR2784) – $200.96
• Oil Seals (AR2873) – $53.95
• Piston Guides (AR42120) – $160.68

Routine service helps keep SHP pumps operating at full output even in continuous daily duty cycles.

Benefits to Owners & Operators

• Maximum Cleaning Power → 7,250 PSI output obliterates dirt, coatings, and buildup.
• Built to Last → Nickel-plated brass head and stainless steel valves resist wear and corrosion.
• Lower Long-Term Costs → Serviceable design extends lifespan compared to disposable pumps.
• Flexible Setup → Compatible with pulley drives, belt systems, or direct-drive couplings.
• Operator Confidence → Backed by AR’s reputation for Italian engineering and global support.

Why the SHP Series – Ultra High-Pressure Stands Out

Why Choose the SHP?

The SHP Series is not for every job—it’s for the toughest jobs. If your application involves extreme pressure cleaning, cutting, or preparation, no mid-tier pump can compete. With decades of engineering behind it, the SHP is a proven performer trusted worldwide in heavy industry, shipyards, and infrastructure projects.

• Engineered for extreme PSI output – up to 7,250 PSI.
• Designed for precision tasks – cutting, stripping, blasting.
• Backed by re-buildability – ensuring years of dependable operation.
• Trusted by industry leaders – already in service in the toughest industrial sectors.

Conclusion

The AR SHP Industrial Series represents the pinnacle of high-pressure performance in a compact, serviceable package. For operations requiring precision cleaning, waterjet cutting, or heavy-duty surface preparation, the SHP provides unmatched power and reliability.

From municipal contracts to offshore rigs, steel plants to shipyards, these pumps are the backbone of high-pressure water-jetting worldwide. With SHP, you aren’t just buying a pump—you’re investing in industrial-grade performance that pays for itself in efficiency and uptime.

For additional industry standards and technical resources, visit:https://www.pumps.org/ and https://www.annovireverberi.it/en/industry/series194
