XTV4G10E Electric Pump | 4.0 GPM 1000 PSI 3400 RPM

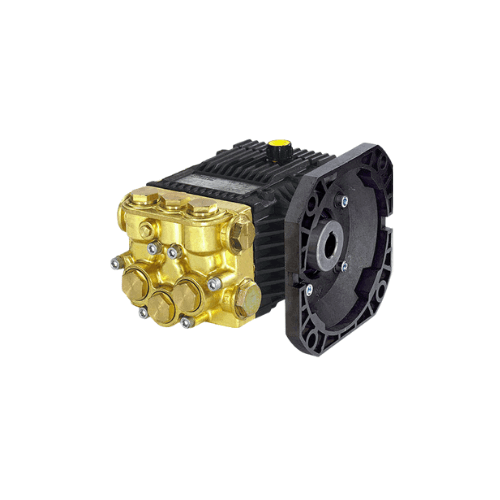

XTV4G10E-F8 Pressure Washer Pump

Key Specifications

• Flow Rate: 4.0 GPM
• Maximum Pressure: 1000 PSI
• Operating Speed: 3400 RPM
• Pump Type: Triplex ceramic plunger design
• Flange Type: F8 electric motor mount
• Manifold Material: Brass
• Plunger Material: Solid ceramic
• Valve Material: Stainless steel check valves
• Warranty: 5 years with nationwide support

What’s Included with the Pump

• Factory pre-filled crankcase oil for immediate startup
• Vented dipstick for proper crankcase ventilation
• Oil sight glass for accurate lubrication monitoring
• Operator’s manual with installation & maintenance instructions
• Parts schematic for easy service reference
• Secure packaging for safe transport

How the Pump Works

• Triplex plunger system: Three ceramic plungers deliver smooth, steady flow with reduced pulsation
• Vibration control: Reduced pulsation minimizes vibration and helps extend seal life
• Brass manifold: Corrosion-resistant manifold supports long service life
• Stainless steel valves: Consistent intake/discharge control for stable performance
• Oil-bath crankcase: Continuous lubrication reduces heat and internal wear
• F8 flange mount: Direct motor mounting for stable alignment and fast installation
• High-flow operation: 3400 RPM drive speed supports strong coverage with controlled pressure

Benefits of the XTV4G10E-F8

• Strong Flow Performance: 4.0 GPM for fast, even surface coverage
• Durable Build: Brass manifold, ceramic plungers, and stainless valves
• Balanced Pressure: 1000 PSI for effective yet surface-safe cleaning
• Smooth Operation: Triplex design reduces pulsation and vibration
• Easy Maintenance: Oil sight glass & vented dipstick simplify routine checks
• Quick Installation: F8 flange fits directly to compatible electric motors
• Long-Term Protection: Backed by a 5-year warranty

Typical Use Cases

• Residential cleaning: Driveways, patios, siding, decks, fences
• Vehicle washing: Cars, motorcycles, RVs, boats
• Light commercial cleaning: Walkways, storefronts, service equipment
• Industrial maintenance: Machinery, tools, workshop areas
• General outdoor upkeep: Mold, mildew, dirt, and stain removal

Why Choose Annovi Reverberi?

• Global pump engineering reputation focused on durability and efficiency
• Triplex plunger platform built for consistent output and long service life
• Premium construction materials for corrosion resistance and stability
• F8 motor-mount configuration supports clean, compact electric-drive builds
• 5-year warranty with nationwide support network

XTV4G10E Electric Pump | 4.0 GPM 1000 PSI 3400 RPM

• Product: Annovi Reverberi XTV4G10E-F8 pressure washer pump
• Output: 4.0 GPM, 1000 PSI, 3400 RPM
• Mounting: F8 flange electric motor mount for direct installation
• Construction: Brass manifold, solid ceramic plungers, stainless steel valves
• Maintenance: Oil sight glass and vented dipstick for quick service checks
• Best fit: Residential and light commercial cleaning requiring high flow with manageable pressure
• Support: 5-year warranty with nationwide service coverage
