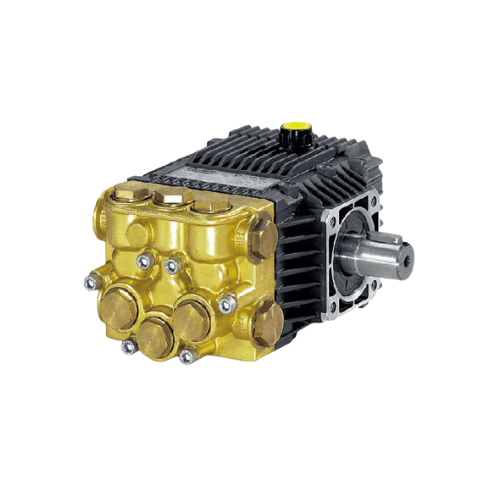

XMS1117N Compact Frame Pump | 3.0 GPM 2500 PSI

Overview

The Annovi Reverberi XMS1117N is an industrial-duty triplex plunger pump
engineered for continuous high-pressure washing, rinsing, and process cleaning.
Delivering approximately 3.0 GPM at 2,500 PSI (XM11.17 duty point), it
provides a strong, efficient jet of water while running at a relatively slow pump
speed for cooler operation and extended component life. Built on AR’s proven
XM/SXM series architecture, the XMS1117N combines a forged brass manifold,
solid ceramic plungers, and oversized bearings to deliver long-term reliability in
demanding commercial and light industrial environments.

• Industrial triplex plunger design for smooth, consistent high-pressure flow.
• Approximately 3.0 GPM (2.9 nominal) at 2,500 PSI duty point.
• Slow-speed operation for reduced heat, vibration, and wear.
• Ideal for pressure washer builds, upgrades, and OEM skid systems.

Performance and Construction

At the heart of the XMS1117N is AR’s high-efficiency triplex plunger design.
Three precision ceramic plungers work in sequence to produce steady pressure
with minimal pulsation, giving operators a predictable spray pattern and helping
protect downstream components such as hoses, guns, and rotary nozzles. The
pump is sized to hit the sweet spot between flow and pressure for demanding
cleaning tasks—strong enough to cut heavy soils, yet compact enough to fit in
tight equipment layouts.

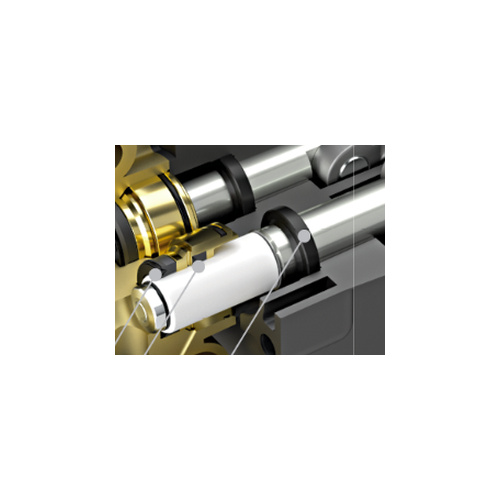

Triplex plunger architecture of XMS1117N

• Three-plunger layout reduces pressure ripple and provides smooth spray output.
• Solid ceramic plungers resist scoring and abrasion, extending seal and packing life.
• Positive alignment between crankshaft and plungers helps maintain even loading on all seals.
• Slow operating speed lowers oil temperature and mechanical stress for longer service intervals.

Durable wet-end components

• Forged brass manifold head provides strength, impact resistance, and low porosity for long life.
• Stainless steel valve assemblies (poppets, seats, springs) stand up to high pressure and frequent cycling.
• Ultra-Form style valve cages (XM/SXM series design) offer secure seating and extended valve life.
• High-pressure “V” style packings with low-pressure U-cup seals help maintain a tight seal under load.
• Generous inlet and discharge bosses allow robust plumbing with fewer stress points or leaks.

Drive End and Serviceability

The drive end of the XMS1117N is designed for long-term durability under
continuous-duty conditions. Oversized needle and ball bearings support the
crankshaft, while precision-machined connecting rods and pins distribute loads
evenly across the rotating assembly. A die-cast crankcase with large cooling
fins helps shed heat, and a bayonet-style sight glass makes routine oil checks
quick and clean.

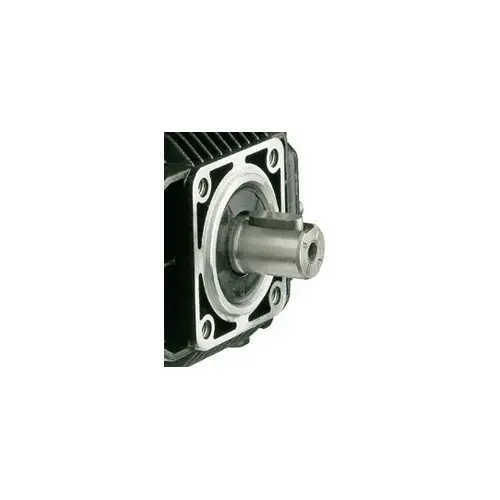

Drive-end features

• Die-cast aluminum crankcase with cooling fins for efficient heat dissipation.
• Oversized bearings on drive and non-drive sides for excellent load distribution.
• One-piece alloy connecting rods sized for strength and long service life.
• Forged, hardened crankshaft for high durability under continuous load.
• Oil bath lubrication with convenient sight glass for quick inspection.

System Integration

The XMS1117N is a strong choice for builders and OEMs who want a compact,
slow-speed industrial pump as the core of a high-pressure system. It can be
driven by electric motors or gas engines via belt, gearbox, or coupling, allowing
you to optimize pulley ratios and motor sizing for your application. With its
balanced 3 GPM / 2,500 PSI performance, it pairs well with a range of nozzles,
hose lengths, and accessories commonly used in professional cleaning.

Integration advantages

• Suitable for belt-drive or gearbox-drive systems with electric or gas power.
• Compatible with industrial hose reels, guns, lances, and rotating nozzles.
• Well-matched to medium-duty unloader valves, regulators, and safety relief valves.
• Compact footprint that fits easily into custom skids, trailers, or wall-mount frames.

Typical Applications

With its industrial construction and balanced duty point, the XMS1117N is
appropriate for a wide range of commercial and light industrial jobs where
reliability and uptime matter more than maximum peak pressure.

• Fleet and equipment washing for small truck yards and delivery vehicles.
• Building maintenance, concrete pad cleaning, and general exterior washdown.
• Agricultural wash bays for tractors, implements, and livestock facilities.
• Small manufacturing plants, fabrication shops, and maintenance departments.
• Mobile pressure washing rigs and contractor trailer builds.

Key Specifications – XMS1117N

• Series: AR XM/SXM industrial triplex plunger family.
• Flow: approx. 3.0 GPM (2.9 nominal).
• Pressure: up to 2,500 PSI.
• Pump type: triplex ceramic plunger pump, oil-bath lubrication.
• Head material: forged brass manifold.
• Plungers: solid ceramic for maximum wear resistance.
• Valves: stainless steel assemblies in Ultra-Form style cages.
• Recommended fluid: clean, filtered water; use appropriate additives only as approved by AR.
