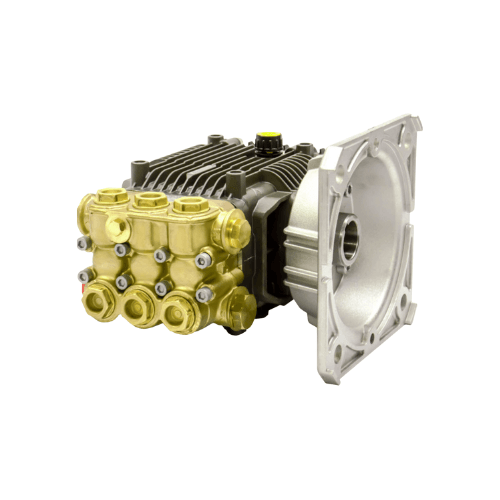

XMA35G25E-F17 Triplex Pump | 3.5 GPM 2500 PSI 1750 RPM

XMA35G25E-F17 — Triplex Plunger Pump, 3.5 GPM, 2,500 PSI, 1,750 RPM

The Annovi Reverberi XMA35G25E-F17 is a high-performance triplex plunger pump engineered for
reliable cleaning in residential and light commercial applications. Delivering
3.5 GPM at up to 2,500 PSI, it provides the right balance of power and efficiency for removing
dirt, grime, and stains from vehicles, equipment, and outdoor surfaces.

Designed around an F17 motor flange, the XMA35G25E-F17 couples directly to NEMA
182–184 electric motors via a 1-1/8″ hollow keyway shaft, ensuring secure power
transfer and clean alignment. Running at a steady 1,750 RPM, the pump minimizes wear on internal
components, extending service life and reducing maintenance needs over time.

Key Specifications

• Flow Rate: 3.5 GPM (gallons per minute)
• Maximum Pressure: 2,500 PSI
• Operating Speed: 1,750 RPM (low-speed for reduced wear)
• Pump Type: Industrial-duty triplex plunger pump
• Mounting Flange: F17, compatible with NEMA 182–184 electric motors
• Shaft: 1-1/8″ hollow keyed shaft
• Manifold: Brass for strength and corrosion resistance
• Plungers: Ceramic plungers for long seal life and reduced wear
• Valves: Stainless-steel valves for precise flow control and durability
• Warranty: 5-year manufacturer’s warranty

What’s Included

• Factory pre-filled crankcase (break-in oil) for immediate startup
• Vented dipstick for easy oil-level monitoring and crankcase ventilation
• Oil sight glass for quick visual lubrication checks
• Operator’s manual with installation, operation, and maintenance instructions
• Parts breakdown schematic for service and replacement reference
• Bolts and fasteners for secure installation to your system
• Full 5-year manufacturer’s warranty for long-term protection

How the XMA35G25E-F17 Works

• A triplex plunger design uses three ceramic plungers cycling in sequence to provide steady
  high-pressure flow with reduced pulsation.
• The F17 flange ensures direct, efficient coupling to NEMA 182–184 class electric motors,
  while the 1-1/8″ hollow shaft provides a secure keyed connection.
• Operating at 1,750 RPM, the pump balances cleaning power with smooth, low-vibration
  performance, helping reduce strain on seals, bearings, and drive components.
• The brass manifold resists corrosion, while stainless-steel valves maintain
  consistent water flow and pressure under demanding conditions.

Benefits & Advantages

• Reliable cleaning power: 3.5 GPM at 2,500 PSI for strong, steady results.
• Durable construction: Brass manifold, stainless valves, and ceramic plungers support long
  service life.
• Efficient operation: 1,750 RPM low-speed profile reduces heat, wear, and maintenance
  frequency.
• Easy integration: F17 NEMA 182–184 motor flange and 1-1/8″ hollow shaft simplify
  installation.
• Simple maintenance: Oil sight glass and vented dipstick make daily checks quick and visual.
• Professional support: Backed by a 5-year warranty and full documentation for installers and
  service techs.

Typical Applications

• Vehicle cleaning: Cars, trucks, RVs, motorcycles, boats, and marine equipment.
• Outdoor surfaces: Driveways, patios, decks, walkways, fences, and siding.
• Equipment maintenance: Lawn tools, shop machinery, and light construction gear.
• Commercial property care: Light-duty facility and grounds maintenance.
• General residential use: Keeping home exteriors and outdoor furniture clean year-round.

Why Choose the XMA35G25E-F17?

• Balanced performance: 3.5 GPM at 2,500 PSI delivers strong cleaning without excessive
  aggressiveness.
• Direct motor coupling: F17 flange compatibility with NEMA 182–184 motors simplifies
  alignment and setup.
• Long-term value: Low-RPM operation and premium materials extend pump lifespan.
• Versatile use: Suitable for both residential users and light commercial operators.
• Backed by AR: Supported by Annovi Reverberi’s 5-year warranty and service infrastructure.
• The Annovi Reverberi XMA35G25E-F17 triplex plunger pump delivers
  3.5 GPM at 2,500 PSI with 1,750 RPM operation, a
  1-1/8″ hollow shaft, and an F17 flange compatible with NEMA 182–184
  electric motors.
• Built with a brass manifold, ceramic plungers, and
  stainless-steel valves, and backed by a 5-year warranty, it is ideal for
  residential, light commercial, and equipment cleaning systems that demand durability, easy maintenance, and
  consistent professional-grade performance.
