W4443WHT 4060 PSI Hot Water Tank Feed Pump GX390

W4443WHT | Bertolini 4060 PSI 4.3 GPM Hot Water Tank Feed Pump with Built-In Unloader, 167°F Rated

W4443WHT is the hot water W4443WH built for tank feed, rated 4.3 GPM at 4,060 PSI at 3450 RPM for inlet water up to 167°F, with a 190°F-rated bypass regulator and adjustable injector built into the pump head and the King full-flow inlet adapter installed. The W4443WHT goes straight onto a trailer or skid fed from a hot water tank.

Why 4,060 PSI: in hot water duty the W4443WHT carries Bertolini’s catalog rating of 4,060 PSI (280 bar), which allows for the extra thermal stress hot water puts on seals and internal parts. The 4,400 PSI rating applies to the cold water versions only. The pump is made in Reggio Emilia, Italy, where Bertolini has built pumps since 1918.

Hot Water Packings, 190°F Bypass and Tank Feed

Standard pumps, including the cold water W4443, are rated for inlet water up to 140°F. Above that, cold water packings soften, wear fast and can let water into the oil. The W4443WHT is built with a hot water packing system, Sintek NBR U packings in front and Inox U packings in the rear, rated for sustained inlet water up to 167°F (75°C). The bypass regulator is machined into the forged brass head and rated to 190°F on its own, a 23 degree margin above the hottest inlet water the pump sees, so the bypass handles hot recirculating water without cooking. An adjustable downstream injector is built in as well. The King tank-feed adapter, a 1/2 in. male NPT by 1-1/4 in. plated steel hose barb with a smooth tapered bore, lets the pump draw freely from a hot water tank through a 1-1/4 in. non-collapsible hose.

Which W4443 Do You Need?

Every cold water version is rated 4,400 PSI. Choose the one built for your machine:

• Bare pump: no unloader. For shops that reuse their own unloader and plumbing.
• W, WS and WP versions: built-in unloader and injector, with standard, quick connect socket or quick connect plug outlet.
• VRT, VP and VPI versions: plumbed with an external VRT unloader, a quick connect plug outlet on the VP and VPI, and an injector on the VPI.
• DLX and VPDLX versions: deluxe builds with a double-loop external bypass and a clear view inlet filter.
• T, WT, WST, WPT, VRTT and PIT versions: tank and gravity feed versions with the King full-flow inlet adapter.
• H, WH, HT and WHT versions (WHT is this page): hot water versions with 167°F seals, rated 4,060 PSI.

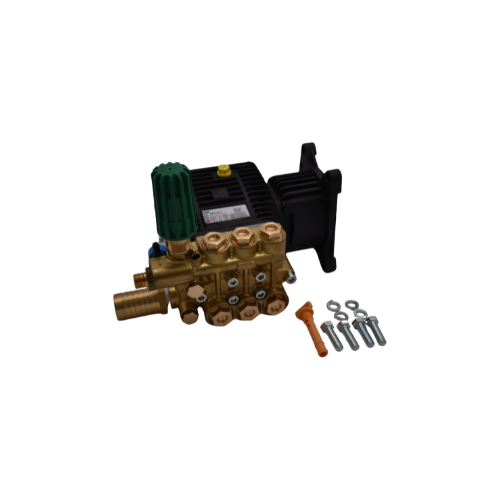

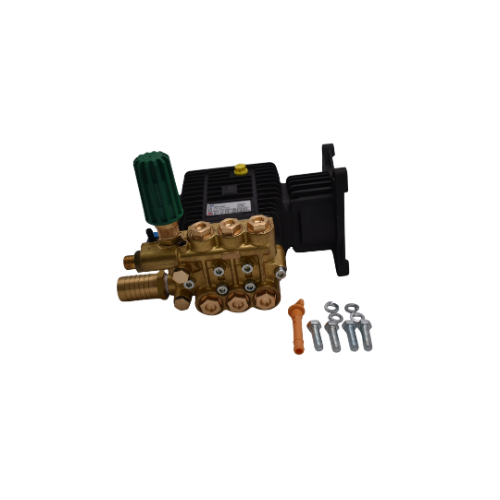

What’s in the Box

• W4443WHT pump with hot water packings, built-in 190°F bypass regulator and adjustable injector, fully assembled
• King tank-feed inlet adapter, 1/2 in. M NPT by 1-1/4 in. hose barb, installed
• SAE J609 1 in. flange mounting bolts and lock washers
• Crankcase filled with Bertolini’s SynPower 75W-90 break-in oil
• Vented dipstick. Install it before the first start. Never run the pump without it.
• 7-year Bertolini warranty

Will It Fit My Machine?

It is a direct replacement for the pump on:

• Simpson SuperPro Roll-Cage SRC4440112
• BE Power Equipment B4415PCS
• Pressure-Pro E4040HA, E4042HV and SLPVV4G42-400
• Machines running Annovi Reverberi RKV4G36, RKV4G40 or RRV4G40 pumps

It fits any direct-drive pressure washer with a 1 in. horizontal engine shaft and SAE J609 mounting face, on a 389cc to 420cc engine (GX390 class).

Not sure the W4443WHT fits? Text a pump specialist at (505) 226-6061 with a photo of your machine’s tag and we’ll confirm.

What Makes a Bertolini Different

• LowStressthread valve caps: the O-ring seals ahead of the thread, so pressure water never reaches it. The caps don’t loosen, need 40% less torque and put 60% less stress on the head.
• Lifetime oil: change the break-in oil once at 50 to 100 hours to standard 75W-90 gear oil, and that fill lasts the life of the pump.
• Built heavy: thick forged brass head, AISI 316 stainless check valves, solid ceramic plungers on nitrided stainless plunger rods, one-piece bronze connecting rods, oversized bearings and an extended forged steel crankshaft.

Common Questions

• Do I need a separate unloader? No. On the W4443WHT the bypass regulator is built into the pump head and rated to 190°F.
• What hose should I use on the inlet? A 1-1/4 in. non-collapsible hose rated for your water temperature, so it holds its shape as the W4443WHT draws hot water.
• What hot water does the W4443WHT handle? Sustained inlet water up to 167°F (75°C).

W4443WHT Specifications

• Model: W4443WHT (Bertolini WMG-W series, hot water)
• Flow: 4.3 GPM at 3450 RPM
• Max Pressure: 4,060 PSI (280 bar), hot water rating
• Unloader: Built in, rated 190°F
• Injector: Built in, adjustable
• Inlet: King tank-feed adapter, 1-1/4 in. hose barb
• Shaft: 1 in. hollow
• Mount: SAE J609 1 in.
• Engine: 389cc to 420cc, GX390 class
• Plungers: Solid ceramic, 15 mm
• Connecting Rods: Bronze, one-piece
• Check Valves: AISI 316 stainless steel
• Oil: 0.6 L SAE 75W-90
• Max Inlet Water Temperature: 167°F (75°C)
• Packings: Hot water, Sintek NBR U front, Inox U rear
• Weight: 20 lbs
• Warranty: 7 years
• Brand: Bertolini, made in Italy

Shipping: Ships the same day when ordered by 3 PM EST on business days. Need it faster? Text (505) 226-6061 for expedited air freight options.
