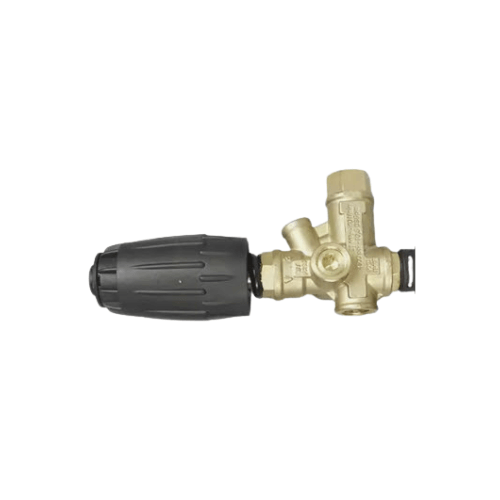

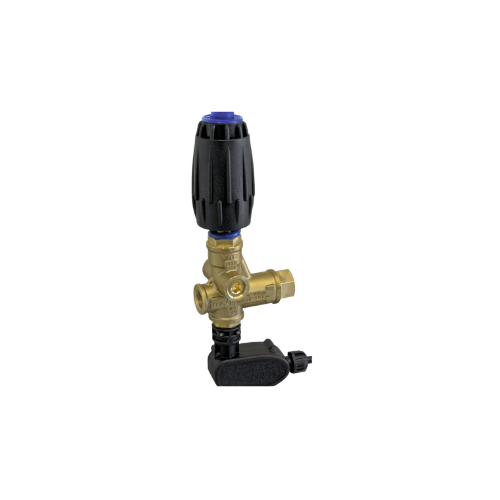

VRT3-250PS6A | 3700 PSI 27M Unloader Valve less PS2 Port Option

VRT3-250PS6A | 3700 PSI 27M Unloader Valve less PS2 Port Option

The VRT3-250PS6A unloader valve delivers the same heavy-duty 250 bar (approximately 3,625–3,700 PSI) pressure regulation and rugged 27M porting as the PS6 series, but without the integrated pressure switch. This streamlined version is ideal for builds already using upstream safety monitoring or for systems that prefer a simplified hydraulic layout with fewer components and leak points. Tuned for stable regulation under varying flow and load, its optimized internal flow path reduces cavitation risk and pump chatter. When the spray trigger is released, the valve instantly diverts flow to bypass, limiting heat and protecting pumps, hoses, guns, and accessories from damaging pressure spikes.

What This Means for Your Rig

If your rig relies on external controls, PLCs, or panel-based interlocks, the VRT3-250PS6A PS6A keeps your plumbing lean and reliable while preserving premium control and feel. With fewer fittings and electrical connections, installs are quicker, maintenance is simplified, and failure points are significantly reduced—ideal for contractor fleets, OEM platforms, and industrial wash bays.

Performance Specs VRT3-250PS6A (Quick Reference)

• Max Pressure: 250 bar (approximately 3,625–3,700 PSI)
• Max Flow: up to 10.5 GPM (typical VRT3 capacity)
• Temperature: up to 194°F (90°C); confirm seal set for hot chemical applications
• Connections: 27M ports for robust, professional-grade integration

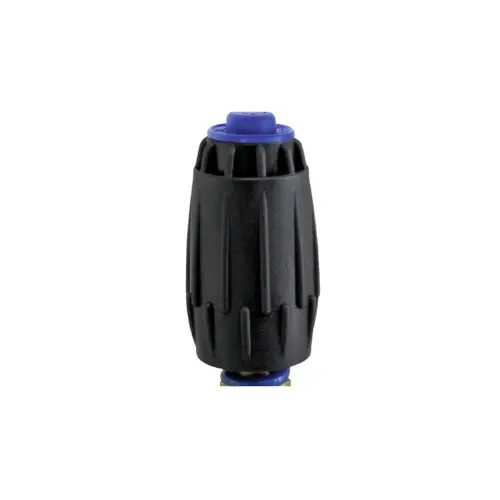

• Control: adjustable internal regulation for precise pressure management
• Typical Use: trapped-pressure unloader for commercial hot or cold-water systems with external safety instrumentation

Build and Materials VRT3-250PS6A (Made to Last)

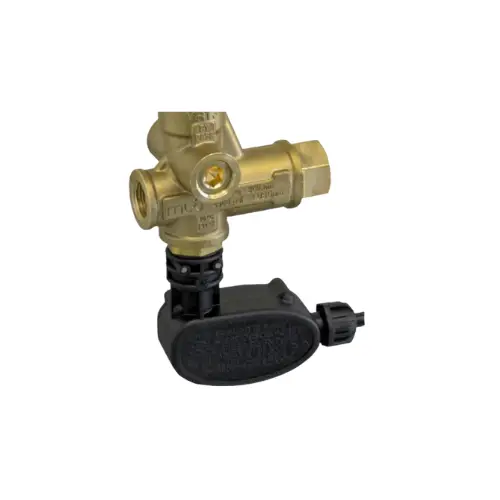

A reinforced VRT3 body paired with a precision valve stack provides long service life even in demanding duty cycles. The metal threaded connections ensure consistent torque and leak-resistant sealing. Its compact footprint fits skids, enclosed carts, wall-mounted bays, and space-limited OEM cabinets. With no integrated pressure switch, the PS6A eliminates extra tees and electrical junctions—reducing install time and minimizing potential leak paths.

Benefits and Differentiators (Why Choose This Model)

• Streamlined configuration: same regulation performance without the integrated pressure switch
• Fewer failure points: reduced wiring and fittings for faster installs and easier servicing
• Stable output: maintains pressure across changing tips, lances, and long hose runs
• Smooth bypass action: reduces oscillations, water hammer, and heat during trigger cycling
• Fleet-friendly: uses standard VRT3 wear parts and common service procedures
• Cost-efficient: includes the control functionality you need without paying for monitoring you don’t use

Industries and Applications

• Contractor rigs with external controls or panel-based interlocks
• OEM platforms with pressure monitoring elsewhere in the system
• Industrial wash bays with existing safety instrumentation
• Municipal and public works equipment washdown
• Construction and rental yard heavy equipment cleaning
• Agricultural and food-sector washdown (with verified chemical compatibility)

Compatibility and Fit

Plumbing and Orientation

• Install downstream of the pump and upstream of hose or reel.
• Return bypass line to tank when system requires recirculation.
• Use high-pressure-rated thread sealants and verify torque on metal fittings.

Porting

• Supplied with professional-grade 27M connections.
• If adapting to other thread standards, use rated fittings and confirm sealing surfaces and flow path integrity.

Power Pairing

• Ideal for triplex pumps delivering up to 10.5 GPM in the 3,600–3,700 PSI range.
• Use with: thermal relief valve, inlet filter, regulator and pressure gauge, and burst-rated hose/wand assemblies.

Nozzle and Orifice Guidance

• Select a spray tip orifice that matches pump GPM at the target PSI.
• Adjust pressure only with water flowing and trigger open.
• Turbo nozzles may create brief spikes—ensure all components exceed system PSI rating with margin.

Setup, Service, and Reliability

• Prime with clean water, purge air, and confirm supply before startup.
• Adjust pressure with trigger open to avoid false readings and over-pressure conditions.
• Inspect inlet screens and monitor for chatter or creeping pressure indicating wear.
• Service according to VRT3 wear part schedule for optimal reliability.
• Maintain proper temperature, chemical compatibility, and water quality to extend seal life.

VRT3-250PS6A | 3700 PSI 27M Unloader Valve less PS2 Port Option

• VRT3-250PS6A unloader valve (no integrated pressure switch)
• 27M connections supplied for professional integration
• Basic installation and setup guidance
