VRT3-250-R | 3700 PSI 27M Unloader Valve Blue Spring Head Kit

VRT3-250-R – Unloader Valve – 3,625–3,700 PSI – Up to 10.5 GPM

Overview

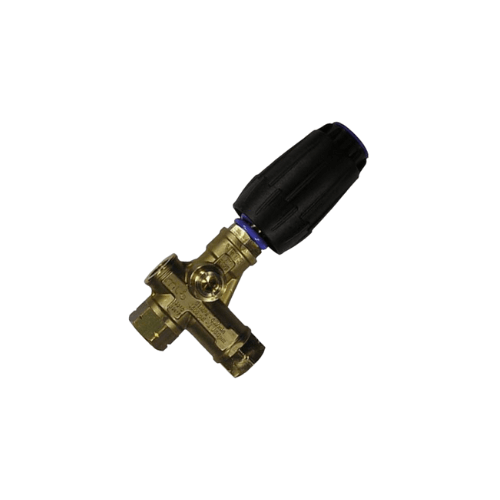

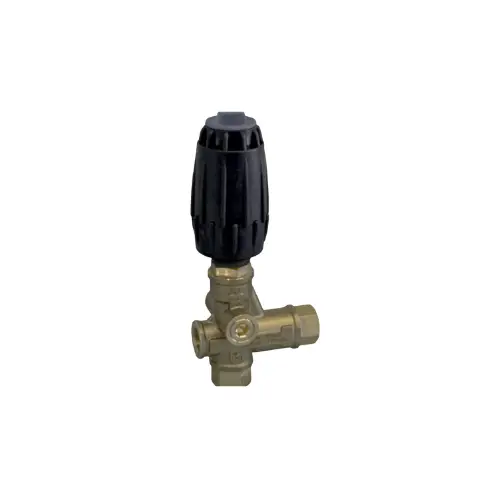

The VRT3-250-R unloader valve is a professional, retail-packaged VRT3 variant engineered to
regulate and protect systems operating in the 250 bar class (≈ 3,625–3,700 PSI) at flows up to
10.5 GPM. Tuned with a blue spring for higher-pressure regulation, it automatically diverts flow
to bypass the instant the spray trigger is released, preventing dangerous spikes and protecting pumps, hoses,
guns, and accessories. The rugged housing and durable internals deliver consistent performance under frequent
use, while the retail-ready presentation makes this model convenient for resellers, service counters, and end
users who need a dependable, easy-to-install solution.

What This Means for Your Rig

• Helps crews maintain stable working pressure across long hose runs, changing tools, and daily duty cycles.
• Smooth transitions on and off the trigger reduce heat buildup and water hammer, extending seal life and
  reducing avoidable downtime.
• Retail-ready packaging speeds identification and installation at service counters and parts departments.
• Ideal for contractors, service shops, and facility teams that need fast turnaround and predictable performance.

Performance Specs (Quick Reference)

• Max Pressure: 250 bar (≈ 3,625–3,700 PSI)
• Max Flow: up to 10.5 GPM
• Temperature: up to 194 °F (90 °C) typical for VRT3 class; confirm seal set for hot chemical use
• Ports: standard VRT3 layout; commonly 3/8 in FNPT inlet, outlet, and bypass
  (verify supplied configuration)
• Spring & Control: blue spring with adjustable regulation for higher-pressure systems
• Typical Use: trapped-pressure unloader for commercial cold or hot-water pressure washers

Build & Materials (Made to Last)

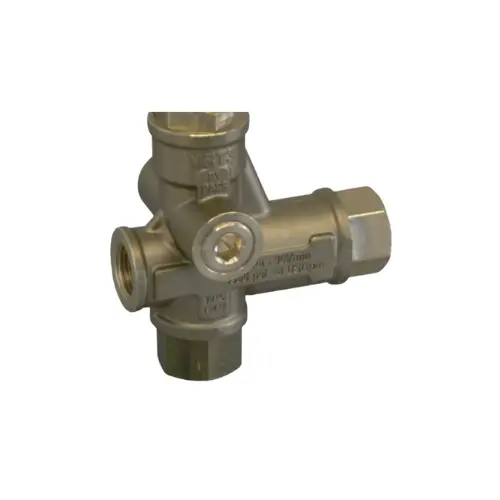

• Reinforced body and precision valve stack designed for long service life in harsh environments.
• Metal threaded connections support repeatable torque and leak-resistant sealing.
• Standardized port locations simplify plumbing with gauge tees, hose reels, and return-to-tank layouts.

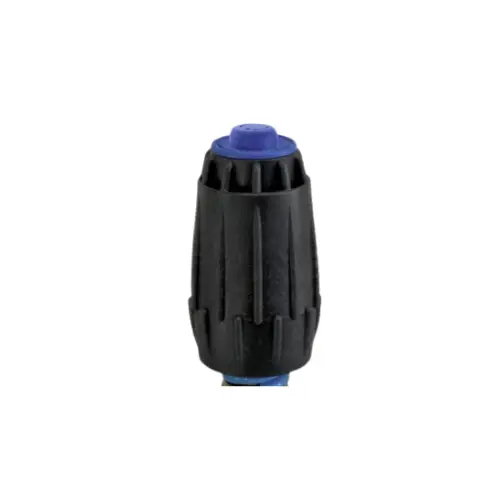

• Ergonomic adjustment interface provides smooth, incremental control for precise pressure tuning.
• Common VRT3 wear parts keep preventive maintenance predictable and affordable.

Benefits & Differentiators (Why Choose This Model)

• Heavy-duty pressure class: blue spring stability near 250 bar for consistent cleaning power.
• Smooth bypass behavior: reduces water hammer, heat buildup, and seal wear when the trigger cycles.
• Retail-ready kit: clear, counter-friendly packaging simplifies service, stocking, and resale.
• Service friendly: shared VRT3 wear parts and familiar repair practices across fleets and OEM builds.
• Flexible plumbing: multiple port options support clean routing and standardized system layouts.
• Proven platform: widely adopted by OEMs, fleets, and professional contractors for reliability and uptime.

Industries & Applications

• Contractor cleaning systems and mobile wash fleets.
• Commercial pressure washers and facility maintenance crews.
• Industrial wash bays and manufacturing plants.
• Municipal and public works equipment washdown.
• Construction and rental yards for heavy equipment cleaning.
• Agriculture and food equipment washdown (where chemical compatibility is verified).

Compatibility & Fit (Mounting, Plumbing, Nozzles)

• Plumbing & orientation: install downstream of the pump and upstream of hose or reel. Route
  bypass back to tank when your system requires recirculation. Use thread sealants approved for high-pressure
  water service and verify torque on metal fittings.
• Porting: standard VRT3 assemblies are commonly 3/8 in FNPT for inlet, outlet, and bypass.
  If your VRT3-250-R comes with specific adapters, match thread types and sealing surfaces accordingly.
• Power pairing: ideal for triplex pumps delivering up to 10.5 GPM in the 3,600–3,700 PSI range on
  gas-engine or electric builds. Include a thermal relief valve, inlet filtration, regulator and gauge, and
  burst-rated hose and wand assemblies.
• Nozzle & orifice guidance:
  • Select a spray tip orifice that matches pump GPM at target PSI; correct orifice is essential for stable
    pressure and unloader performance.
  • With water flowing (trigger open), adjust to reach working pressure, then secure the setting per your SOP.
  • Turbo nozzles can create momentary spikes; ensure every component, including the unloader, is rated at or
    above system pressure with margin.

Setup, Service & Reliability

• Prime with clean water, purge air, and confirm supply before first start.
• Adjust pressure only with the trigger pulled to avoid false readings and over-pressure events.
• Inspect inlet screens regularly, and monitor for chatter or creeping pressure as indicators of wear or contamination.
• Service using the appropriate VRT3 wear parts on a preventive schedule to maintain performance.
• Keep temperature, chemical exposure, and water quality within manufacturer limits to maximize seal life and efficiency.

What’s Included

• VRT3-250-R unloader valve with blue spring in retail-ready packaging.
• Standard VRT3 porting (verify included adapters if any in your kit).
• Basic installation and setup guidance.
