VRT3-250-PA | 3700 PSI Unloader Kit Pump Assembly Service Kit

VRT3-250-PA | 3700 PSI Unloader Kit Pump Assembly Service Kit

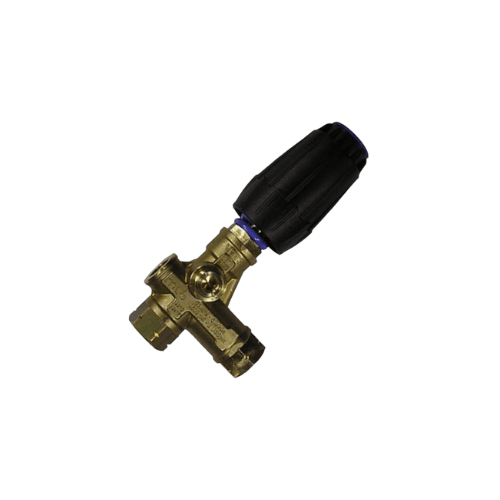

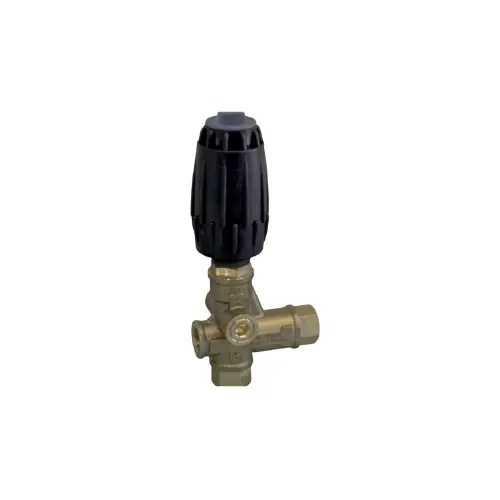

The VRT3-250-PA unloader kit is a professional pressure-washer regulation package built on the trusted VRT3 design for systems operating in the 250-bar class (about 3,625–3,700 PSI) at flows up to 10.5 GPM. When the spray trigger is released, the valve automatically diverts flow to bypass, protecting the pump and plumbing from pressure spikes, heat buildup, and water hammer. With rugged construction and precision seals, the VRT3-250-PA delivers smooth, repeatable pressure control that keeps contractor and commercial machines running reliably shift after shift.

What This Means for Your Rig

If uptime matters, the unloader is the backbone of safety and performance. The VRT3-250-PA stabilizes working pressure across long hose runs and changing tools, helping operators clean faster with less chatter and drift. The kit format streamlines installation for upgrades and replacements, reducing downtime for service centers and field techs.

Performance Specs (Quick Reference)

• Max pressure: 250 bar (about 3,625–3,700 PSI)
• Max flow: up to 10.5 GPM
• Temperature: up to 194°F (90°C) typical for VRT3 class; confirm seal set for hot chemical use
• Ports: standard VRT3 layout commonly 3/8″ FNPT inlet, outlet, and bypass (verify kit configuration)
• Control: adjustable pressure via internal spring and ergonomic adjustment architecture
• Typical use: trapped-pressure unloader for commercial cold or hot-water systems

Build and What Is in the Package

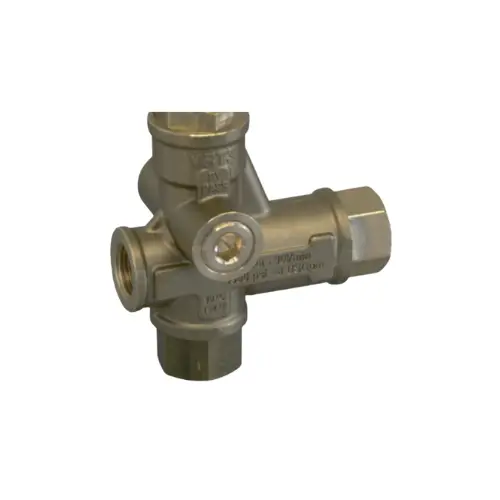

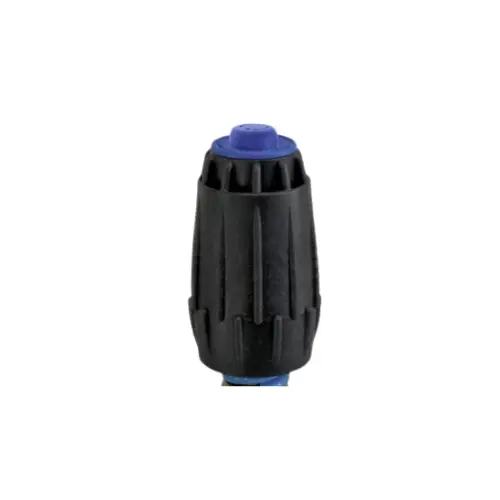

The reinforced body and valve assembly are engineered for long service life in high-demand environments. Standardized port locations simplify plumbing, allowing clean runs to gauges, reels, and return-to-tank lines. The ergonomic adjustment interface supports fine, incremental pressure changes, while common VRT3 wear parts make preventive maintenance straightforward. The retail-ready kit presentation keeps small components organized so techs can complete installs quickly and consistently.

Benefits and Differentiators

• Heavy-duty pressure class: stable regulation near 250 bar for consistent cleaning power
• Smooth bypass behavior: reduces pressure spikes, heat, and seal wear during trigger cycling
• Faster service: kit format speeds counter sales and field installation
• Predictable maintenance: VRT3 family wear parts and familiar repair practices
• Flexible plumbing: multiple port options support neat, standardized builds
• Proven platform used by OEMs, fleets, and professional contractors

Industries and Applications

• Contractor cleaning systems and mobile wash fleets
• Commercial facility washers and maintenance crews
• Industrial wash bays and manufacturing plants
• Municipal and public works washdown equipment
• Construction and rental yard equipment cleaning
• Agriculture and food equipment washdown (confirm chemical compatibility)

Compatibility and Fit

Plumbing and Orientation

• Install downstream of the pump and upstream of hose or reel.
• Route bypass back to tank when your system requires recirculation.
• Use high-pressure-rated thread sealants and verify fitting torque.

Porting

• Standard VRT3 assemblies typically include 3/8″ FNPT inlet, outlet, and bypass ports.
• If adapters are included in your kit, match threads and sealing surfaces carefully.

Power Pairing

• Ideal for triplex pumps delivering up to 10.5 GPM in the 3,600–3,700 PSI class.
• Use with thermal relief valve, inlet filtration, regulator and gauge, and burst-rated hoses.

Nozzle & Orifice Guidance

• Select a spray tip orifice that matches pump GPM at the target PSI.
• Adjust pressure only with the trigger pulled to ensure accurate readings.
• Turbo nozzles can create spikes—ensure all components exceed system PSI rating.

Recommended Accessories

• High-pressure hose rated above system PSI
• Thermal relief valve
• Inlet filter or screen
• Pressure gauge tee for accurate diagnostics

Setup, Service, and Reliability

• Prime with clean water and purge air before first start.
• Adjust pressure only with trigger open to avoid over-pressure events.
• Inspect inlet screens regularly.
• Monitor for chatter or creeping pressure as signs of wear.
• Service using VRT3-compatible wear parts on a preventive schedule.
• Keep temperature, chemicals, and water quality within manufacturer limits.

VRT3-250-PA | 3700 PSI Unloader Kit Pump Assembly Service Kit

• VRT3-250-PA unloader valve (adjustable, high-pressure spring class)
• Retail kit packaging for service providers and resellers
• Basic installation and setup guidance
